140
Other HFU Functions Section 5-2
Temperature Controller Error
The Temperature Controller Error output will turn ON when any bit between
bit 0 and bit 13 is ON in the Device A Status. It can be used to output EJ1
error status. Refer Status Lists on page 209 for details on Device A Status.
Example

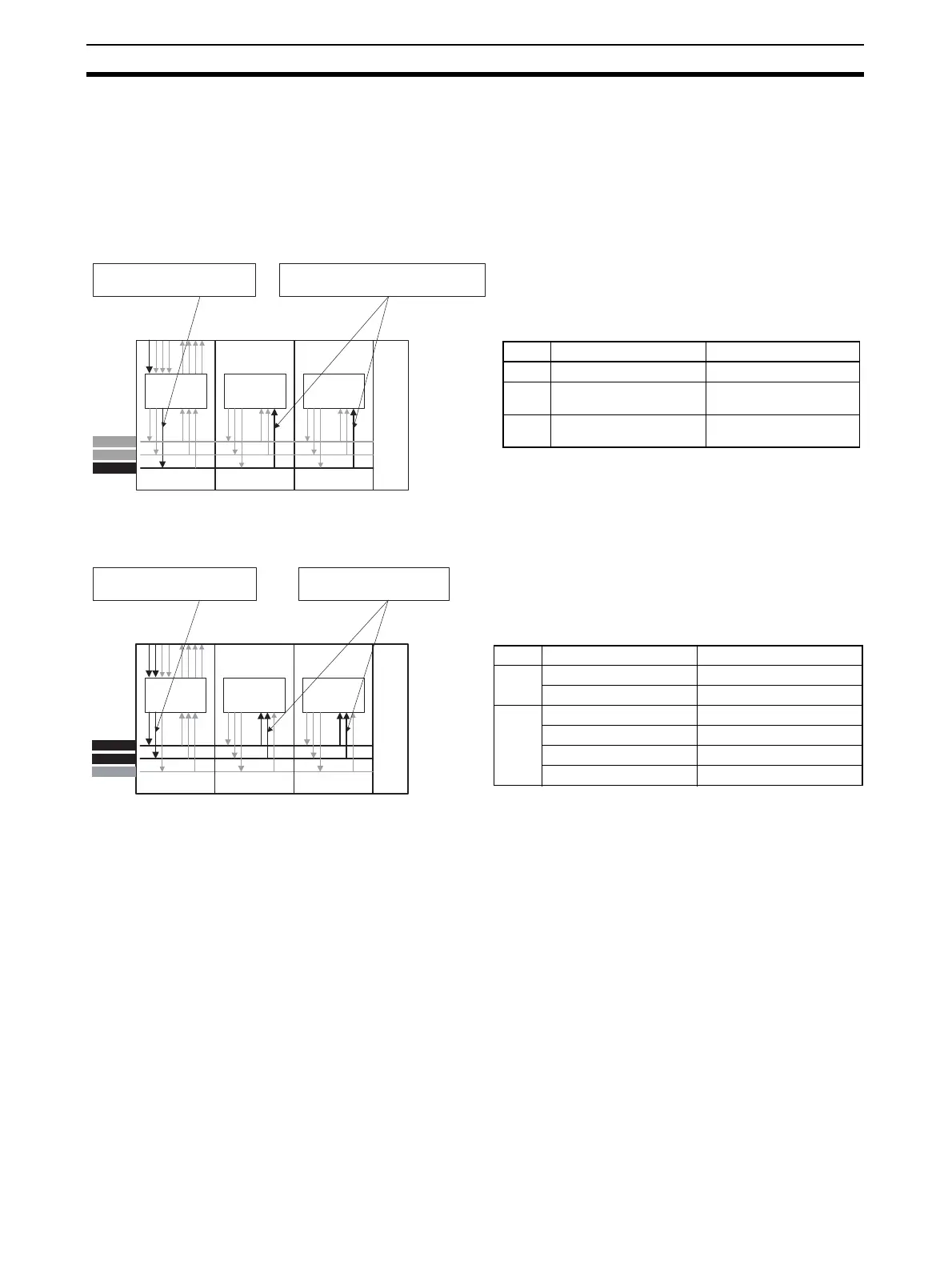

Example 1: Switch all channels between Run and Stop according to the ON/
OFF status of the event input.
Example 2: Switch all channel banks, according to the ON/OFF status of the
event input.
Note When assigning bus I/O, disable all bus I/O assignments first and
then make the settings.
BUS1
BUS2
Outputs the ON/OFF status
of the event input.
Switches between Run/Stop based
on the bus ON/OFF status.
CPUCPUCPU
BUS3
EV1
HFU TC2 TC4 EDU
Model Parameter name Set Value
HFU Bus Output 3 Assignment Event input 1
TC2 Bus Input 3 Assignment All channels Run (0)/Stop
(1)
TC4 Bus Input 3 Assignment All channels Run (0)/Stop
(1)
Outputs the ON/OFF status
of the event input.
Switches banks based on
the bus ON/OFF status.
CPUCPU
BUS1
BUS2
BUS3
EV1
HFU TC4 EDU
EV2
CPU
TC4
Model Parameter name Set Value
HFU Bus Output 1 Assignment Event input 1
Bus Output 2 Assignment Event input 2
TC4 Bus Input 1 Assignment Bank for all channels (bit 0)
Bus Input 2 Assignment Bank for all channels (bit 1)
Bus Output 1 Assignment Disabled
Bus Output 2 Assignment Disabled
