168

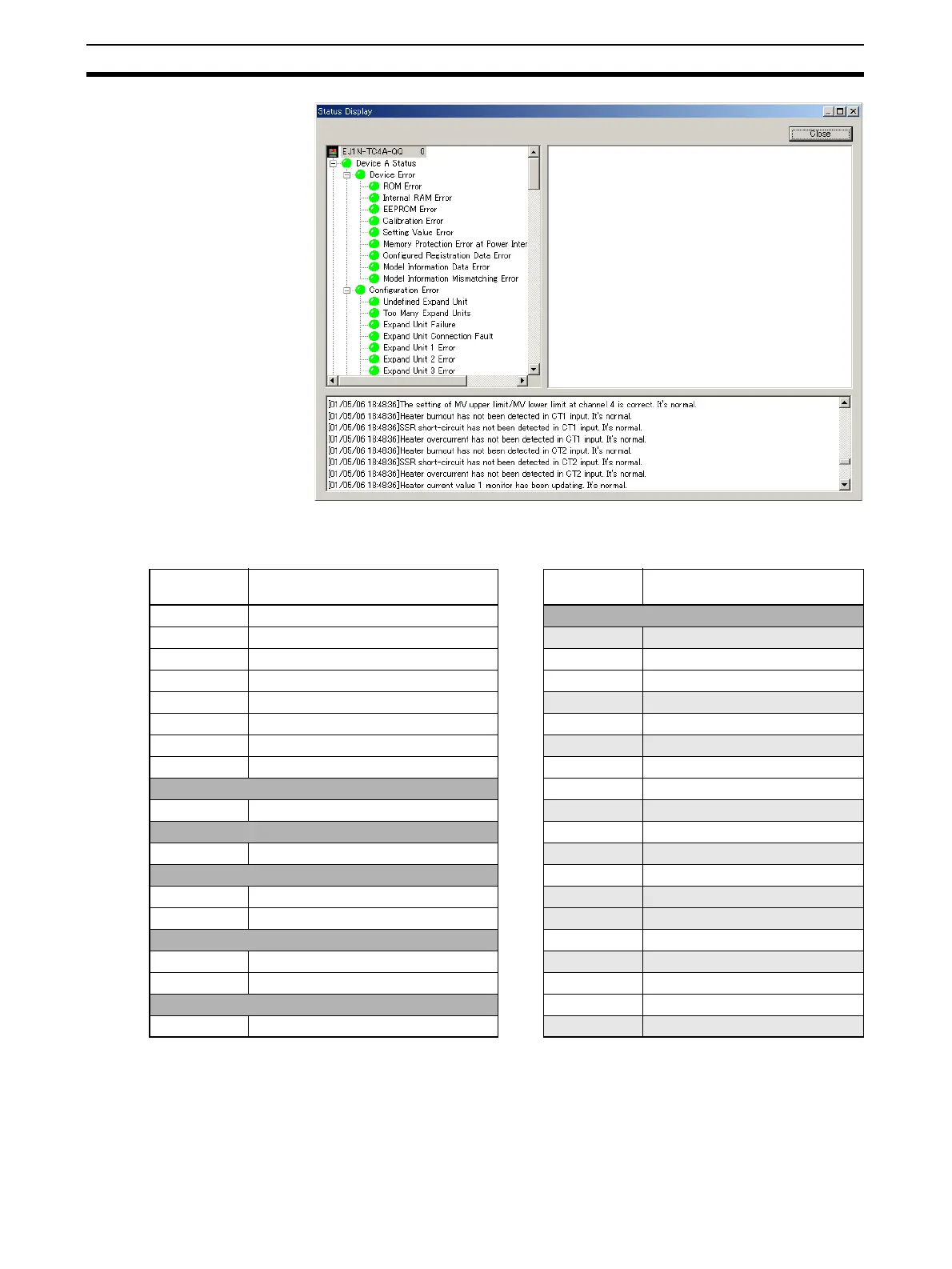

Determining the Error from the Status
Section 7-3
Status and Addresses
Note Refer to Status Lists on page 209 for information on bit data and details for
individual statuses.
Variable type
C4/C84
Parameter name Variable type
C4/C84
Parameter name
0000 Device A Status
Not used.
0001 Device Error Status
0100 Process Value - CH1
0002 Configuration Error A Status 0101 Channel Status - CH1
0003 Configuration Error B Status 0102 Channel Alarm Status - CH1
0004 Internal Communications Error Status
0103 Internal Set Point - CH1
0005 I/O Error Status ···
0006 I/O Alarm A Status 0200 Process Value - CH2
0007 I/O Alarm B Status 0201 Channel Status - CH2
Not used. 0202 Channel Alarm Status - CH2
0009 I/O Notification A Status
0203 Internal Set Point - CH2
Not used. ···
000B Error Channel A Status
0300 Process Value - CH3
Not used. 0301 Channel Status - CH3
000F Basic Unit/Expand Unit Error
0302 Channel Alarm Status - CH3
0010 Basic Unit/Expand Unit Alarm
0303 Internal Set Point - CH3
Not used. ···
0012 Output Status
0400 Process Value - CH4
0013 Device Status B 0401 Channel Status - CH4
Not used. 0402 Channel Alarm Status - CH4
0020 Version
0403 Internal Set Point - CH4
To Next Page
