Installation Section 2-1

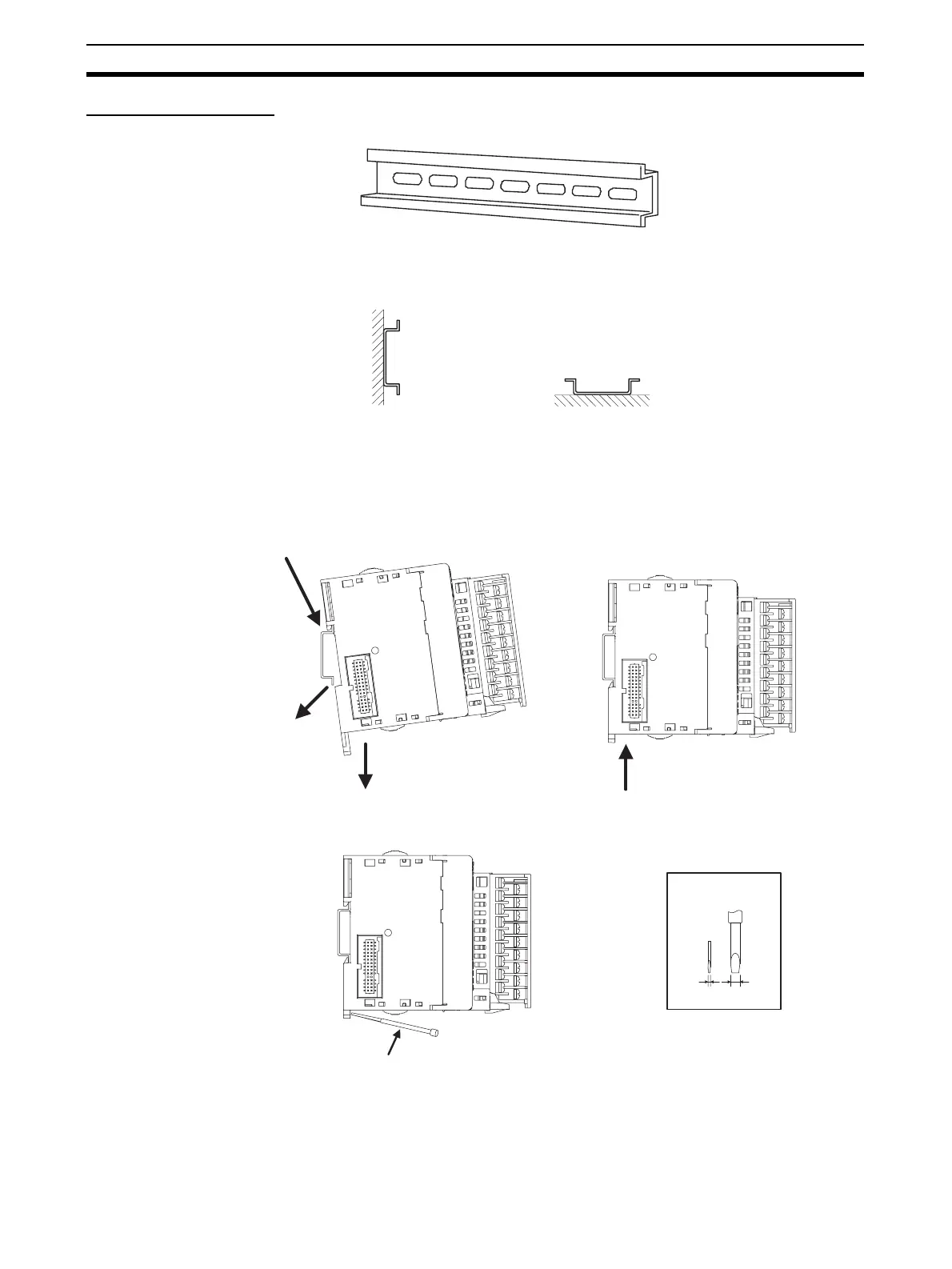

Mounting to DIN Rail • Mount the EJ1 to DIN Rail.
• Use screws to secure the DIN Rail in at least 3 locations.
• Install the DIN Rail vertically to the ground.
Installation Method Pull down the hooks on the bottoms of the Units, and then catch the hooks on
the tops of the Units onto the DIN Rail and press the Units onto the DIN Rail
until they lock into place.
Removal Method Pull down on the hooks with a flat-blade screwdriver and lift up on the Units.
DIN Rail: PFP-50N (50 cm) or PFP-100N (100 cm)
Vertical: OK
Horizontal: NG
4. Make sure the Units are
locked into place.
2. Catch the upper hooks onto the DIN Rail.
3. Press in on the Units.
1. Pull down the hooks.
0.4
2.5
Flat-blade screwdriver
Flat-blade screwdriver
(unit: mm)
