Installation Section 2-1

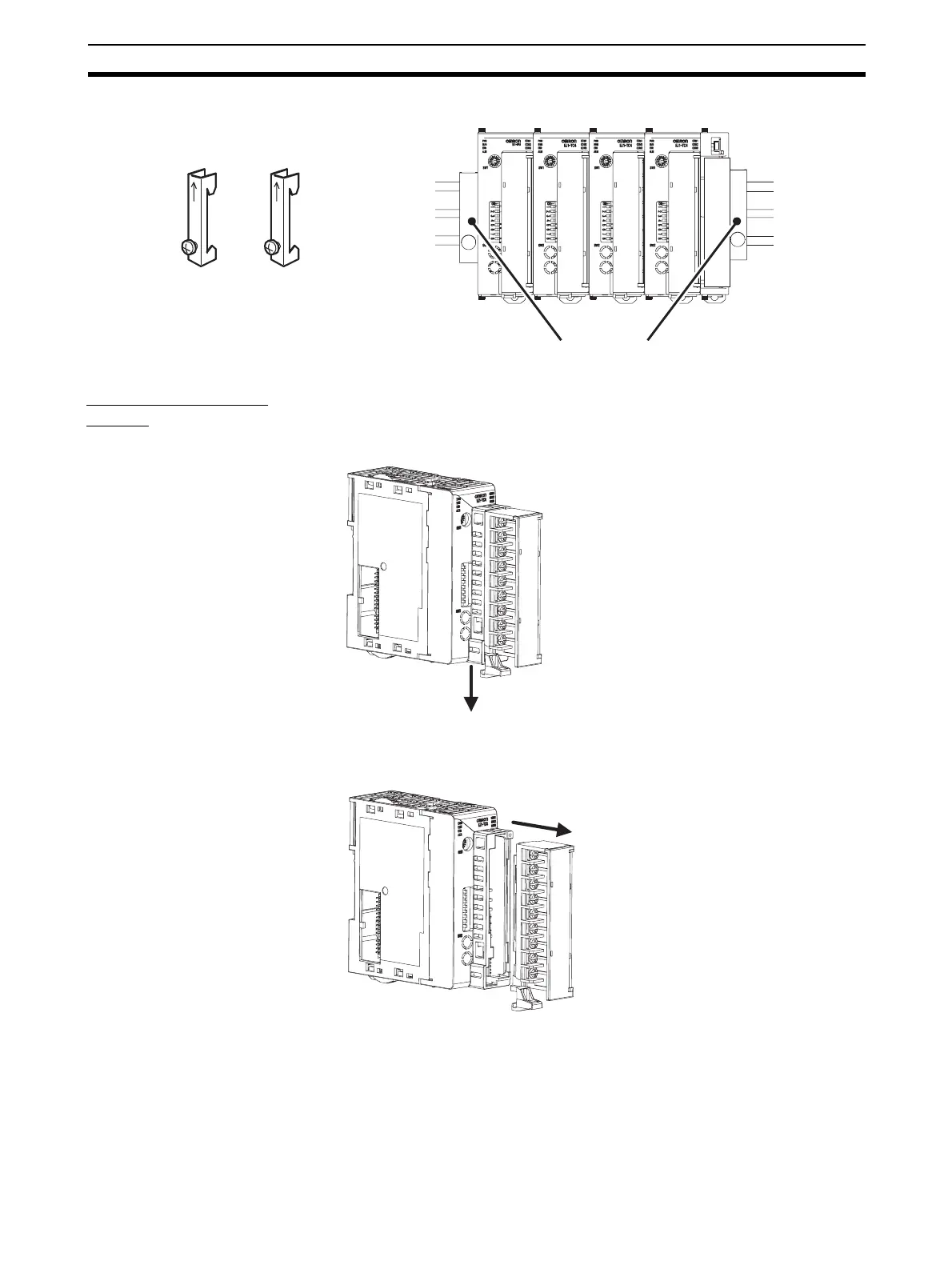

End Plate Installation Always mount an End Plate on each side of the EJ1.
Removing Terminal
Blocks
1,2,3... 1. Pull down the terminal block lever.
2. Pull off the terminal block.
Note Screw and screw-less terminal blocks cannot be exchanged. Use the type of
terminal block supplied with the TC Unit.
PFP-M End Plates (2)
PFP-M
Pull down the lever.
Pull off the terminal block.
