Unit Configuration Examples Section 2-4
Note Wire the connections indicated with dotted lines when settings for all EJ1
Controllers are being made from one port A connector. If the connections indi-
cated with dotted lines are not wired, the settings for group A can be made
only using the port A connector for group A and the settings for group B can
be made only using the port A connector for group B.
Connecting the G3ZA and
EJ1
• Up to 8 G3ZA Power Controllers can be connected to one TC4/TC2 Unit.
Note Either turn ON power to the G3ZA first, or turn ON power to the G3ZA and
EJ1 simultaneously.

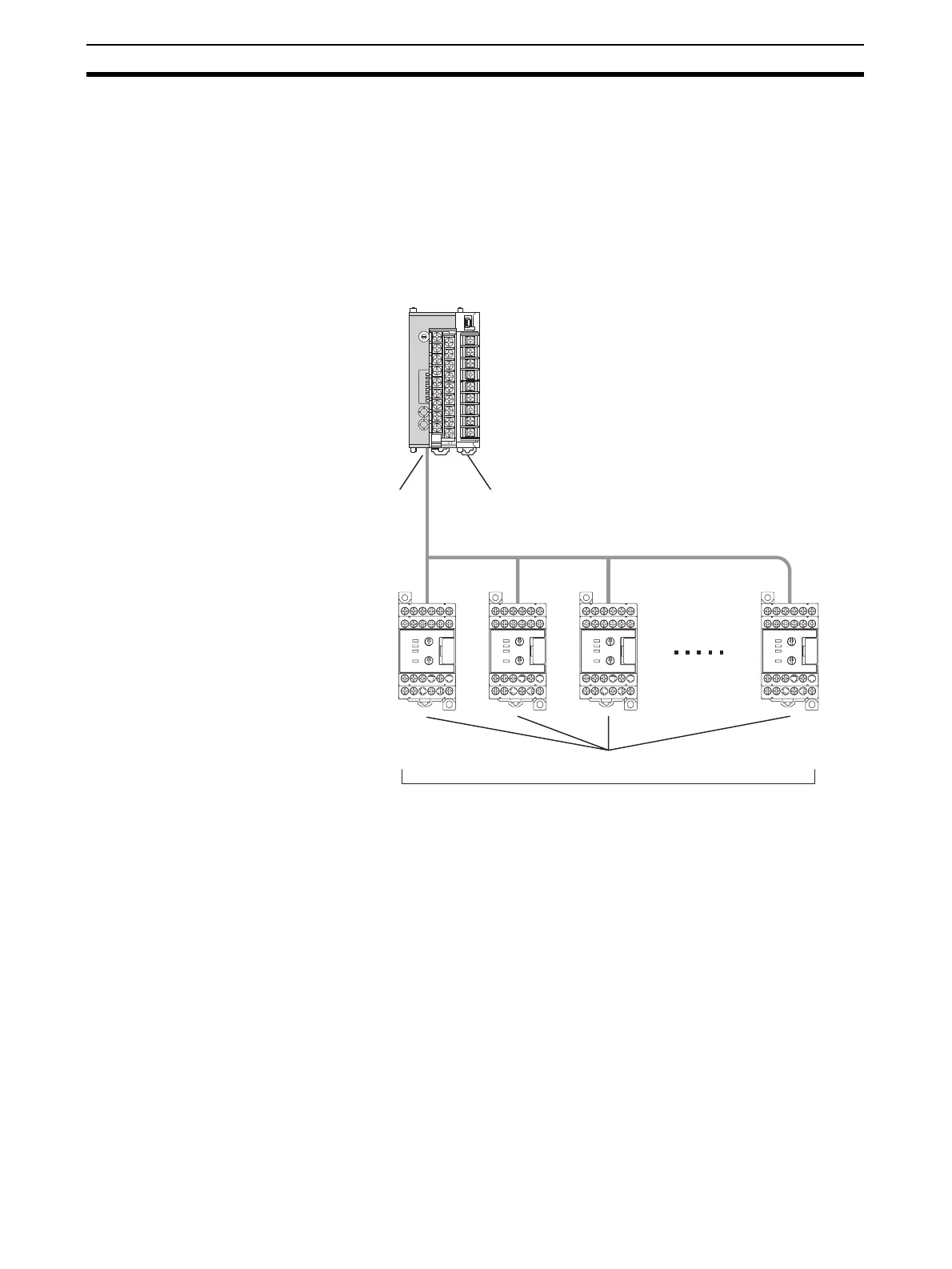

Up to 8 G3ZA Power Controllers can be
connected to one TC Unit.
EJ1@-TC4
or
EJ1@-TC2
EJ1@-EDU
G3ZA
To Next Page
