F3SJ-A
User’s Manual
Chapter4 Series Connection
Wiring/Installation
E

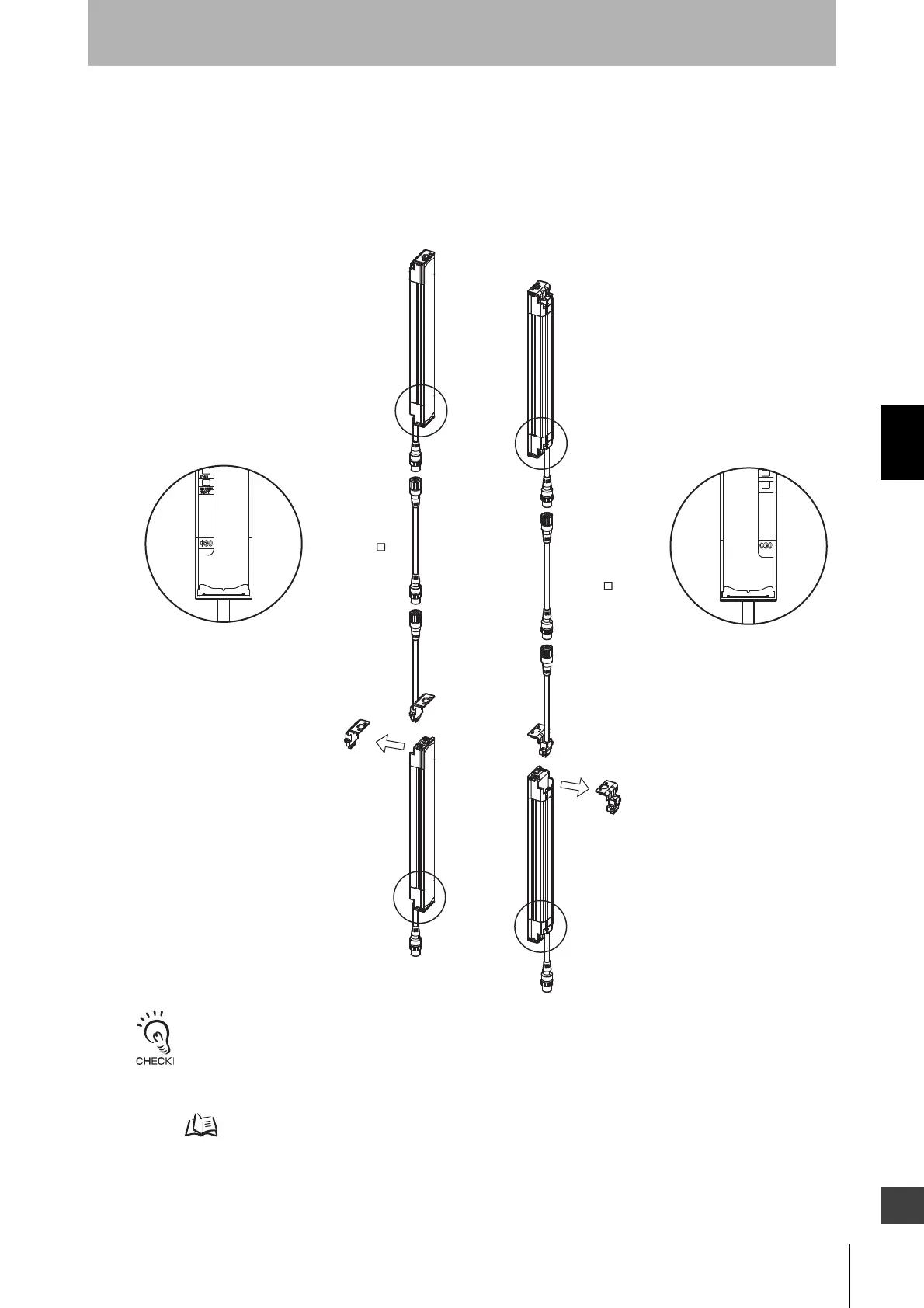

 When Using the F39-JJR3W Series Connection Cable for Extension (sold separately)
1. Remove the caps from the primary sensor. (driver comes with key cap for muting)
2. Use the F39-JJR3W series connection cable for extension to connect them.
3. When changing the connection distance between the F3SJ, connect a double-ended cable F39-JCB
or F39-JDB (optional).
- When attaching a cable or a cap, tightly fasten the screws (M2, in 4 places, recommended torque: 0.15Nm). Failure to
do so may cause the cable/cap to come loose, leading to deterioration of the protective functions.
- Attaching/detaching of a cap or a series-connection cable may cause misalignment of rubber grommet in a connector
assembly.
Press the grommet to the bottom of the connector and attach the connector F3SJ again.
p.125
F39-JC B
F39-JC B
1.1.
1.1.
2.2.
2.2.
3.3.
3.3.
F39-JJR3W
F39-JJR3W
Cap
Cap
Emitter power supply
connector side
Emitter power supply
connector side
Receiver power supply
connector side
Receiver power supply
connector side
Enlarged view of emitter
power supply connector side
Enlarged view of receiver
power supply connector side
EMITTER
RECEIVER

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
