Omron F3SJ Series User Manual

154
Chapter4 Mounting
F3SJ-A
User’s Manual
Wiring/Installation

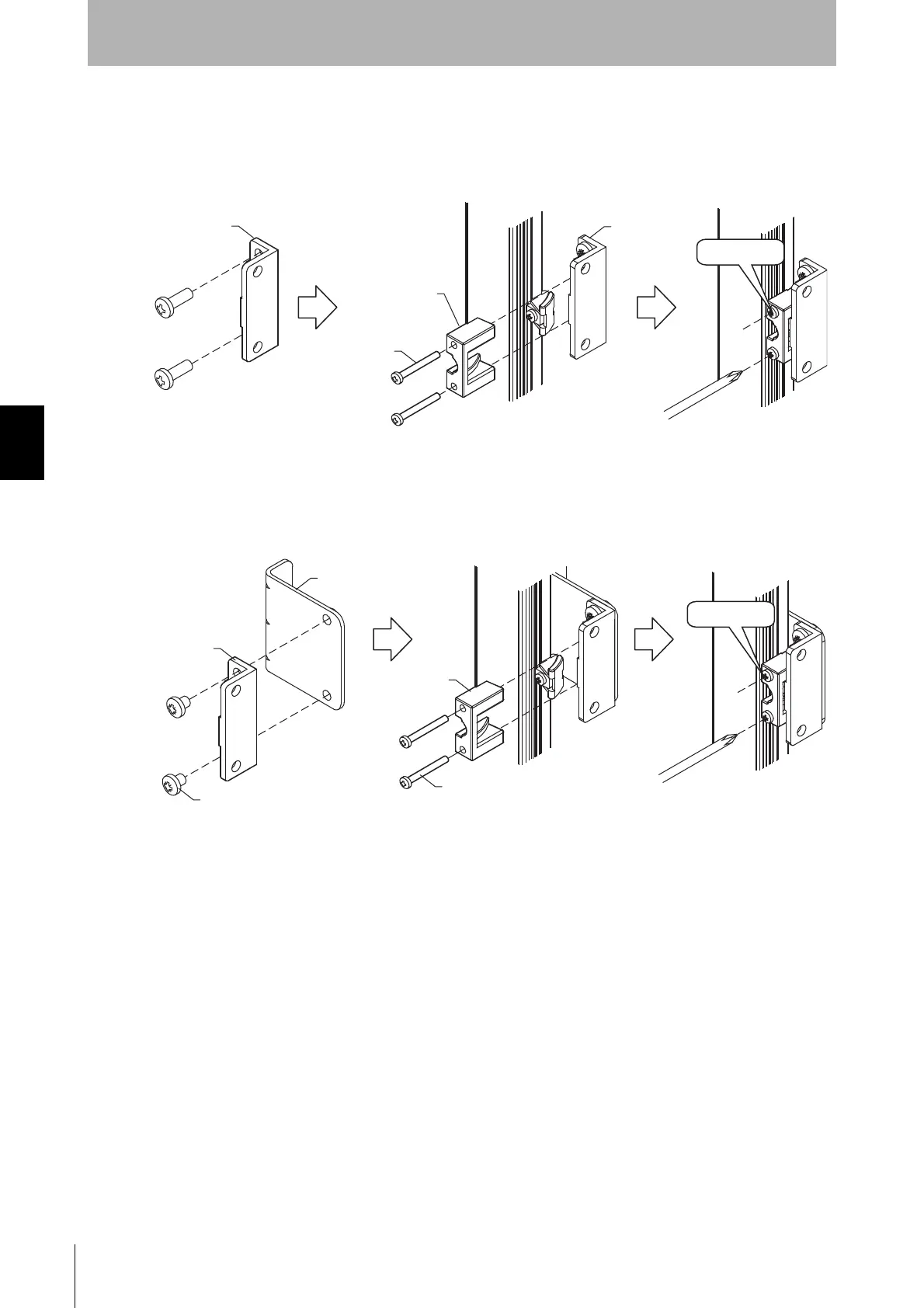

3. Attach the intermediate mounting brackets (for backside mounting).
For backside mounting, first lightly attach intermediate mounting bracket (1) to the equipment, wall
surface, etc. Then, attach intermediate brackets (1) and (4) to the bracket that was lightly attached to
the case in step 2 above, and lightly tighten them using the included mounting screws (M4x25).
4. Attach the intermediate mounting brackets (for side mounting).
When performing side mounting, first attach the intermediate mounting bracket for side mounting to
intermediate mounting bracket (1), using the included mounting screws (M5x10). Then, lightly attach
intermediate mounting bracket (4) to the bracket that was lightly attached to the case in step 2 above,
using the included mounting screws (M4x25).
Intermediate
mounting
bracket (1)
Intermediate
mounting
bracket (4)
Mounting screw
(M4x25)
Intermediate
mounting
bracket (1)
Tighten lightly
Intermediate
mounting
bracket (1)
Intermediate
mounting
bracket (4)
Mounting screw
(M4x25)
Intermediate mounting
bracket for
side mounting
Mounting screw
(M5x10)
Tighten lightly

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
