Omron F3SJ Series User Manual

195
F3SJ-A
User’s Manual
Chapter7 Accessories (Sold Separately)
Appendix
E

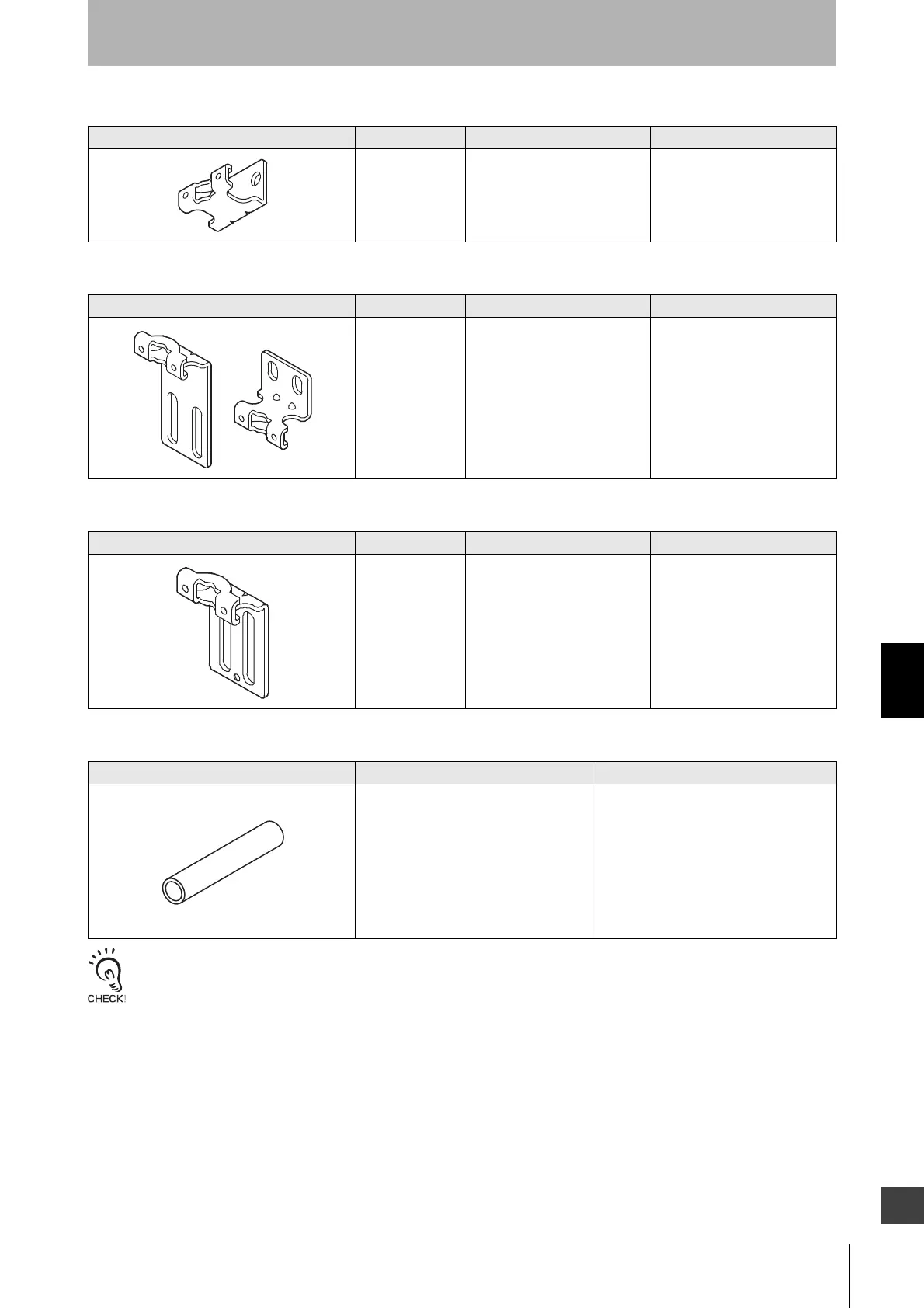

Space-saving mounting bracket
Mounting bracket for F3W-C replacement
Top/bottom mounting bracket C
Test rod
To check operation before use, purchase and use the test rod.
Appearance Model name Application Note
F39-LJ8 Brackets that can save
mounting space for top and
bottom
2 brackets for an emitter, 2 for a
receiver (4 brackets per set)
Appearance Model name Application Note
F39-LJ9 Mounting bracket used when
replacing existing zone sensors
F3W-C series with the F3SJ.
2 brackets for an emitter, 2 for a
receiver (4 brackets per set)
Appearance Model name Application Note
F39-LJ11 Mounting bracket used when
replacing existing area sensors
with the F3SJ. Suitable for
mounting hole pitch of 12 to
14mm.
2 brackets for emitter, 2
brackets for receiver (4 brackets
per set)
Appearance Model name Diameter
F39-TRD14
F39-TRD20
F39-TRD25
F39-TRD30
Dia. 14mm
Dia. 20mm
Dia. 25mm
Dia. 30mm

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
