45
F3SJ-A
User’s Manual

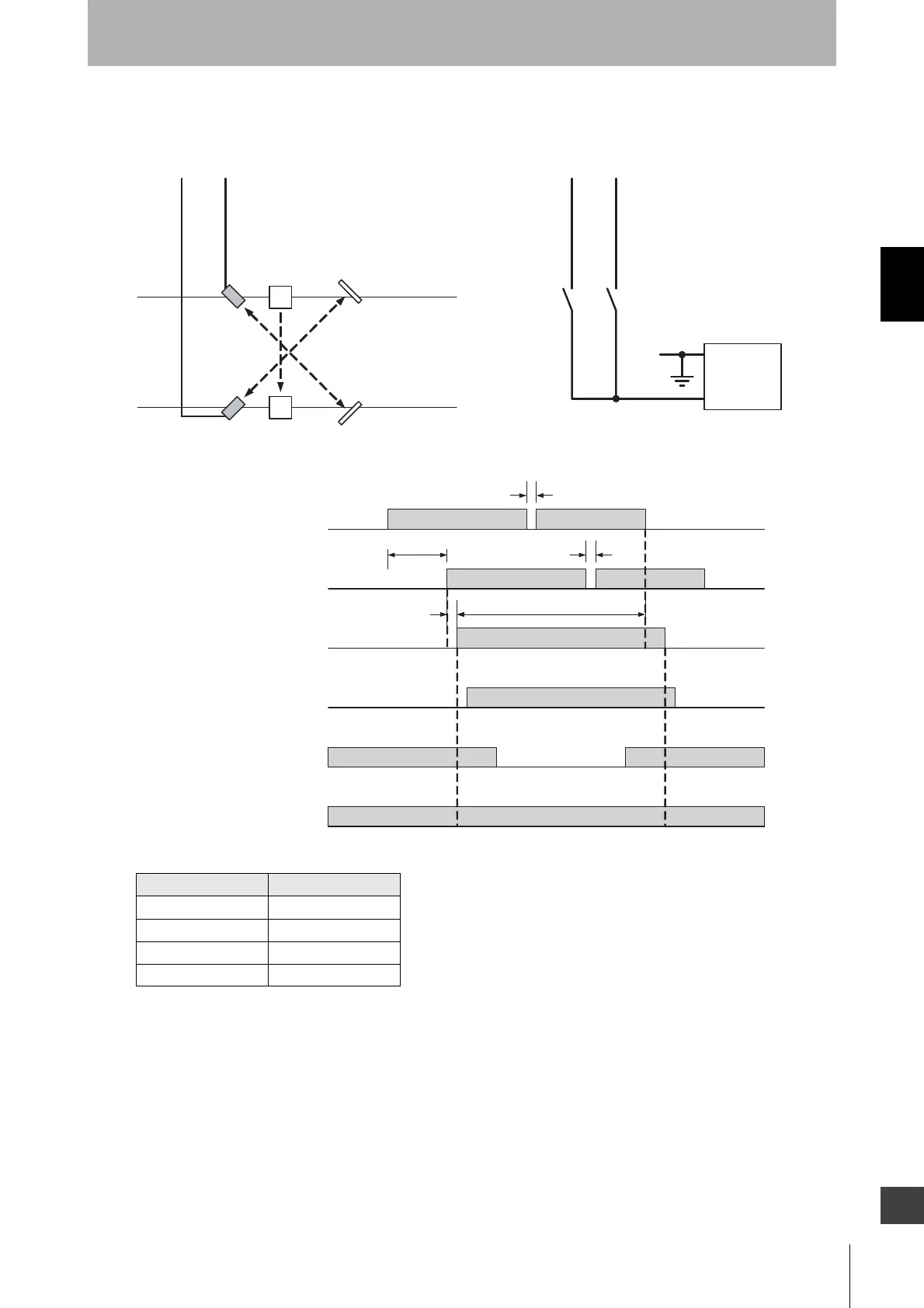

Chapter2 Muting System
System Configuration and Functions
E
Wiring Diagrams
Timing Chart
*1 The value is applied to a single sensor. Values for connected sensors are:
•T1min: Muting input time limit (minimum value)
This is set to 0.03 sec., the minimum value for the input time difference between muting input 1 and 2.
A muting error occurs when the input time difference between muting input 1 and 2 is less than this
value.
•T1max: Muting input time limit (maximum value)
This is set to 3 sec., the maximum value for the input time difference between muting input 1 and 2.
•T2: Muting time limit
This is set to 60 sec., the muting function continuation time. When this muting state exceeds this time,
muting is released.
# of connections *1 Value (s)
Single 0.15
2 connected 0.26
3 connected 0.29
4 connected 0.32
B1A1
+24V DC
0V
A1
B1
F3SJ
Muting Input 1
(White)
Muting Input 1
(White)
Muting Input 2(Red)
Muting Input 2(Red)
Reflector
Reflector
Power
supply
Using a photoelectric switch as a muting sensor Using an N.O contact type switch as a muting sensor
A1, B1: Regressive reflection
photoelectric switch
- NPN Output
- ON when Interrupted
A1, B1: N.O contact type switch
Two-wire type muting sensor cannot be used.
*
Muting sensor A1
ON
OFF
Muting sensor B1
ON
OFF
Safety output
ON
OFF
Blinking
OFF
Enabled
Disabled
Muting lamp
(external indicator)
F3SJ Unblocked
/Blocked
Unblocked
Blocked
T3(0.1s) max.
T3(0.1s) max.
0.15s max. *1
T2 max.
Muting state
T1min to T1max
