F3SJ-A
User’s Manual
Chapter2 Muting System
System Configuration and Functions
E

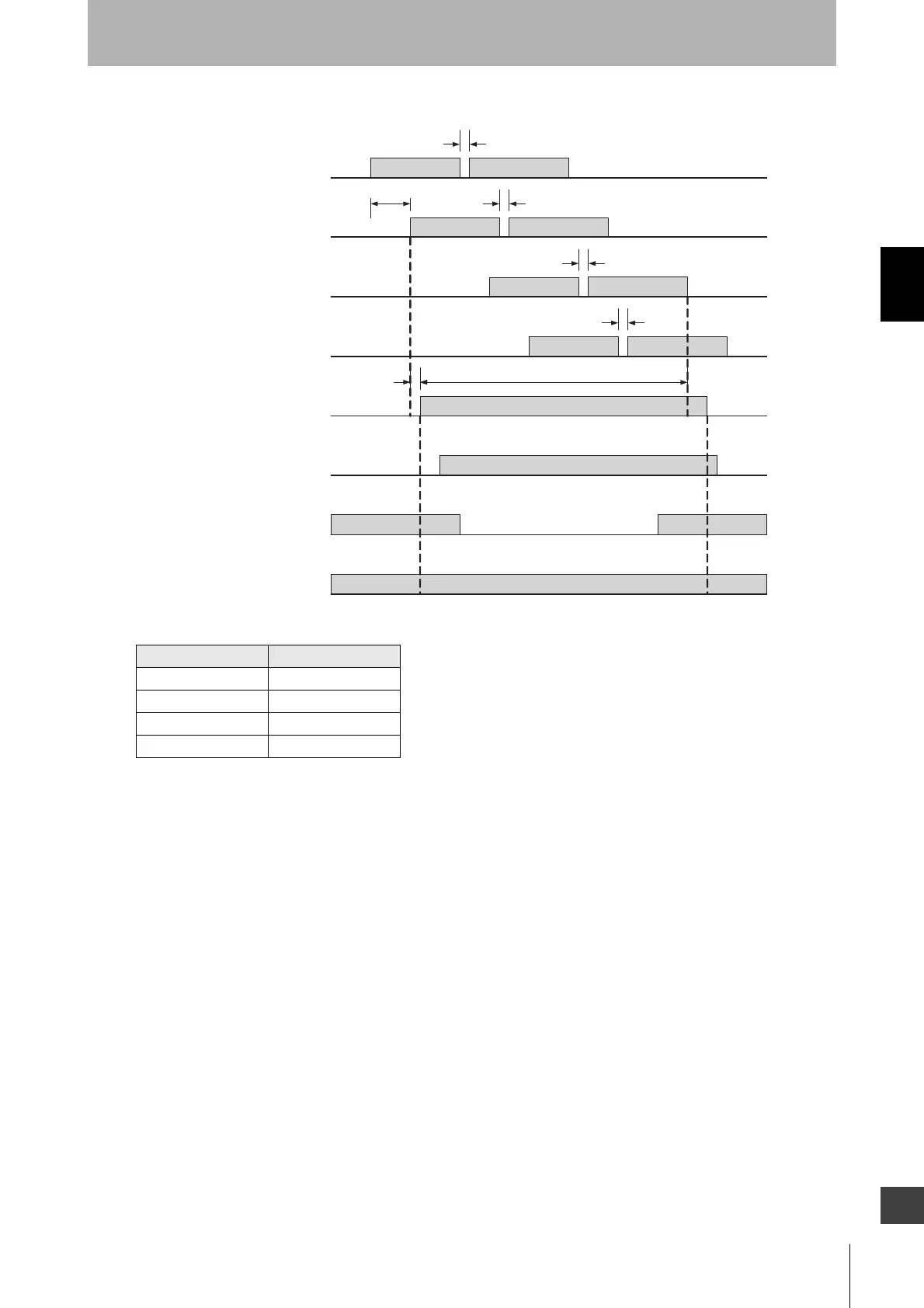

Timing Chart
*1 The value is applied to a single sensor. Values for connected sensors are:
•T1min: Muting input time limit (minimum value)
This is set to 0.03 sec., the minimum value for the input time difference between muting input 1 and 2.
A muting error occurs when the input time difference between muting input 1 and 2 is less than this
value.
•T1max: Muting input time limit (maximum value)
This is set to 3 sec., the maximum value for the input time difference between muting input 1 and 2.
•T2: Muting time limit
This is set to 60 sec., the muting function continuation time. When this muting state exceeds this time,
muting is released.
•T3: Muting input time with allowable waveform cracks
This is the maximum value for the waveform cracks allowed for muting input 1 and 2 when muting is
in effect. It is set to 0.1 sec.
# of connections *1 Value (s)
Single 0.15
2 connected 0.26
3 connected 0.29
4 connected 0.32
OFF
Safety output
ON
OFF
Blinking
OFF
Blocked
Unblocked
ON
OFF
ON
ON
OFF
ON
OFF
Enabled
Disabled
T3(0.1s ) max.
T3(0.1s ) max.
T3(0.1s ) max.
T3(0.1s ) max.
T2 max.
0.15s max. *1
Muting lamp
(External indicator)
F3SJ Unblocked
/Blocked
Muting sensor A1
Muting sensor B1
Muting sensor A2
Muting sensor B2
Muting state
T1min to T1max
