F3SJ-A
User’s Manual
Chapter3 Setting Adjusted to Application
What can be done by the setting tool
E
Detection Capability p.76
• Setting Example
If number of floating beams is 2, safety output is not turned OFF if 3 or more beams are interrupted.
If 2 or less beams are interrupted, safety output is not turned OFF. (Figure 5)
If 3 or more beams are interrupted, safety output is turned OFF. (Figure 6)
Even if there is only one interrupting object, safety output can be turned OFF when 3 beams are
interrupted. (Figure 7)
• Internal Indicators of F3SJ
For basic system: Emitter’s BLANKING/TEST indicator is turned on under floating blanking state.
For muting system: Receiver’s BLANKING/TEST indicator is turned on under floating blanking state.
3 or more beams are interrupted2 or less beams are interrupted
3th beam
13th beam
3th beam
13th beam

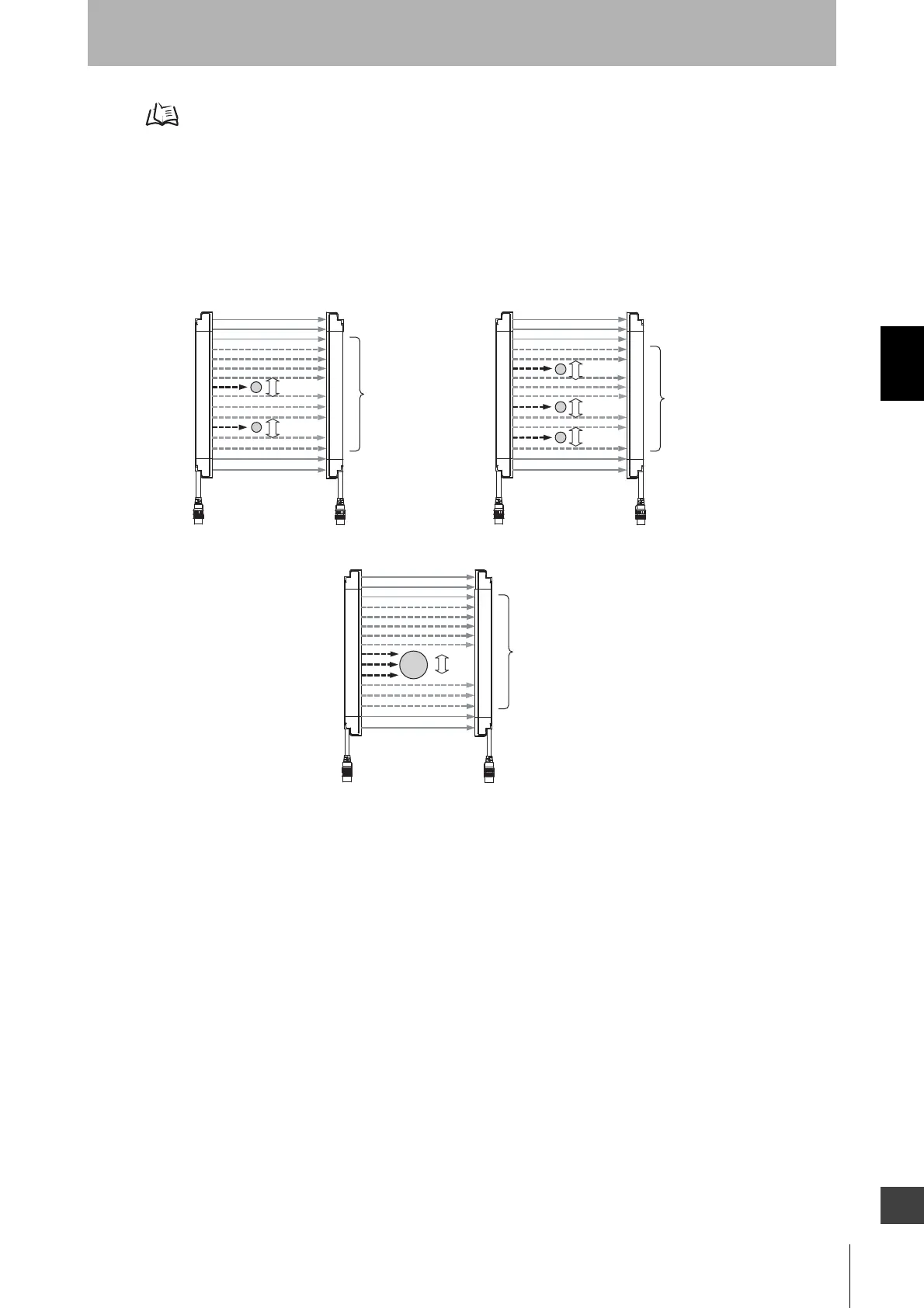

Figure 5 Figure 6
Floating blanking zone Floating blanking zone
Safety output OFFSafety output ON
An interrupting object blocks 3 or more beams
3th beam
13th beam
Figure 7
Floating blanking zone
Safety output OFF

Omron F3SJ Series Specifications

General

Type	Safety Light Curtain
Safety Category	Category 4
Protection Rating	IP67
SIL	SIL3
Operating Temperature	-10°C to +55°C
Detection Method	Infrared
Resolution	14 mm
IP Rating	IP67
Certification	CE
Power Supply Voltage	24 VDC ±10%
