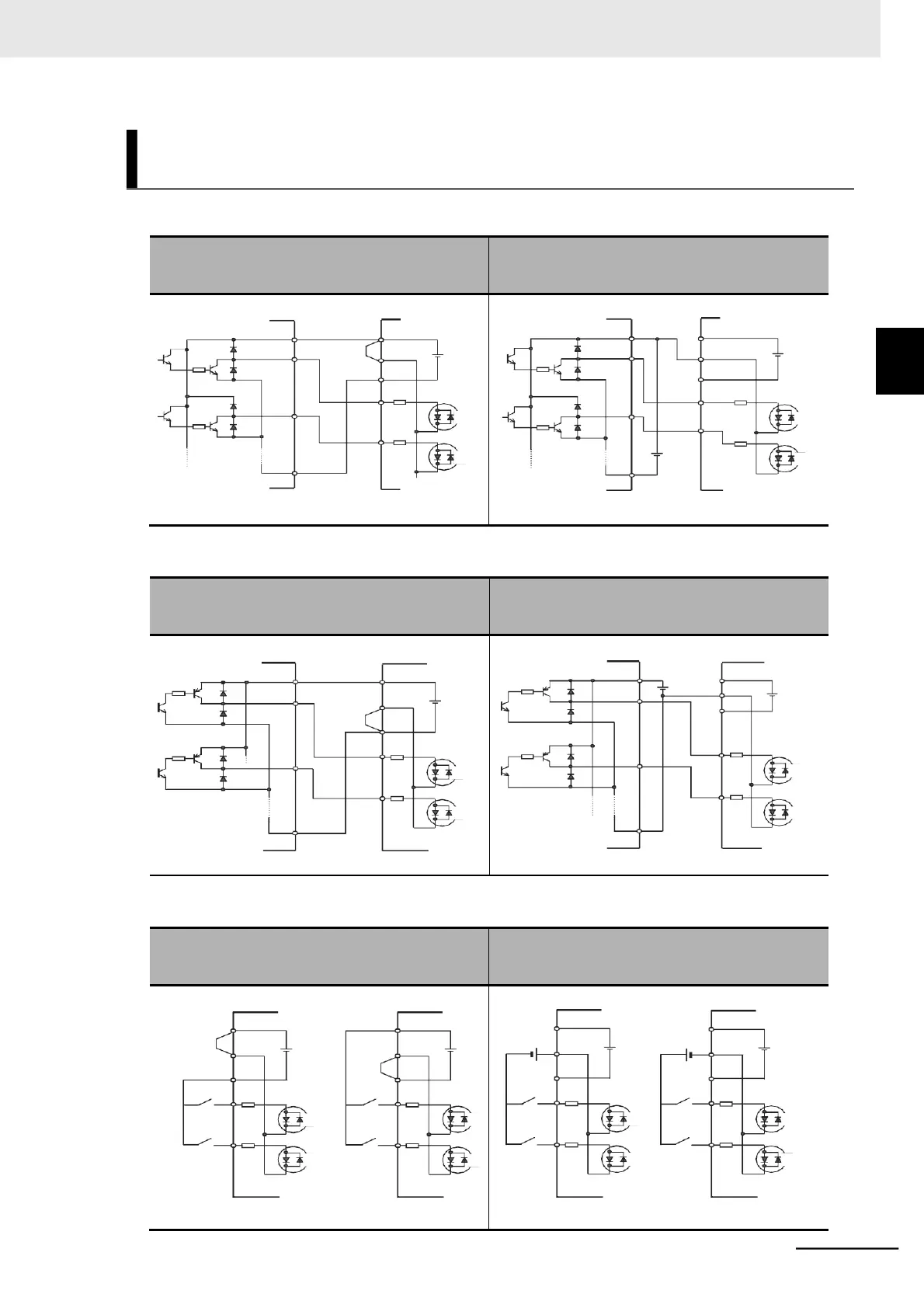

⚫ Sink logic
When inverter’s internal power supply for input
signal is used
When external power supply is used
(Remove the short-circuit bar from the control
circuit terminal block.)
+V
P24
Short-circuit
PLC
bar
24 VDC
L
1
7
COM
Output unit etc. Inverter
+V P24
PLC
24 VDC
L
1
7
COM
24 VDC
Output unit etc. Inverter
⚫ Source logic
When inverter’s internal power supply for input
signal is used
When external power supply is used
(Remove the short-circuit bar from the control
circuit terminal block.)
COM
0V
Output unit etc.
Short-circuit
bar
P24
PLC
L
1
7
Inverter
24 VDC
COM
P24
24 VDC
PLC
L
24 VDC
1
7
0V
Output unit etc.
Inverter
⚫ No-voltage switch
When inverter’s internal power supply for input
signal is used
When external power supply is used
(Remove the short-circuit bar from the control
circuit terminal block.)
Short-circuit
P24 P24
bar
Short-
PLC
circuit
PLC
24 VDC bar
L L
1 1
7 7
Inverter Inverter
P24 P24
24 VDC
24 VDC
PLC PLC
L
24 VDC
L
24 VDC
1 1
7 7
Inverter Inverter
Multi-function Input Terminals and Programmable Controller Con-
nection
2
2-3 Wiring
2-3-5 Wiring for Control Circuit Terminals

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
