3-2 Connections and Functions of CX-Drive
Open the Monitor folder in the project and double-click Real Time Trace.

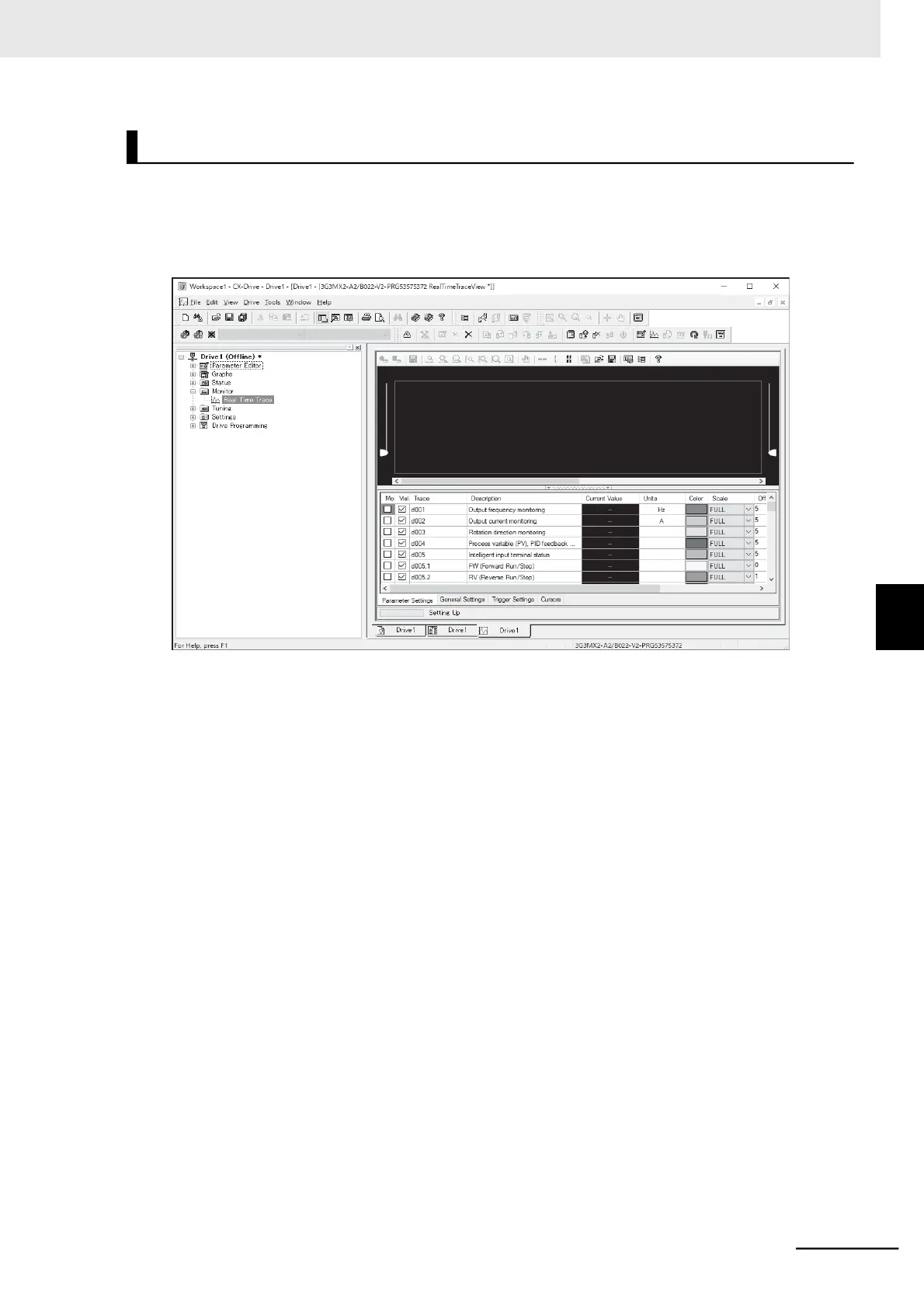

The Real Time Trance window opens, in which you can monitor the operation status of the inverter.
• Up to 8 signals can be traced.
• Triggers can be set to the ON/OFF timing of the inverter’s internal status, or numerically.
Monitor Function of CX-Drive
