5-5-1 Frequency Reference Selection
The frequency reference methods that are used generally are shown below.

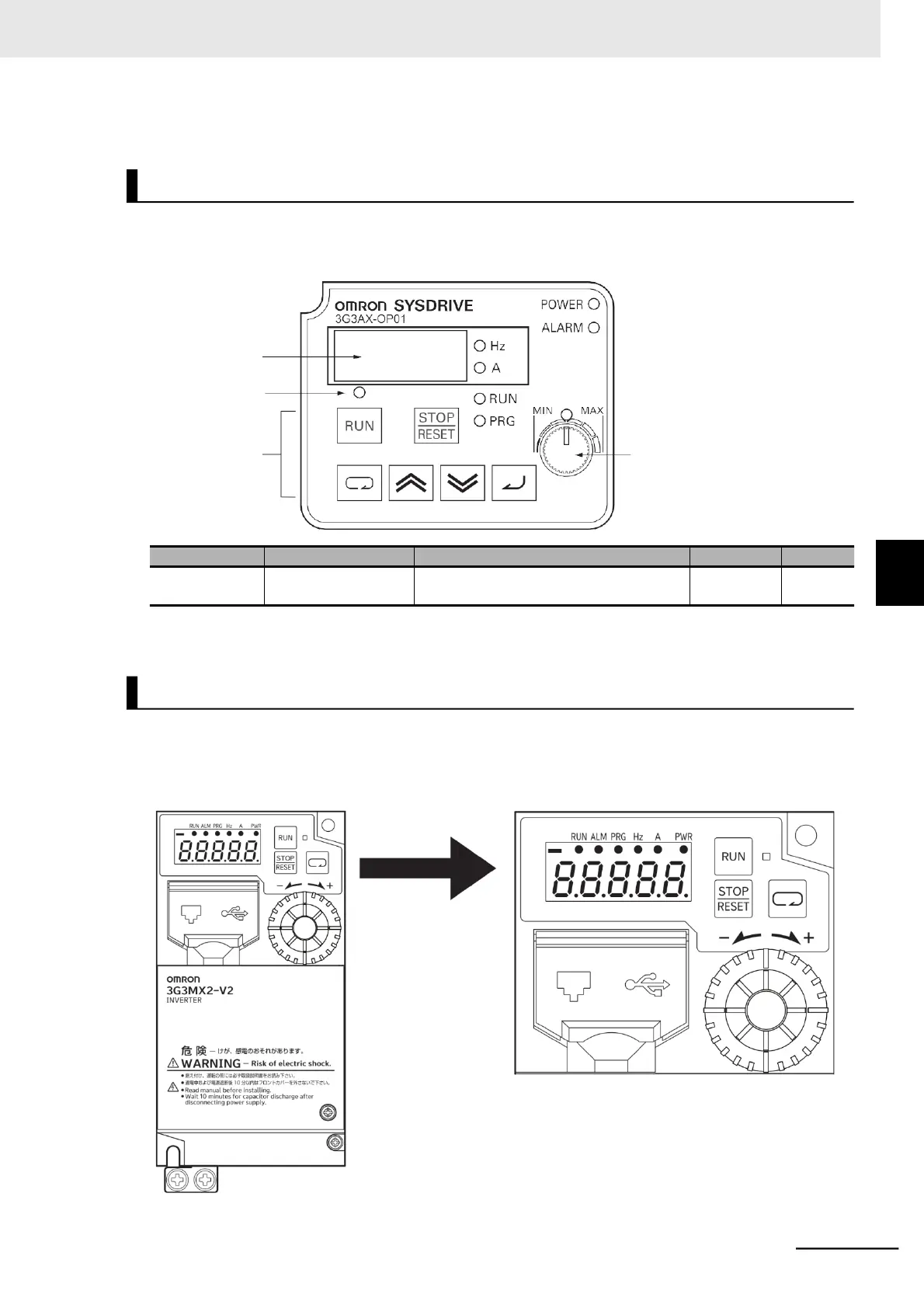

Set the frequency reference via the volume control for frequency setting on the Digital Operator (Model:
3G3AX-OP01).
Data display
RUN key
enabled LED
indicator
Operation keys
Volume control for frequency
setting
*1. This setting is enabled when the Digital Operator with the volume control (Model: 3G3AX-OP01) is con-
nected.
Set the frequency reference via the built-in Digital Operator.
To do so, set the Output Frequency Setting/Monitor (F001) and 1st/2nd Multi-step Speed Reference 0
(A020/A220).
Parameter No.
Function name
Data
Default data
Unit
A001/A201
1st/2nd Frequency
Reference Selection
00: Digital Operator (Volume)
*1
02
−
5
5-5 Frequency Reference Settings
Using Digital Operator (Volume)
Using Digital Operator
