Omron MX2 Series User Manual

5 Basic Settings
5 - 34
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
Parameter
No.
Function name
Data
Default
data
Unit
A097
Acceleration Pattern Selection
00: Line
01: S-shape curve
02: U-shape curve
01
−
A098
Deceleration Pattern Selection
03: Inverted U-shape curve
04: EL-S-shape curve
A131
Acceleration Curve Parameter
1 (Small curve) to 10 (Large curve)
2
−
A132
Deceleration Curve Parameter
A150
EL-S Shape Acceleration Curve
Ratio 1
0. to 50.
10
%
A151
EL-S Shape Acceleration Curve
Ratio 2
A152
EL-S Shape Deceleration Curve
Ratio 1
0. to 50.
10
%
A153
EL-S Shape Deceleration Curve
Ratio 2

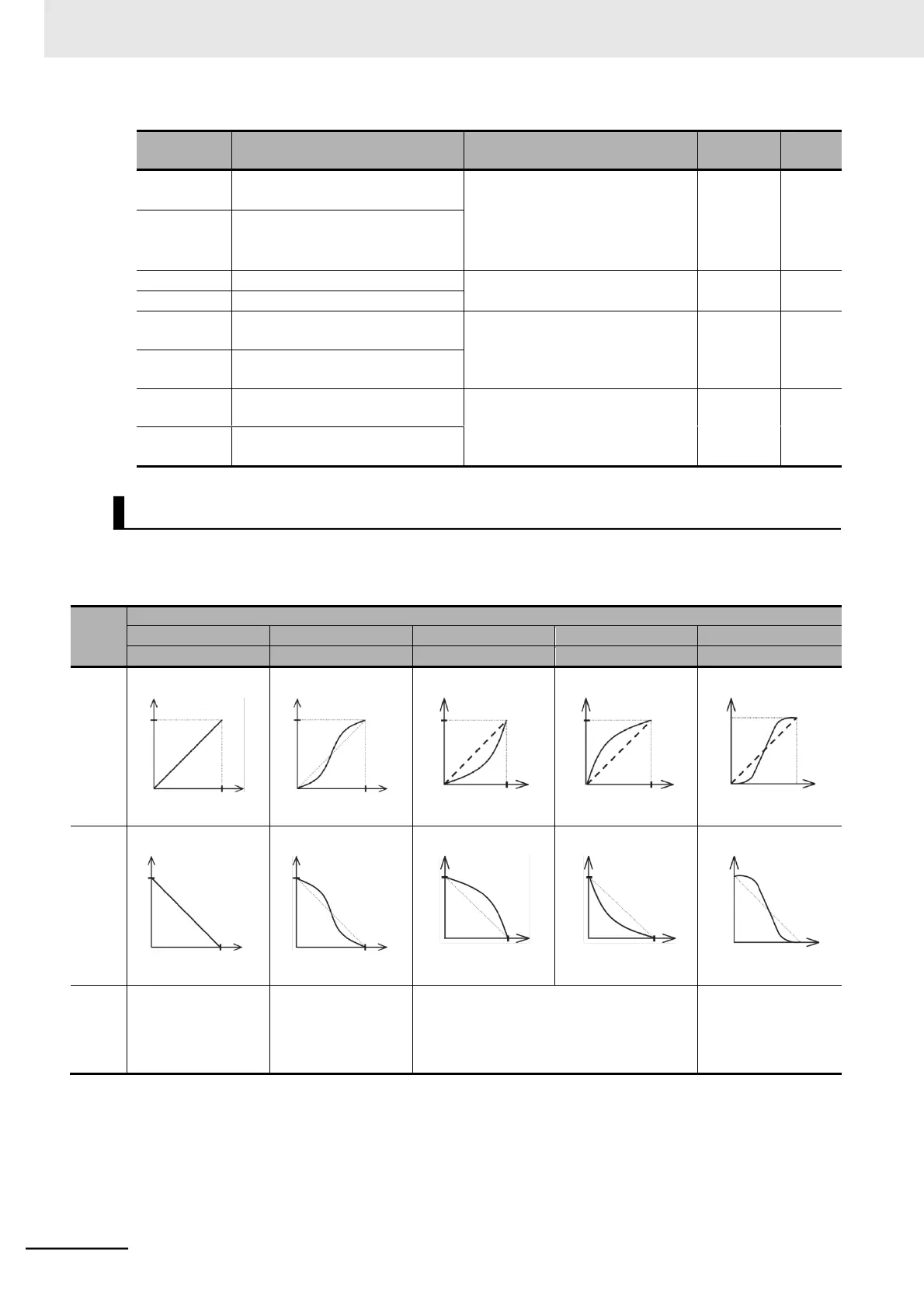

Set the Acceleration Pattern Selection/Deceleration Pattern Selection (A097/A098) according to the fol-
lowing table.
Parameter
No.
Set value
00
01
02
03
04
Line
S shape
U shape
Inverted U shape
EL-S shape
A097
(Acceleration)
Output frequency
Time
Output frequency
Time
Output frequency
Time
Output frequency
Time
Output frequency
Time
A098
(Deceleration)
Output frequency
Time
Output frequency
Time
Output frequency
Time
Output frequency
Time
Output frequency
Time
The motor acceler-
This pattern is effec-
These patterns are effective for tension con-
This pattern provides
ates/decelerates lin-
tive to prevent the
trol and roll-break prevention applications
shockless start/stop
Description
early until the set
collapse of load on
for winding equipment etc.
as with the S shape,
output frequency
an elevator, con-
but the intermediate
value is reached.
veyor, etc.
section is linear.
Pattern Selection

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
