Options
■ Power Supply
Switching Power Supply
A wireless unit requires 24VDC power supply. Use S8VM/VS (UL listing Class 2) series power source of
15W or higher, taking inrush current on startup into account. Omron's switching power supply is
recommended.
And, it power is supplied from the battery supply via the DC-DC converter.

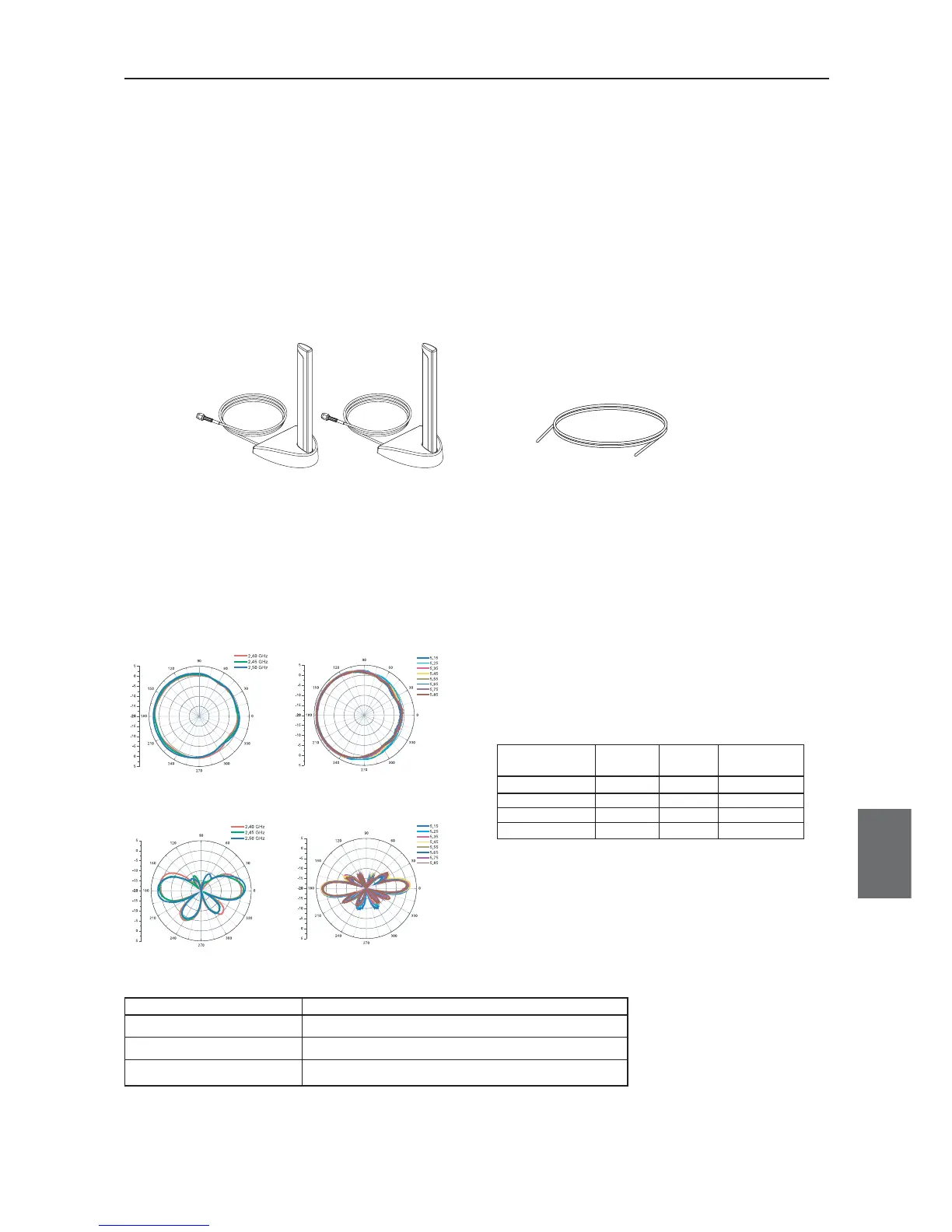

■ Antenna
Magnetic Pedestal Antenna
Co-polarization pattern
Magnetic Pedestal Antenna : Model WE70-AT001H
■ Others
Model Type
WT30-FT001 DIN rail mounting bracket (for TH35-7.5)
WT30-FT002 DIN rail mounting bracket (for TH35-15)
WE70-CA5M Antenna Extension Cable 5M
Appendices
Appendices
Appendices- 3
1 set with 2 antennas
Magnetic-base Antenna
Common for 2.4GHz and 5GHz bands
(WE70-AT001H)
Antenna Extension Cable 5M
(WE70-CA5M)
●H-planeCo-polarizationpattern
●V-planeCo-polarizationpattern
Frequencyrange
（MHz）
 2400-2483.5 5150-5875
Peakgain 2.2 3.2
includecableloss
Averagegain 0.2 1.2 includecableloss
HPBW/horizontal(
°
)  360 360
HPBW/vertical(
°
) 3015
2.4GHz-band
5GHz-band
2.4GHz-band
5GHz-band
