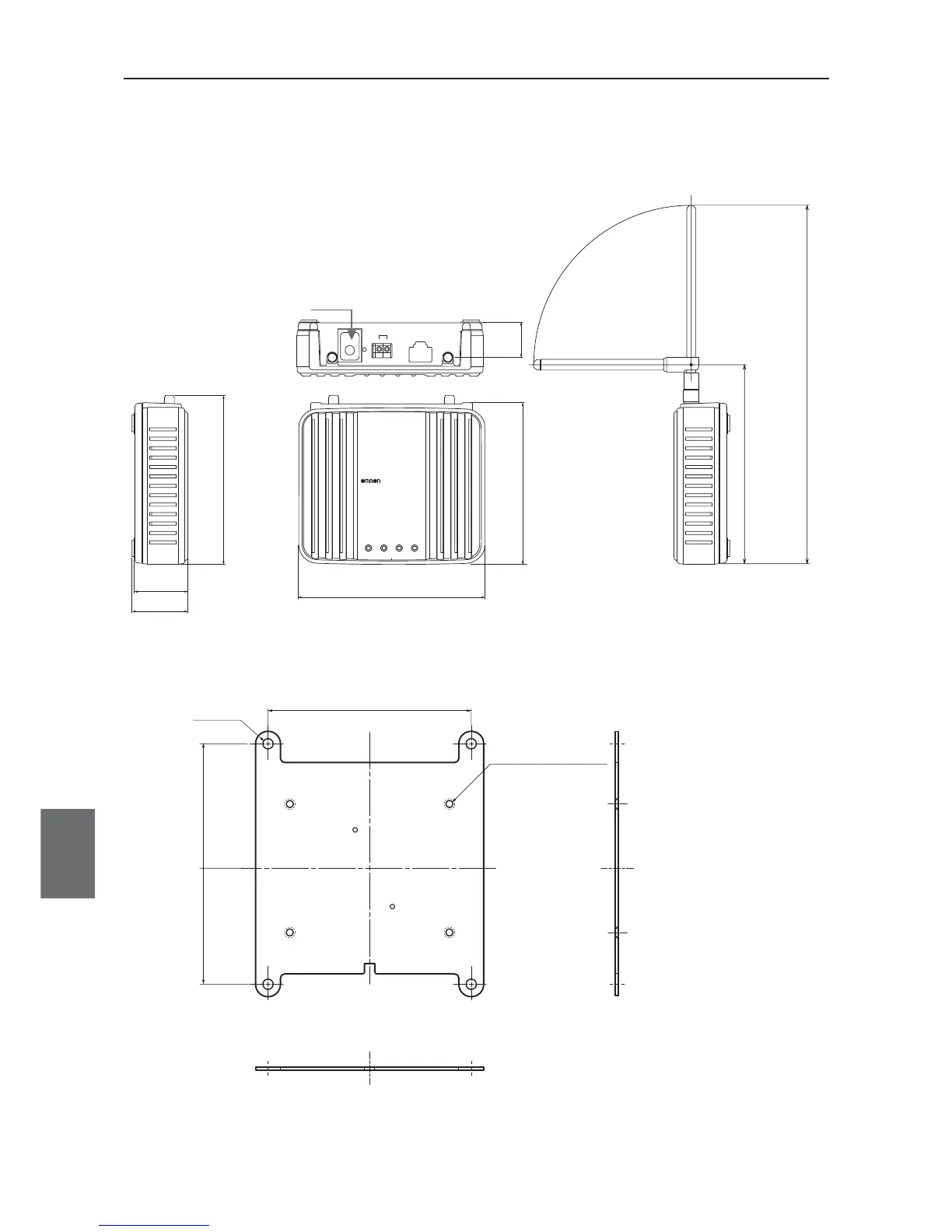

Dimensions
■ WE70-AP/CL (Common)
For WE70-CL Only
ETHERNET
INIT
PUSH
RSSI
+–
24V
WE70-AP
LANMODE
FA WIRELESS LAN ACCESS POINT
POWER WIRELESS
120 ± 1.0
34.5 ± 0.5
36
103 ± 1.0
22.6
107.6 ± 1.0
(Unit: mm)
128.5
231.5
■ Mounting Bracket
108±0.1
116±0.1
4-ø5
4-ø4.2
Use flat head screws
(Unit: mm)
