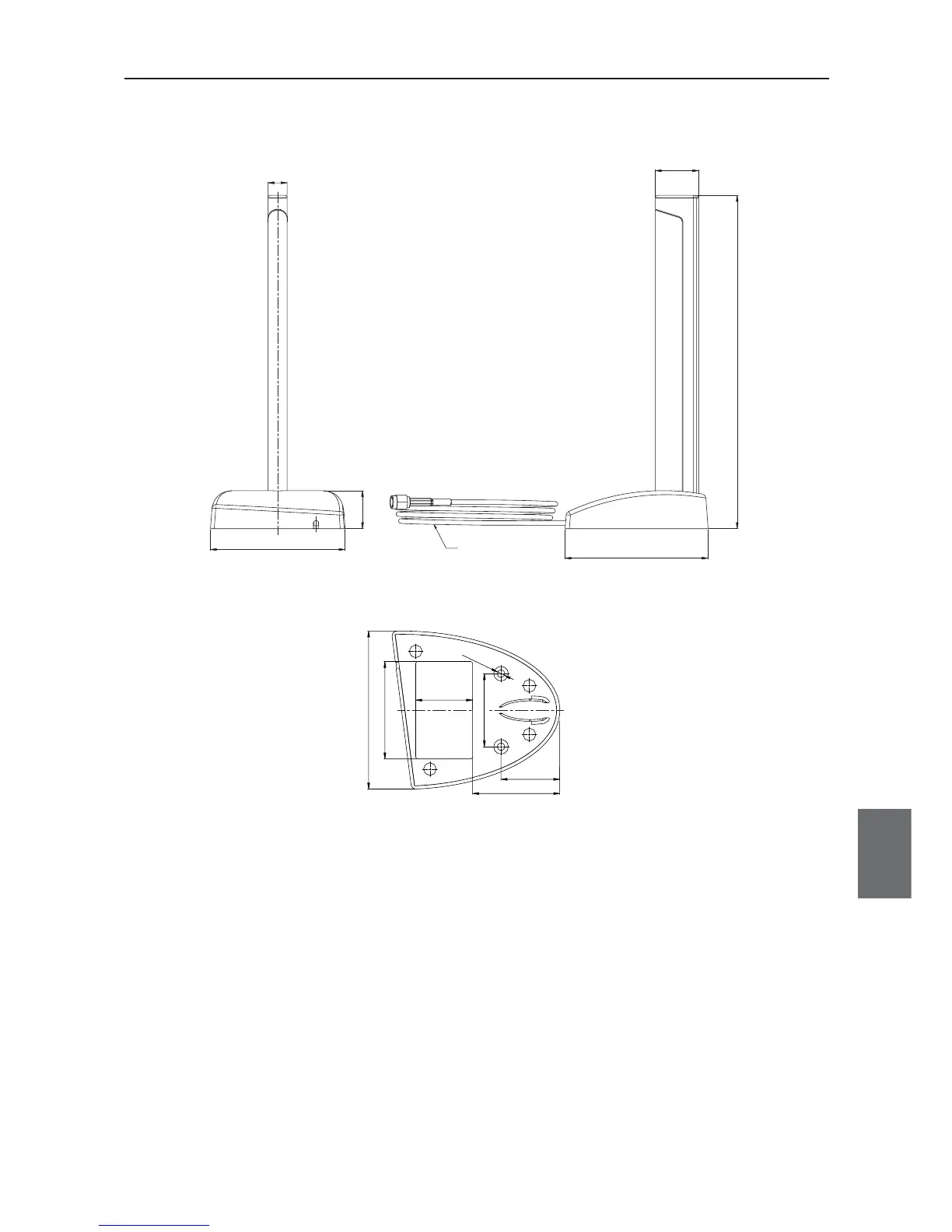

■ Magnetic-base Antenna Can (WE70-AT001H: Optional)
TOTAL LENGTH
200+/-2CM
25
193
82.6
11
78
22
(Unit:mm)
Antenna Stand Bottom View
42.9
36.0
28.0
48.0 77.8
28.9
φ3.8-2
