Code Options
L-46X User's Manual
65
1st

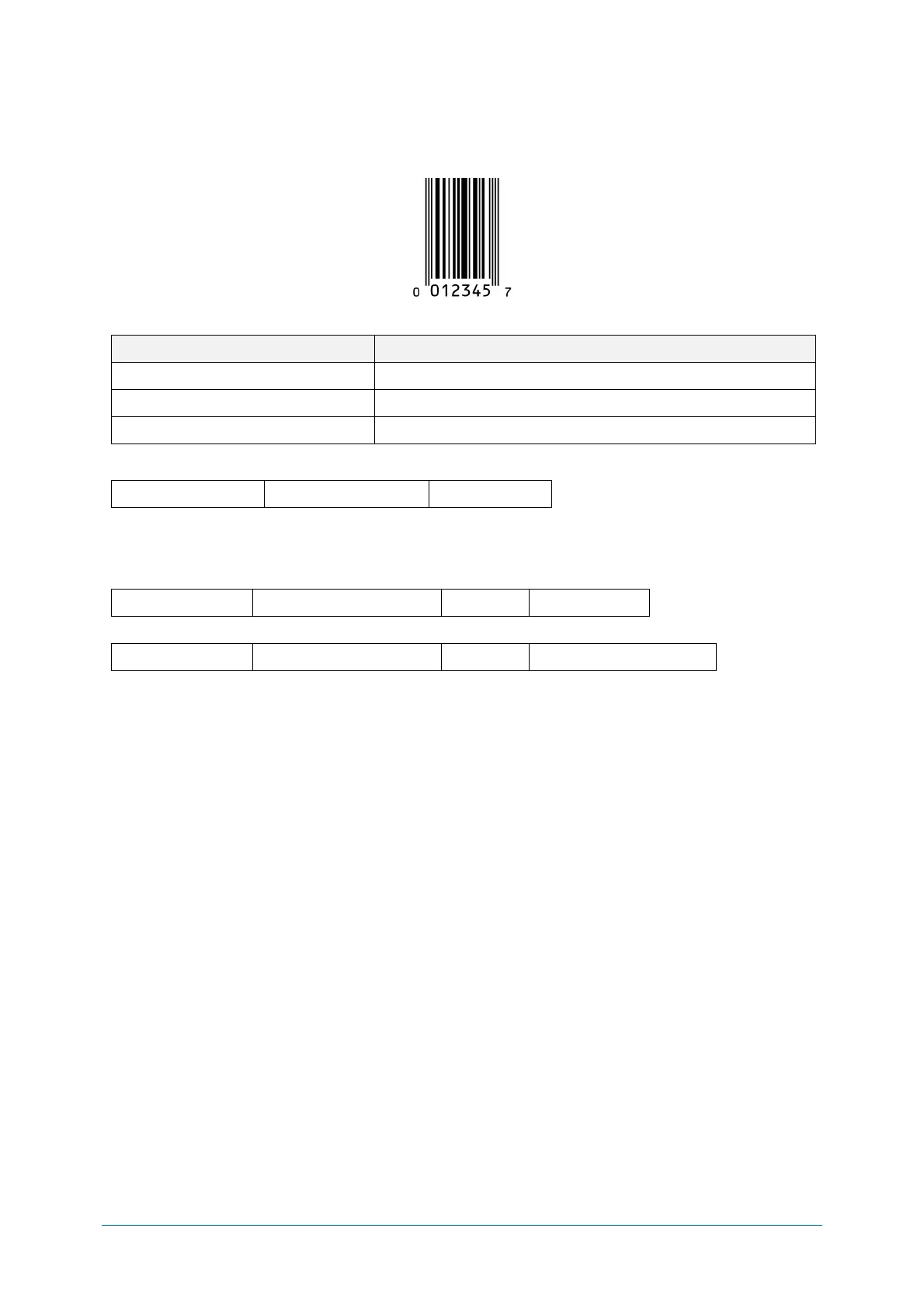

UPC-E Overview
Following are the UPC-E configuration.
Item
Overview
Character set
Numeric (0-9)
Number of digits
7 digits (6 digits + CD 1 digit) fixed length
CD (check digit) check method
Modulus 10 / Wait 3
Transfer data format
Leading "0"
Data 6 digits
CD 1 digits
UPC-E Add-on 2 digits / 5 digits
UPC-E Add-on 2 digits / 5 digits is a barcode of UPC-E plus 2 digits or 5 digits supplement code.
Transfer data format (UPC-E Add-on 2 digits)
Leading "0"
Data 6 digits
CD 1 digit
Add-on 2 digits
Transfer data format (UPC-E Add-on 5 digits)
Leading "0"
Data 6 digits
CD 1 digit
Add-on 5 digits
UPC-E CD transfer / front “0” transfer
This allows you to set whether or not to transmit CD (check digit) and a leading “0”.
The 8 digits transfer data format that transfer a leading “0” and CD, the format becomes compatible
with JAN / EAN-8.
Convert UPC-E to UPC-A format and transfer
Transfer setting to UPC-A format is possible.
