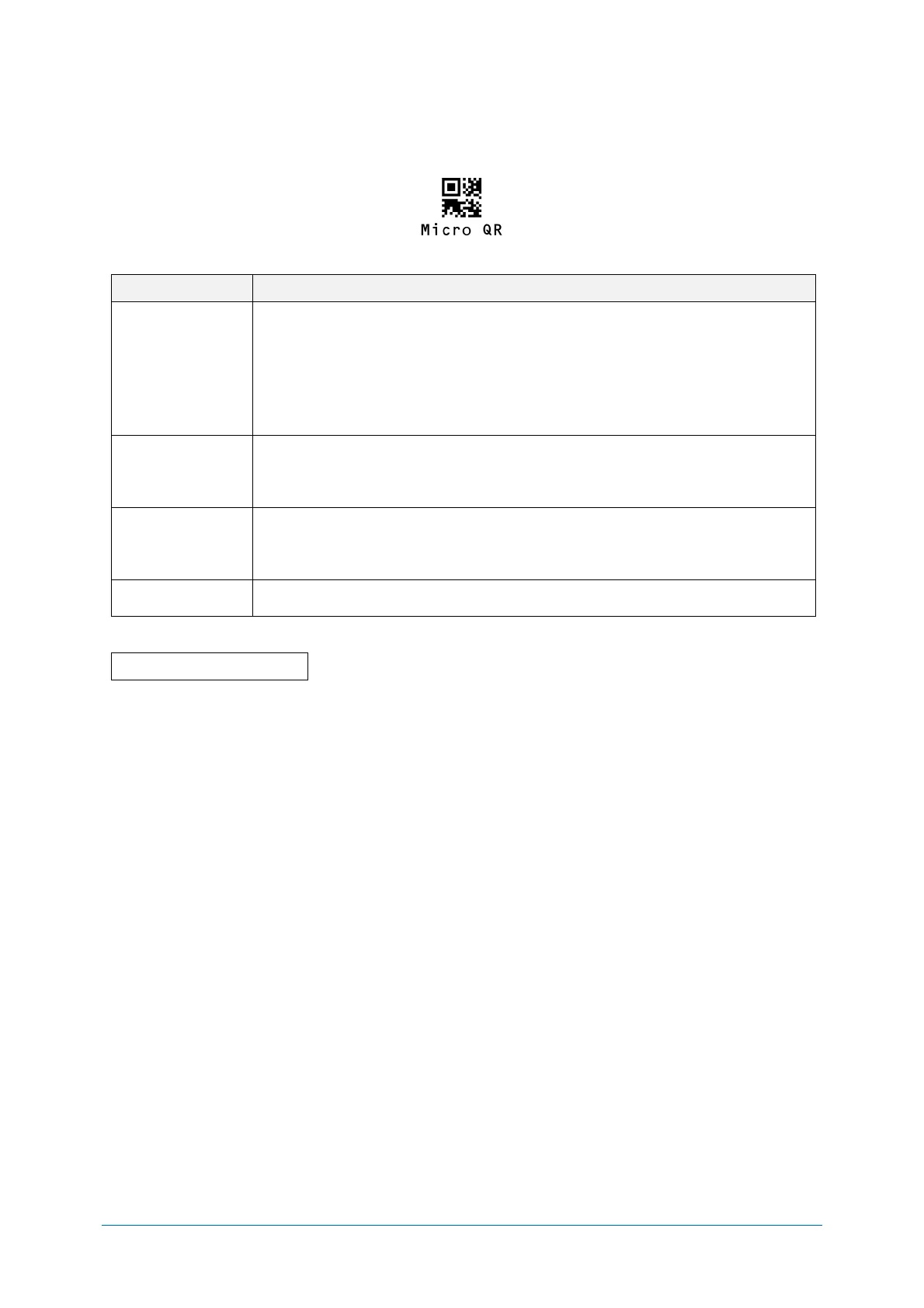

Micro QR code overview
Following are the Micro QR code configuration.
Item
Overview
Character set
1) Numeric data (numbers 0-9)
2) Alphanumeric data (numbers 0-9, capital characters A-Z, 9 special
characters: space, $, %, *, +, -, ., /, :)
3) 8 bit byte data (Latin character based on JIS X 0201, character set of 8 bit
code for Katakana character.)
4) Chinese character (Character specified by the shift-coded expression of JIS
X 0208)
Maximum digits
Alphanumeric data: 21 character
8 bit data: 15 character
Numeric data: 35 character
Chinese character data: 9 character
Symbol size error
correction
Version M1: 11 x 11 module – Error detection only
Version M2: 13 x 13 module – Reed Solomon error correction 2 steps(L, M)
Version M3: 15 x 15 module – Reed Solomon error correction 2 steps(L, M)
Version M4: 17 x 17 module – Reed Solomon error correction 3 steps (L, M, Q)
Negative barcode,
mirror printing
Negative and mirror printed QR code are readable
Transfer data format
Data (variable length)
● Setting item
None in particular
