range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

138

confirm

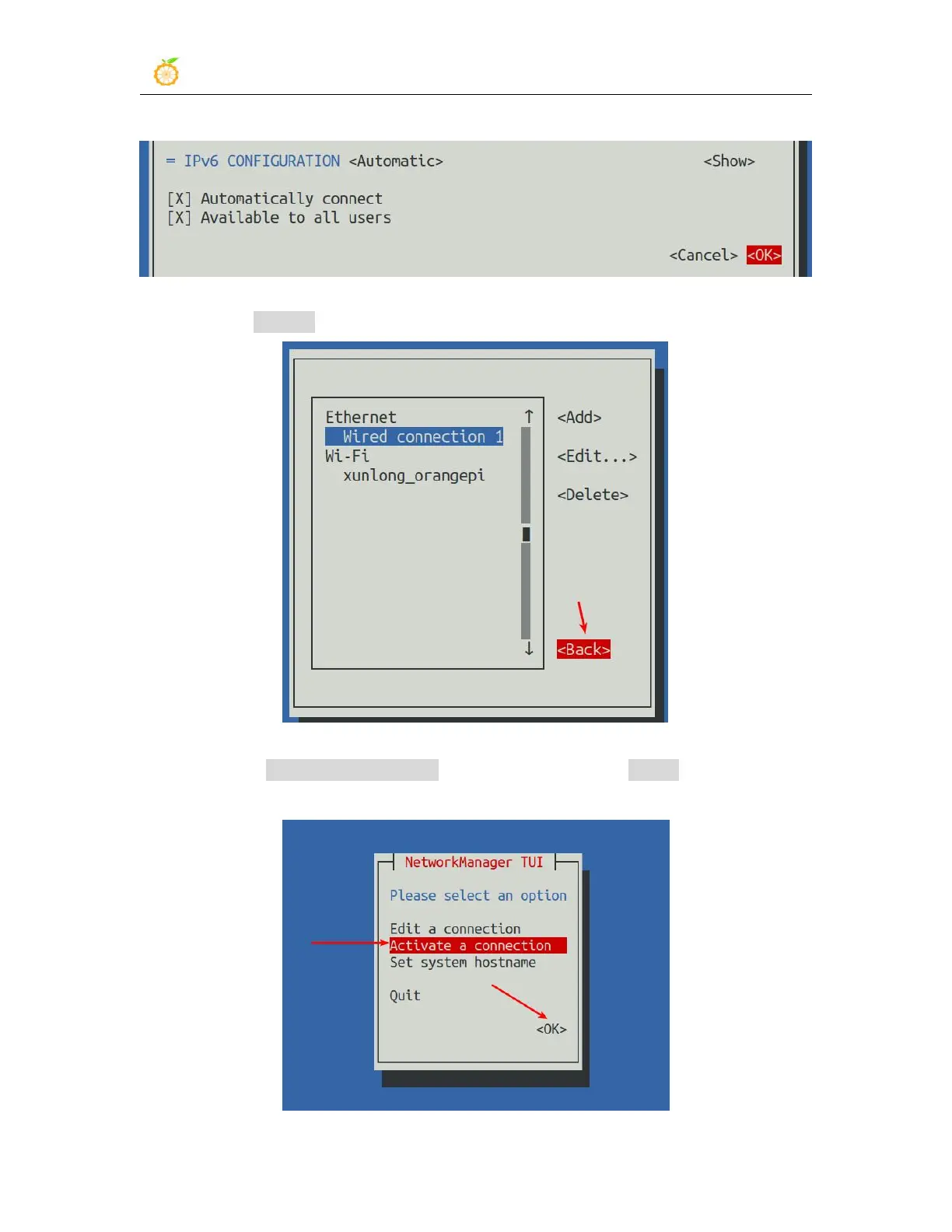

12) Then click<Back> to return to the previous selection interface

13) Then select Activate a connection, then move the cursor to<OK>, and finally click

Enter
