range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd
344

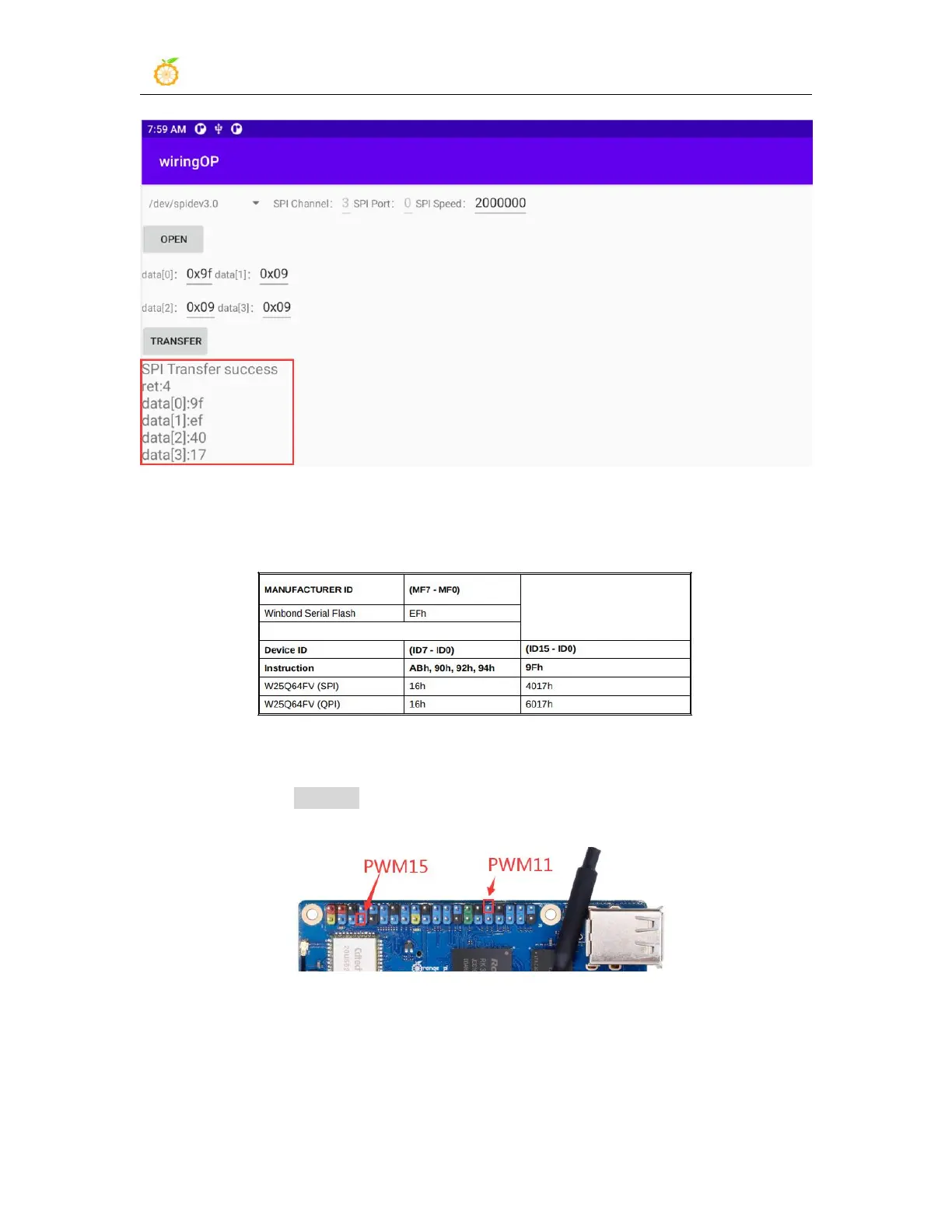

8) The MANUFACTURER ID of the w25q64 module is EFh, and the Device ID is
4017h, corresponding to the value read above (h stands for hexadecimal)
6.8.4. 40pin PWM test
1) Android enables PWM11 by default, and the corresponding pin is located at 40pin as
shown in the figure below
2) First click on the wiringOP icon to open the wiringOP APP
