3.28.
Use of the Raspberry PI's 5-inch screen
3.28.1. Assembly method of Raspberry PI 5-inch screen

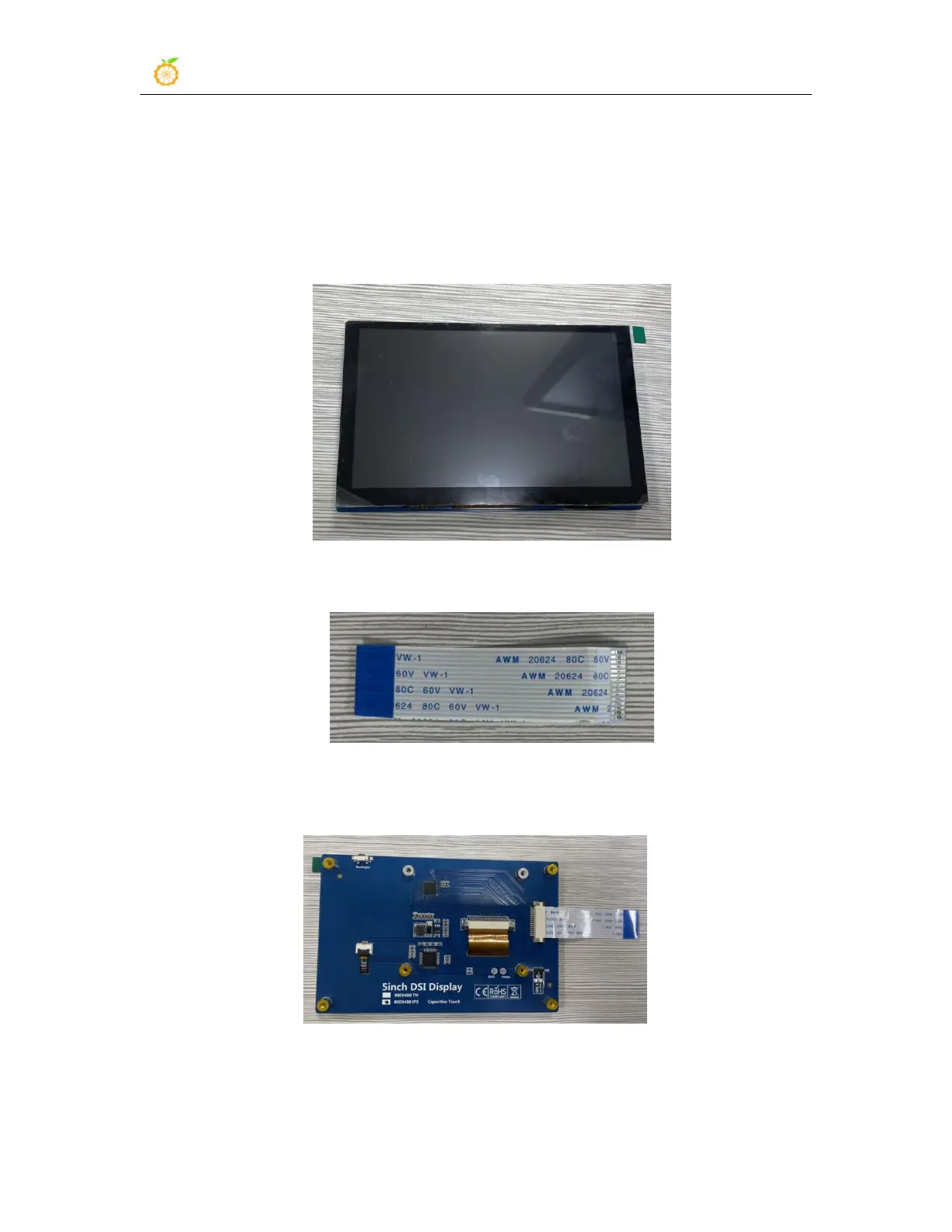

1) First prepare the required accessories
a. Raspberry PI 5-inch MIPI LCD display + touch screen
b. 15pin MIPI cable
2) Then connect the 15pin MIPI cable to the Raspberry PI 5-inch screen in the way
shown below (note the orientation of the insulation surface)
3) Finally connect to the LCD interface of the Orange Pi 3B development board
