ORANGE Pi 3B User Manual

range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd
196
Out: 0: -> 0
Out: 1: -> 1
Out: 2: -> 2
Out: 3: -> 3
Out: 4: -> 4
Out: 5: -> 5^C
c. Test UART9
orangepi@orangepi:~$ sudo gpio serial /dev/ttyS9
[sudo] password for orangepi: #Enter the password here.
Out: 0: -> 0
Out: 1: -> 1
Out: 2: -> 2
Out: 3: -> 3
Out: 4: -> 4
Out: 5: -> 5^C
3.16.6. PWM test method

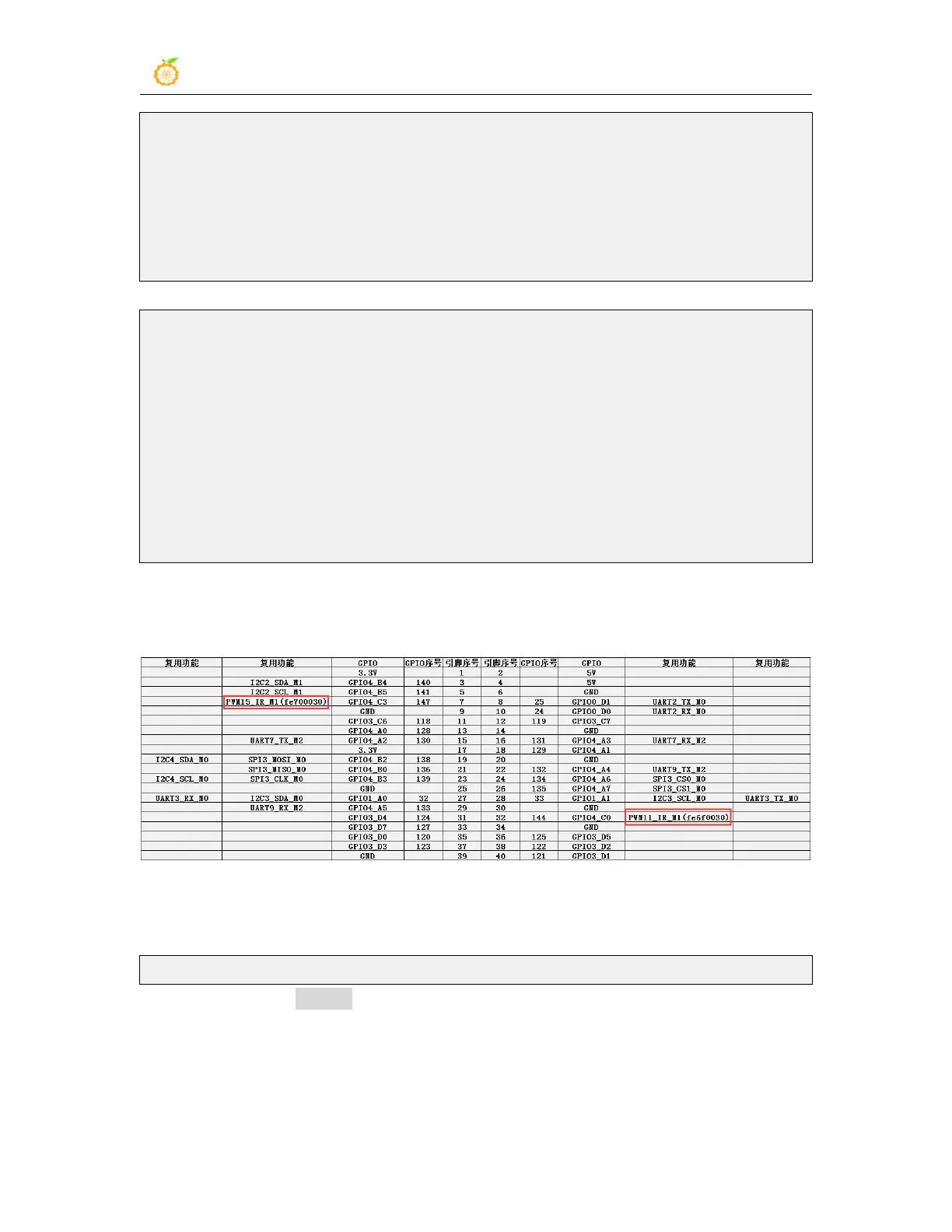

1) As can be seen from the table below, Orange Pi 3B has two pwm channels available
pwm11 and pwm15
2) In the linux system, the PWM in the 40 pin is turned off by default, and it needs to be
turned on manually before it can be used. The detailed steps are as follows:
a. First run orangepi-config, ordinary users remember to add sudo permission
orangepi@orangepi:~$ sudo orangepi-config
b. Then select System

ORANGE Pi 3B Specifications

General

Ethernet	Gigabit Ethernet
Bluetooth	Bluetooth 5.0
USB	2x USB 2.0, 1x USB 3.0
Power Supply	5V/3A via USB-C
RAM	4GB LPDDR4
Storage	MicroSD card slot
Wireless	Wi-Fi 5 (802.11ac)
Video Output	HDMI 2.0
Operating System	Android
