range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

237

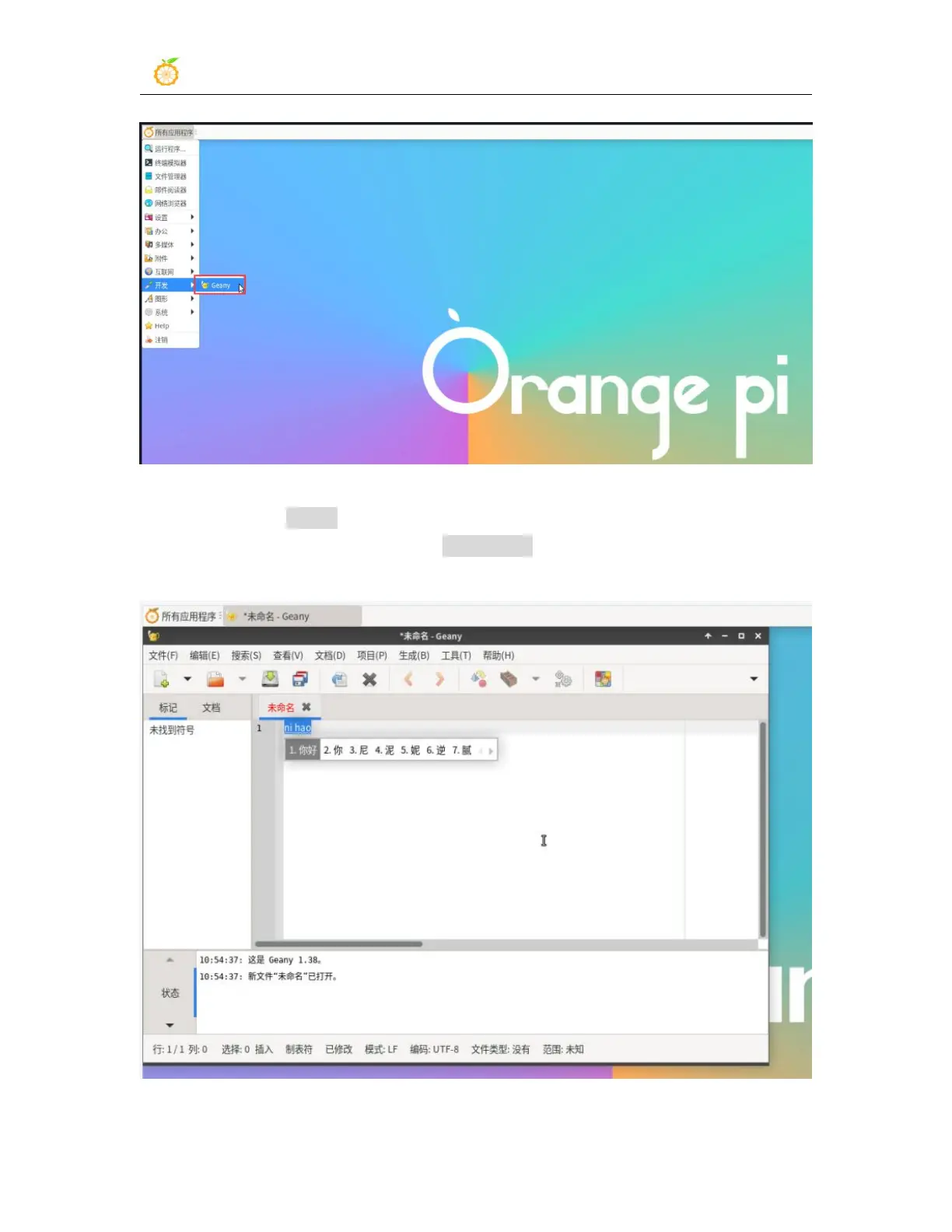

12) After opening Geany, it is still an English input method by default. We can switch

into Chinese input methods through the Ctrl+Space shortcut keys, and then we can enter

Chinese
