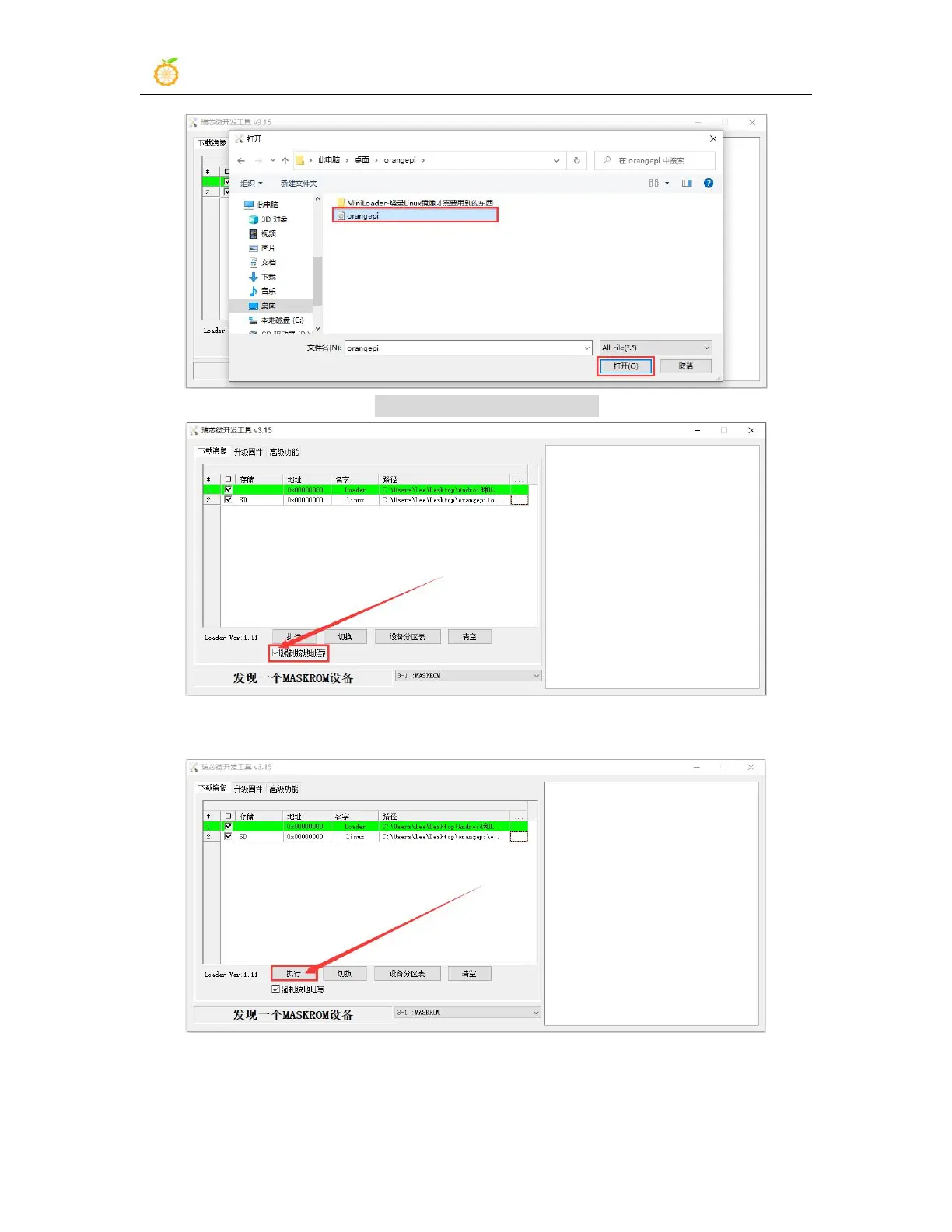

range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

p. Then please check the mandatory write by address option

q. Click the execute button again to start burning the Linux image to the tf card of

the development board

r. The display log after burning the Linux image is shown in the figure below
