range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

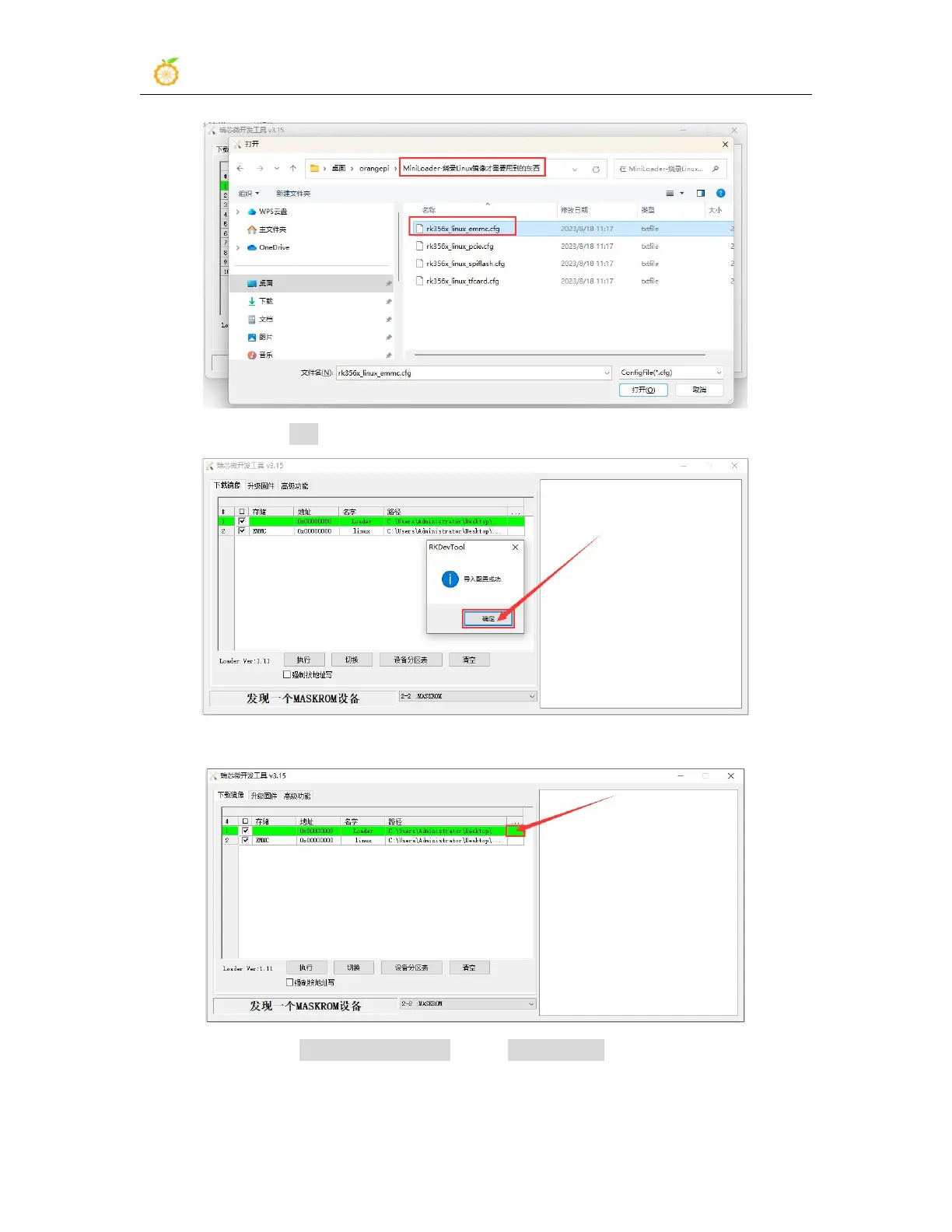

j. Then click OK

k. Then click the position shown in the figure below

l. Then select MiniLoaderAll.bin in the MiniLoader folder downloaded earlier,

and then click to open
