range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd
43
PCIe3.0 and PCIe4.0 NVMe SSDs are also available, but the highest speed is only
PCIe2.0x1.

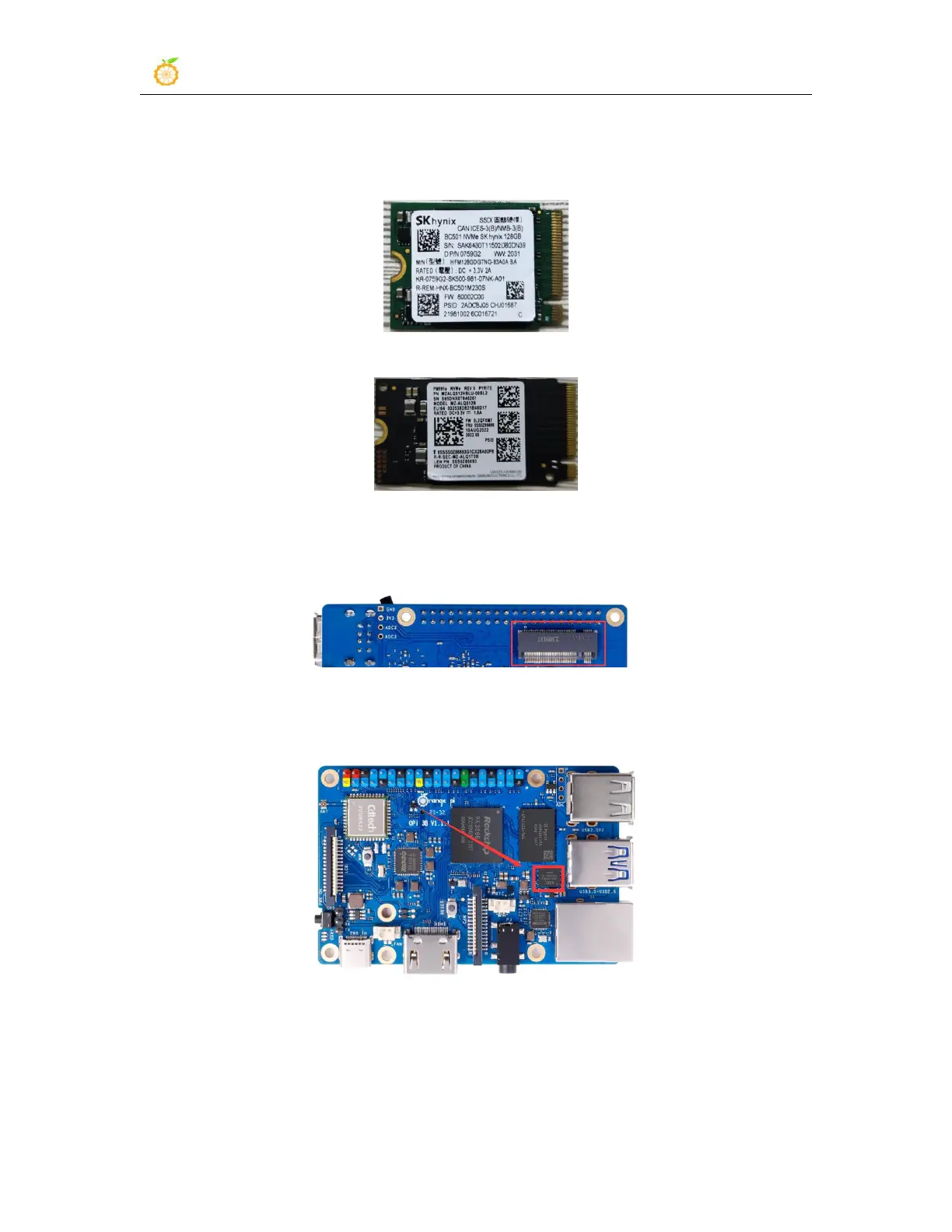

a. The M.2 2230 SSD is as follows
b. The M.2 2242 SSD is as follows
2) Then insert the NVMe SSD into the M.2 PCIe interface of the development board and
fix it
3) The position of the SPI Flash on the development board is shown in the figure below,
no other settings are required before starting the programming
4) Then you need to prepare a good quality USB2.0 male-to-male data cable
