ORANGE Pi 3B - Page 59

To Next Page

To Previous Page

range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

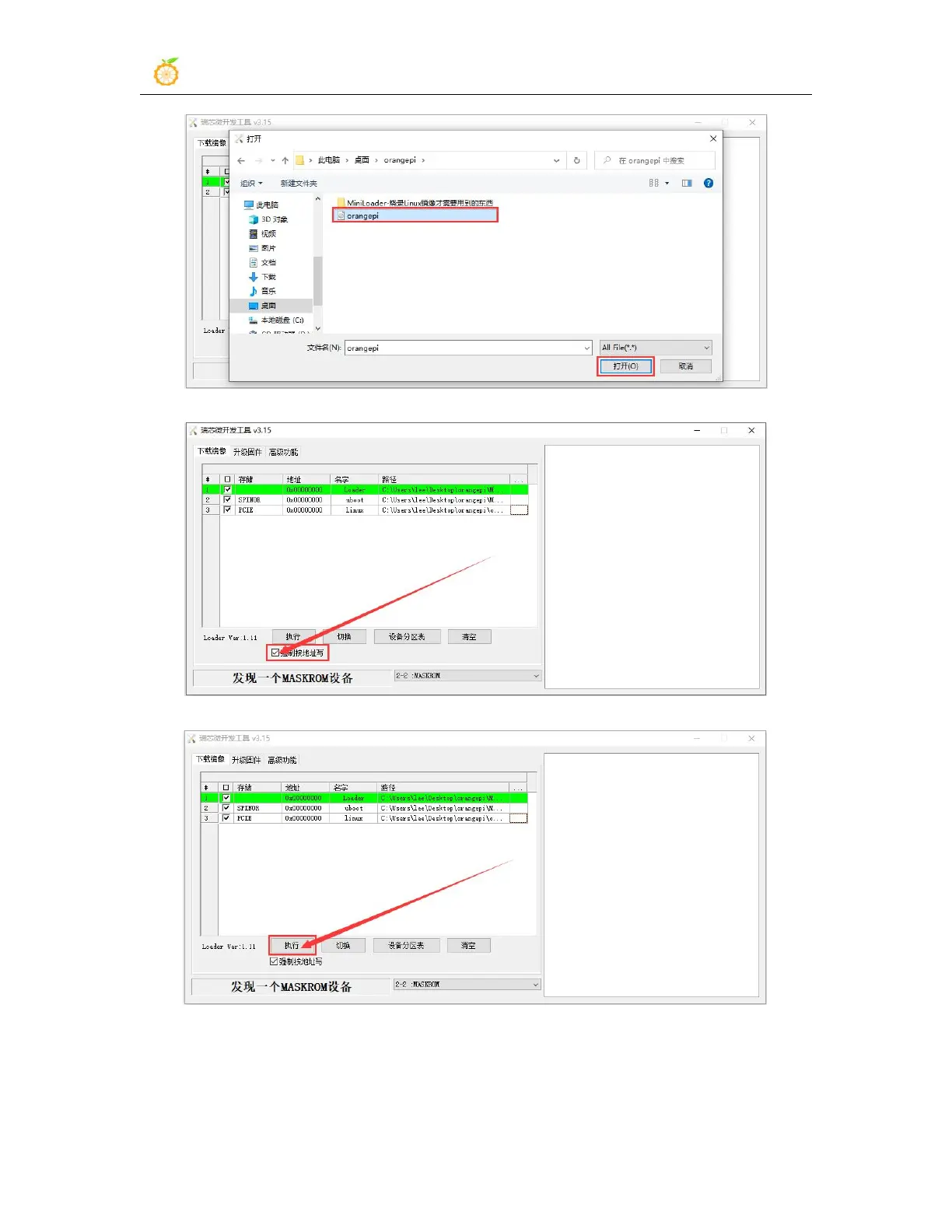

q. Then please check the option to force writing by address

r. Click the Execute button again to start burning the Linux image to the SSD

s. The log displayed after burning the Linux image is shown in the figure below
