range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd

i. Then enter the password orangepi of the Linux system on the development board,

and it will start burning the Linux image to the SSD

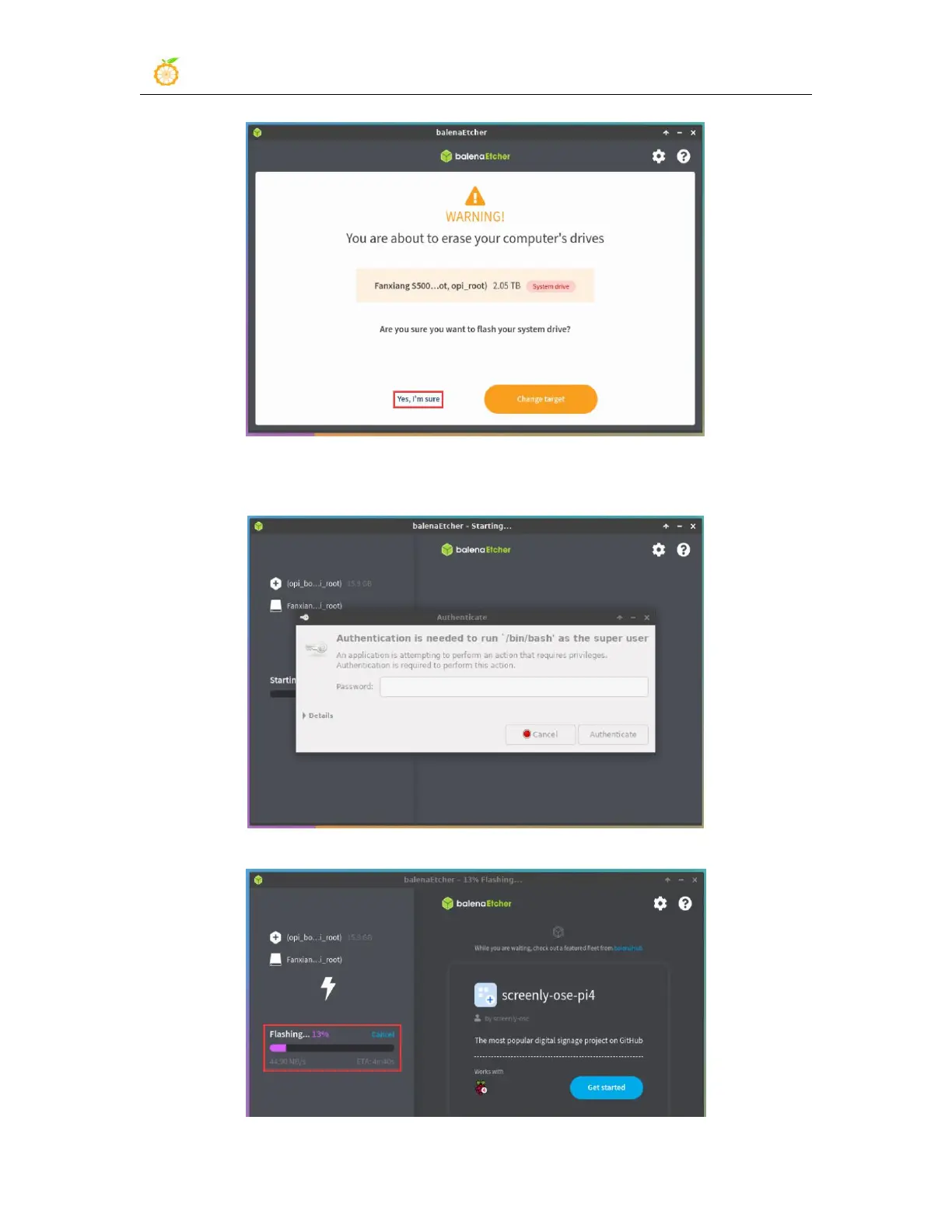

j. The display of the burning process is as follows:
