range Pi User Manual Copyright reserved by Shenzhen Xunlong Software Co., Ltd
85

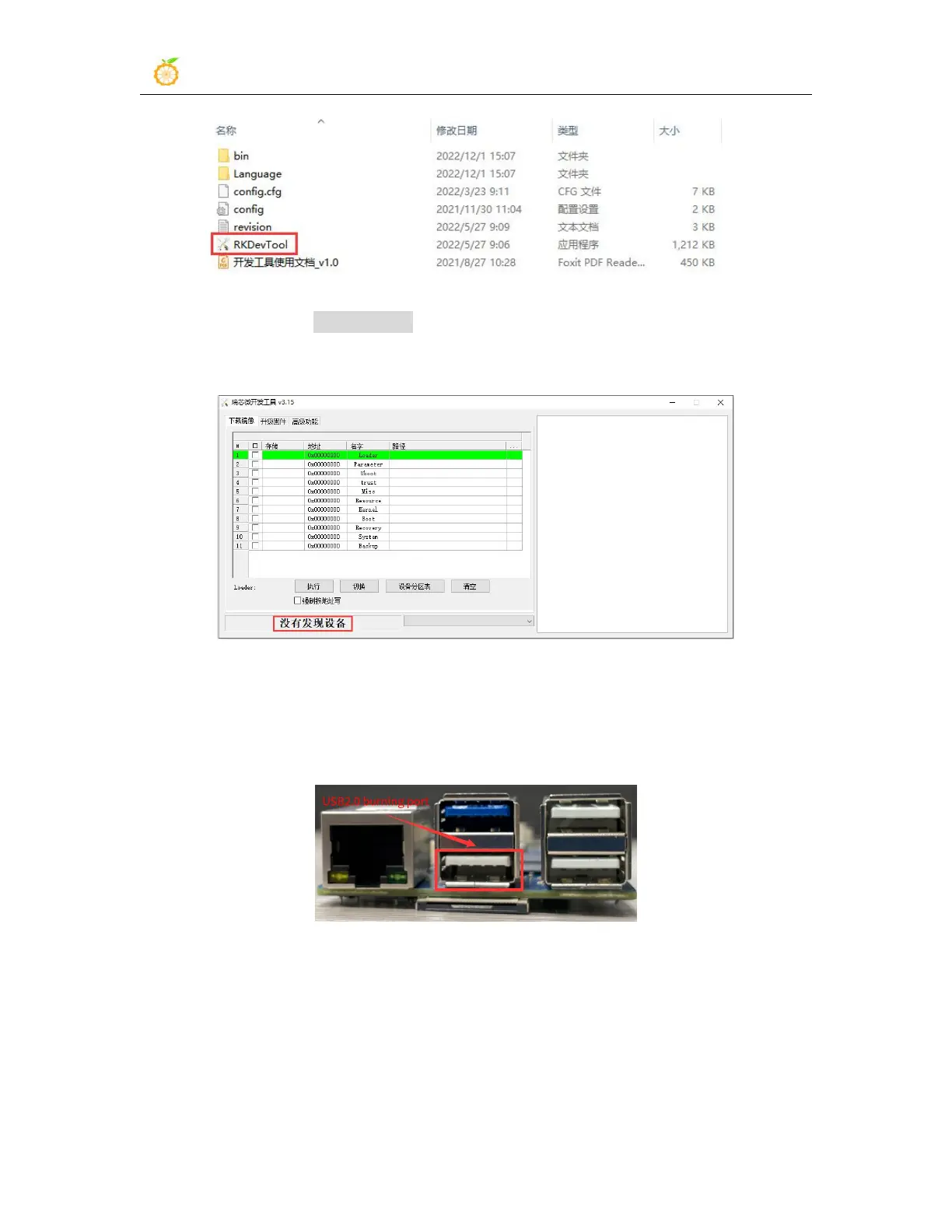

9) After opening the RKDevTool burning tool, because the computer is not connected
to the development board through the USB2.0 male-to-male data cable at this time, the
lower left corner will prompt "No device found"
10) Then start burning the Android image into eMMC
a. First, connect the development board to the Windows computer through the
USB2.0 male-to-male data cable. The position of the USB2.0 programming
interface of the development board is shown in the figure below
b. Then make sure that the development board is not inserted into the TF card and
not connected to the power supply
c. Then press and hold the MaskROM button on the development board, the
position of the MaskROM button on the development board is shown in the
figure below:
