Notes • If two or three expansion units are
installed, cut the cabinet covers on
the lower cabinets to allow the cords
from the upper cabinet to go down
through the cabinet covers. To protect
the cords, smooth the cut edges.
8. Tie all of the cords into a bundle. If
other cords are exposed in the upper
cabinets, tie them also.
9. Close the cabinet cover and secure
the outside screw.
10. Cover the cords with the cord holder
(included).
11. Fix the cords to the wall as shown so
that the front cover can be opened.
Programming References
Section 4, System Programming,
[109] Expansion Card / Unit Type
Feature References
Section 3, Features,
Module Expansion

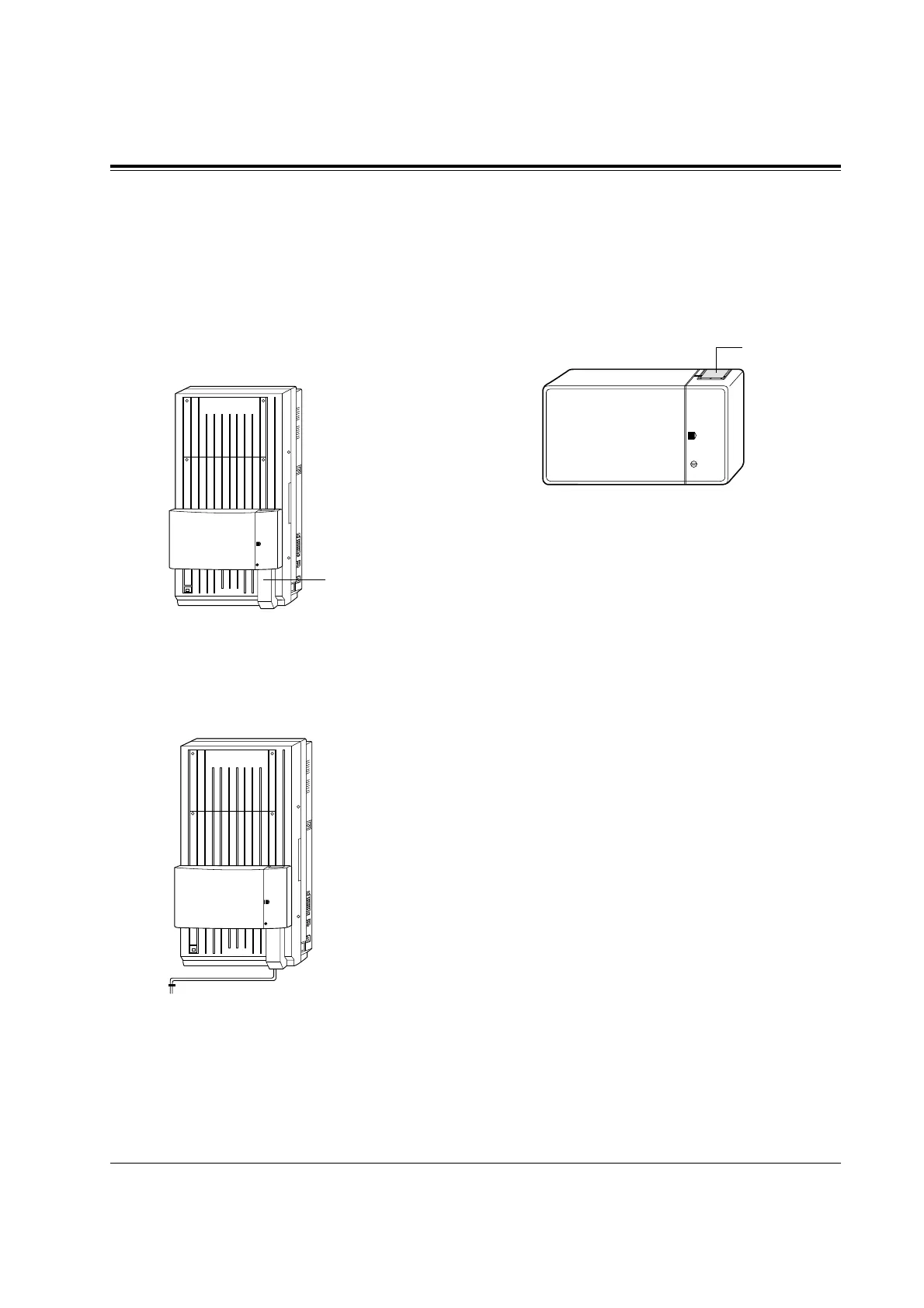

Cord holder
Cut here
