2-44 Installation
2.4.9 Doorphone and Door Opener
Connection
2. Connection for KX-TD816

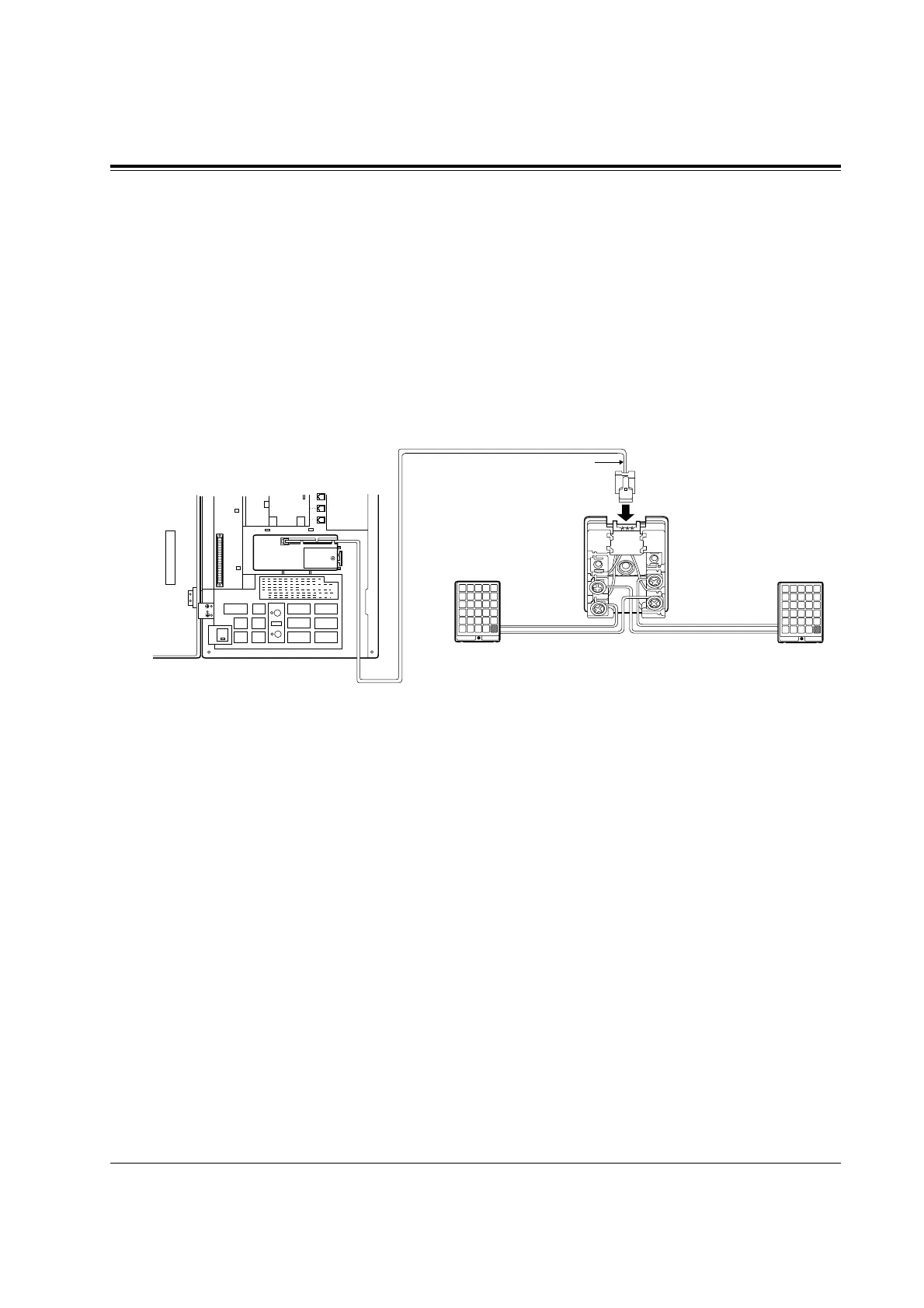

Wiring of the Doorphone
1. Connect the Doorphone Card to the terminal box using a 4-
conductor modular connector.
2. Connect the wires of doorphone 1 to the red and green screws of
the terminal box.
3. Connect the wires of doorphone 2 to the yellow and black
screws of the terminal box.
PanasonicPanasonic
PanasonicPanasonic
4-conductor wiring
is required.
Terminal Box
Doorphone 1
(KX-T30865)
Doorphone 2
(KX-T30865)
Yellow
Red
Black
Green
