2-46 Installation
2.4.9 Doorphone and Door Opener
Connection
2. Connection for KX-TD1232

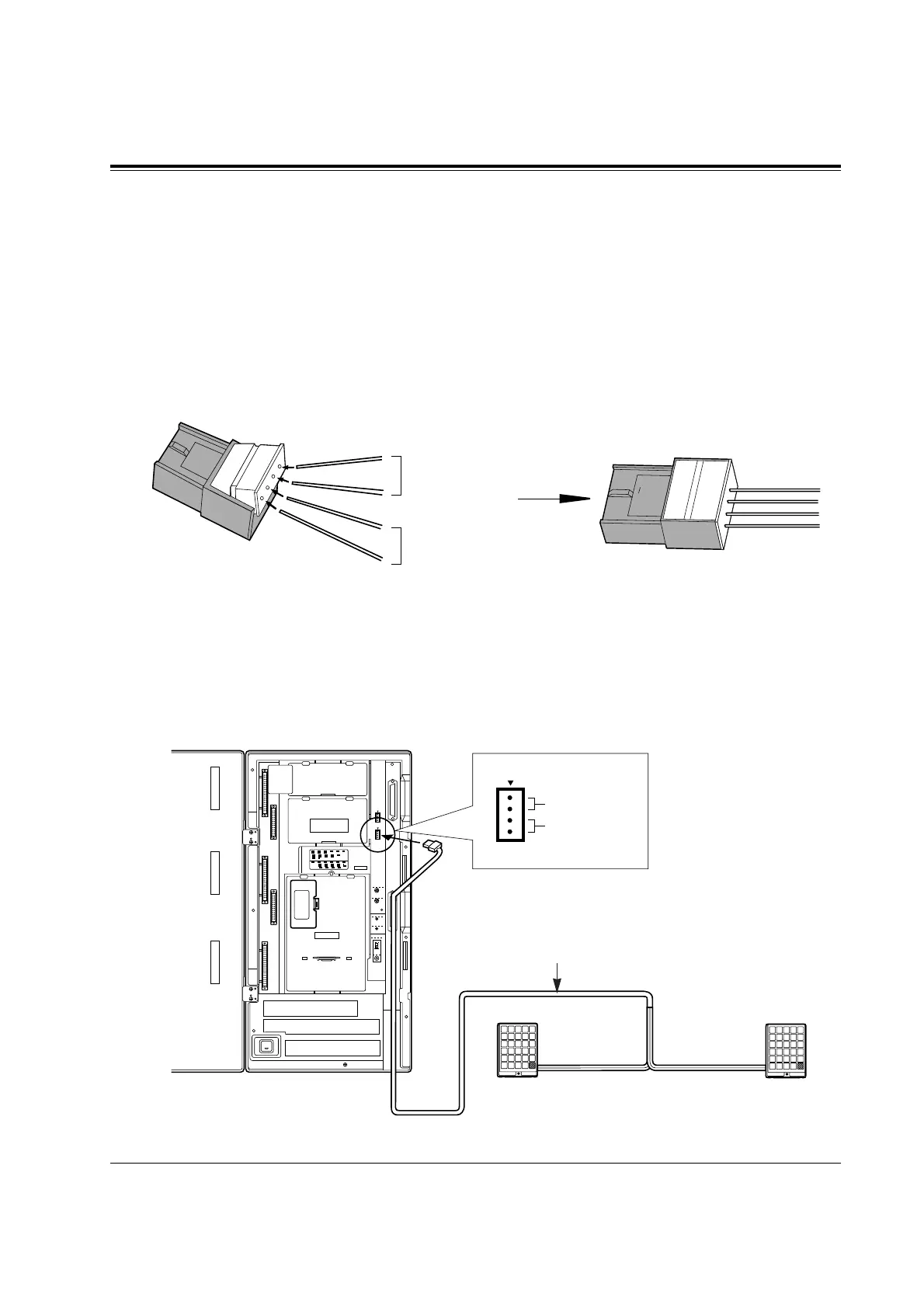

Use 4-pin plugs (included) to connect doorphone or door opener. A
plug is able to connect up to two doorphones or door openers. 4-
conductor wiring is required.
1. Insert required wires into the holes in a plug.
Fix the transparent part into the black part.
Note: Do not strip the wires. Insert the wires all the way into the plug.
2. Insert the plug into the connector in the main unit.
3. Connect the wires to the doorphone (1 or/and 2) or door opener
(1 or/and 2).
