PENKO 1020 - Profibus Connection Wiring

1020 Indicator
3. Load cell / power connection
PENKO 1020 Profibus
PIN No. Symbol Name Name
1: SHIELD SHIELD Protecve Ground
2: RP Reserved for Power
3: B/B Rxd/TxD-P Receive/Transmit-Data-P
4: CNTR-P Control-P
5: C/C DGND Data Ground
6: VP Voltage plus
7: RP Reserved for Power
8: A/A RxD/Txd-N Receive/Transmit-Data-N
9: CNTR-N Control-N

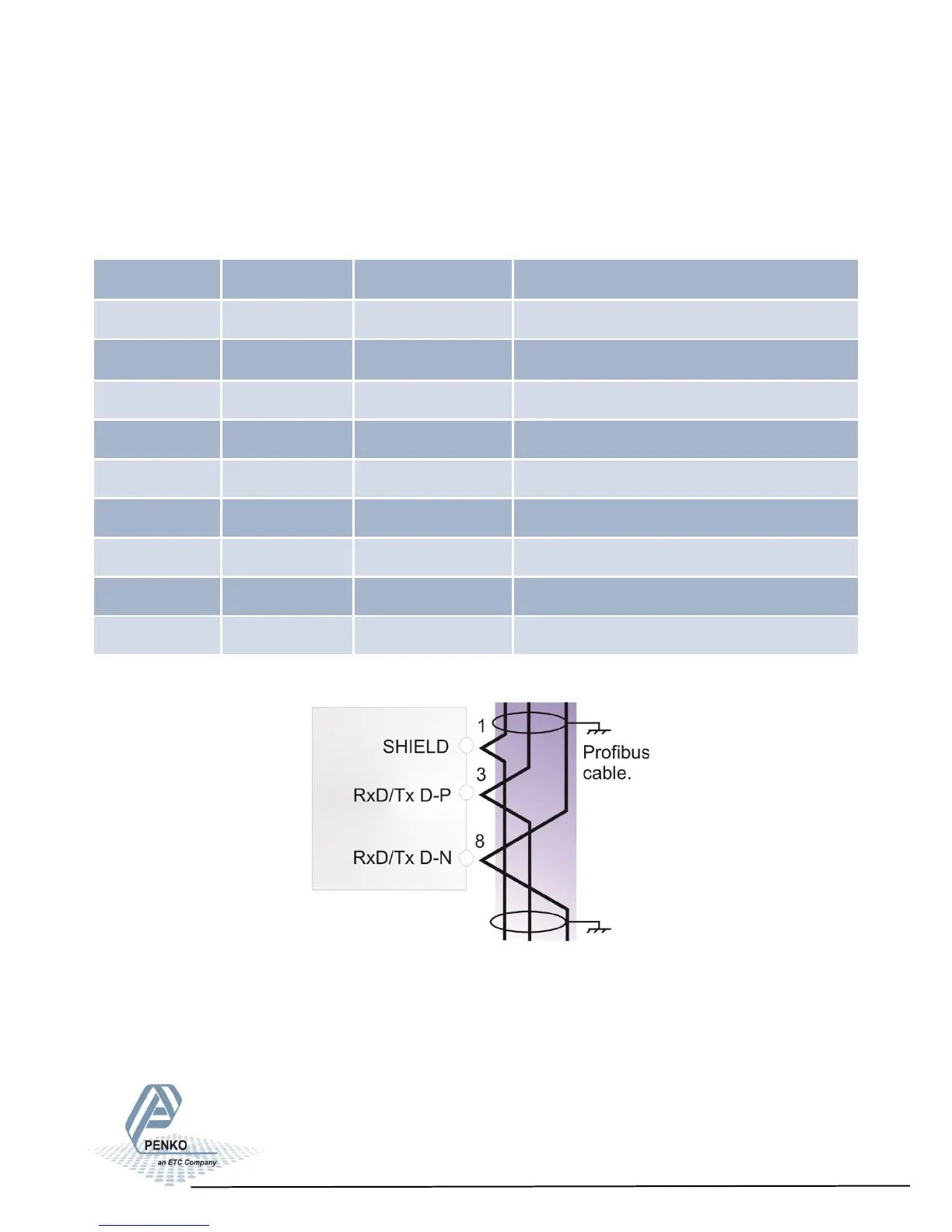

Profibus connection wiring
