PENKO 1020 - PENKO 1020 Profibus Connections

1020 Indicator

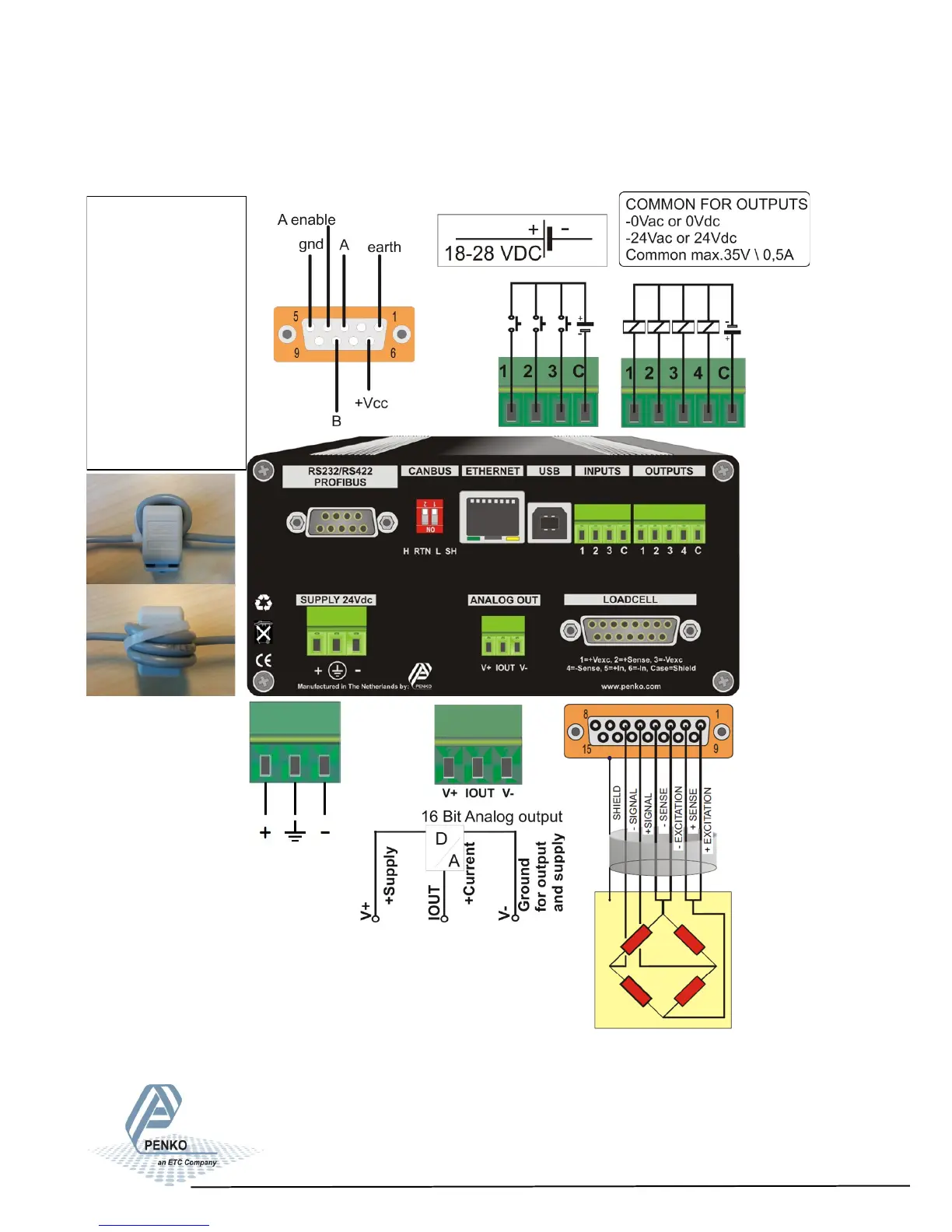

3. Load cell / power connection -continue-
PENKO 1020 Profibus
9
Power connection
Supply 18 - 32 Vdc
Load cell connection
Analogue output mA
Option
Outputs
This product is intended to be supplied
by a Class 2 or Limited Power Source,
rate 18 - 32 Vdc, 0.4A@24Vdc.
Inputs
The power cable
must be looped
through a ferrite
core 3 mes.
Recommended
ferrite core:
Würth Elektronik
7427154
