5.1.3. Menu Settings -System Setup - In/Outputs - continue-
1020 Indicator
Choose between the following options:
RAW: Register the value from 0 to 6500 parts.
0-24mA: Input value 0 to 24mA will be calculated form 0 to 100,00%.
0-20mA: Input value 0 to 20mA will be calculated form 0 to 100,00%.
4-20mA: Input value 4 to 20mA will be calculated form 0 to 100,00%.
4-24mA: Input value 4 to 24mA will be calculated form 0 to 100,00%.

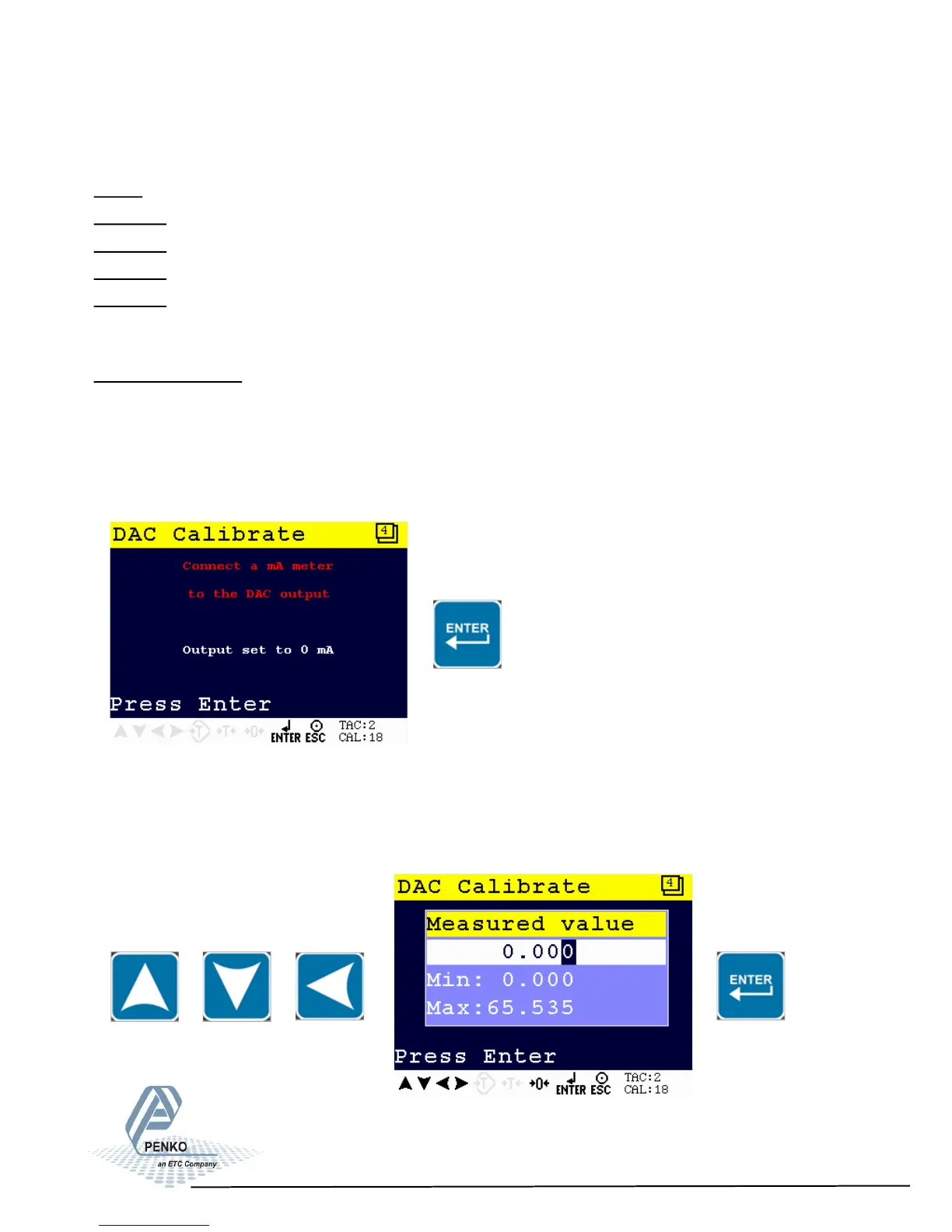

DAC Calibration
In this menu, the DAC can be calibrated using a mA meter.
Calibration:
Connect the mA meter to the DAC output. The output of the 1020 is set to 0mA
and press Enter to continue
Use the UP, DOWN and LEFT key to enter the reference value. The UP and
DOWN keys are used for changing the number (1-9), the LEFT key is used for
changing the position of the cursor. Confirm with Enter.
60
