1020 Indicator

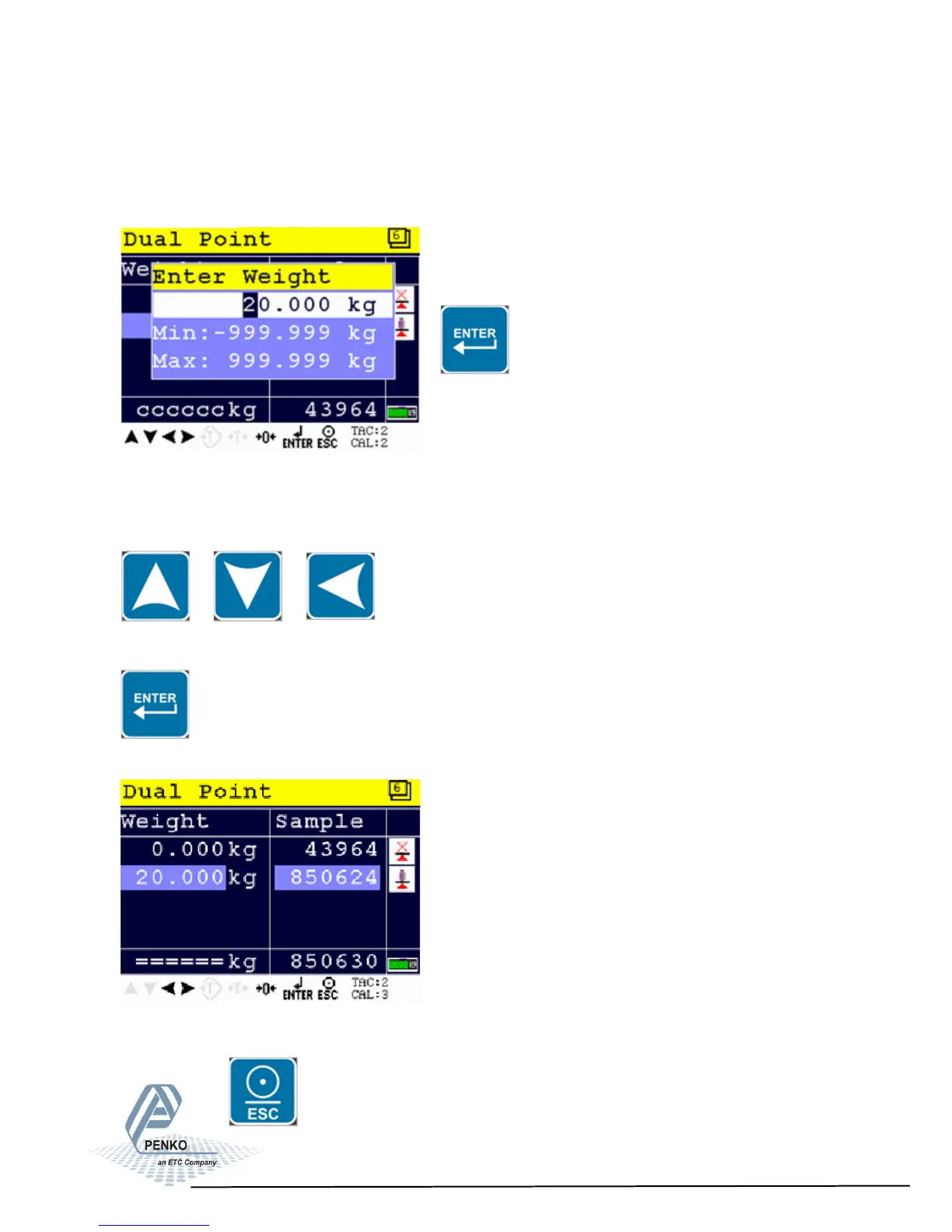

4.2. First use of indicator -Calibration - continue-
For setting the second calibration point a reference value is needed. For this
example, an actual reference weight of 20 kg was used.
Use the DOWN key to select the second calibration point and press Enter.
Use the UP, DOWN and LEFT key to enter the reference value. The UP and
DOWN keys are used for changing the number (1-9), the LEFT key is used for
changing the position of the cursor.
Load the weigher with the reference value and press the Enter key.
The calibration was successful when the following screen is visible:
Press the Esc key six times to go back to the main screen.
x 6
22
