13 - 28
Adjustment
13
.04.24

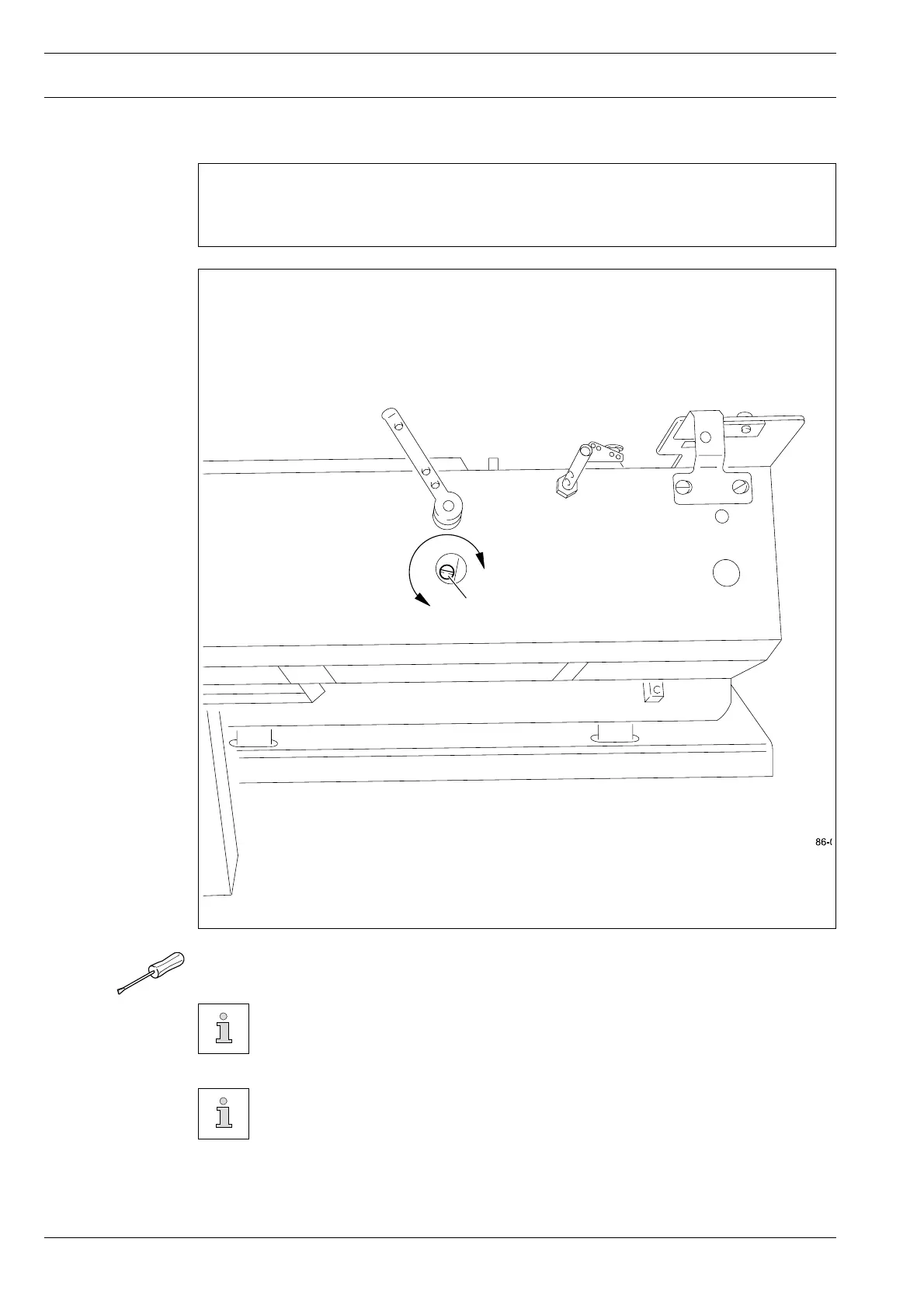

Roller-presser pressure
Requirement
The material must be fed reliably. No pressure marks may be made on the material.
Fig. 13 - 24
●
Adjust the presser foot pressure with screw
1
in accordance with the
requirement
.
Screw
1
is located under a cover.
If the presser foot pressure is low, the lowering speed of the presser foot can
be increased with parameter
„202“
, see
Chapter 13.08 Parameter settings
.
1
+
-
103
105
