Pfaff 1571 - Table Top Cutout

To Next Page

To Previous Page

8 - 12

Installation and commissioning

Stand position

Part no. 906-3750-000

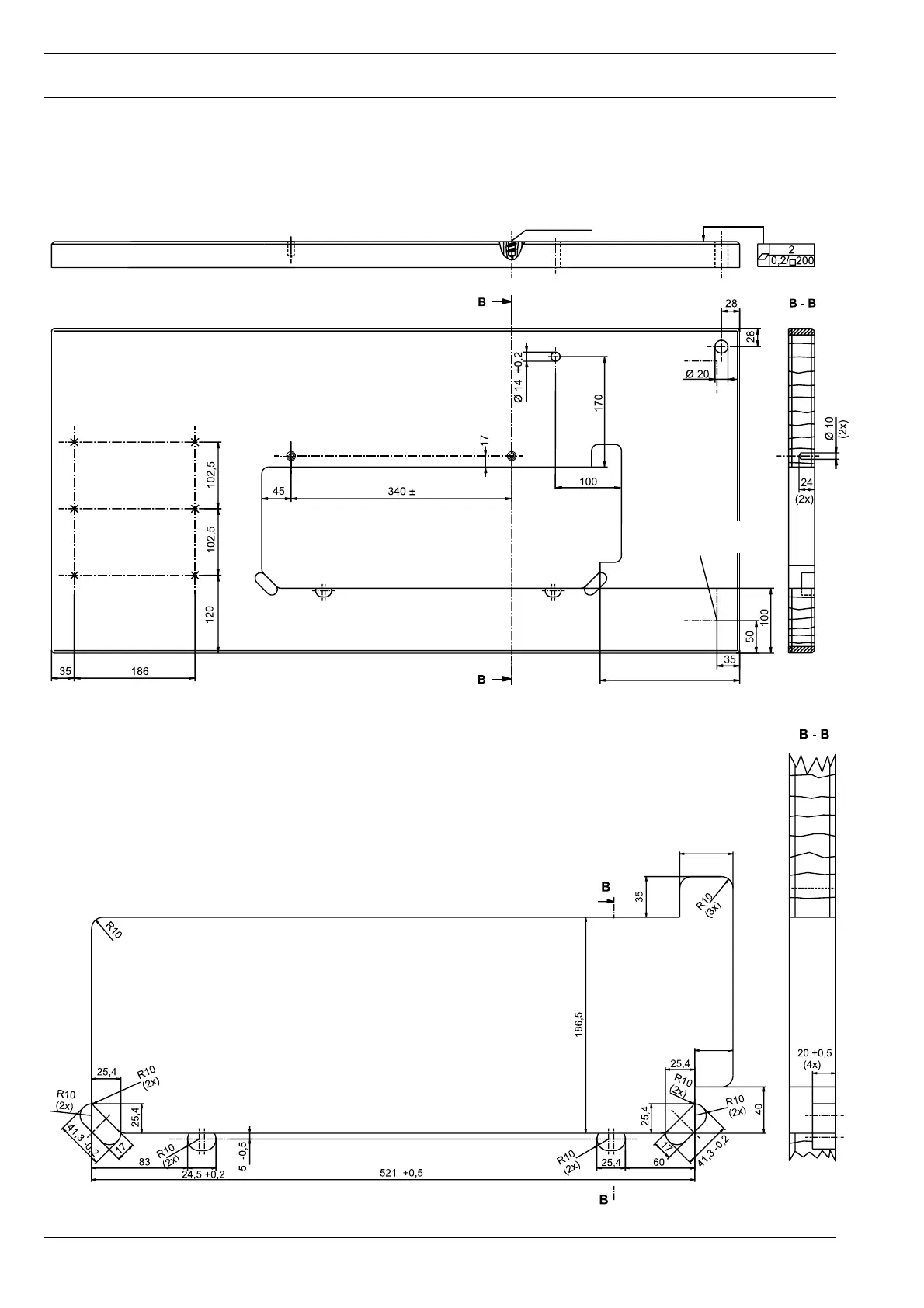

8.04 Table top cutout

170

Screwed insert DIN 7965 (2x)

Part no. 12-177 106-05
