Pfaff 1571 - Roller Presser;Feed Wheel Clearance

13 - 19
Adjustment
13.04.15 Clearance between roller presser and feed wheel
Requirement
With lever 1 raised the clearance between the roller presser and the feed wheel must be
7 mm.
● Raise lever 1.
● Move the presser foot bar ( screws 2 ) in accordance with the requirement. Take care to
ensure that the roller presser is parallel to the feed wheel.
2
1

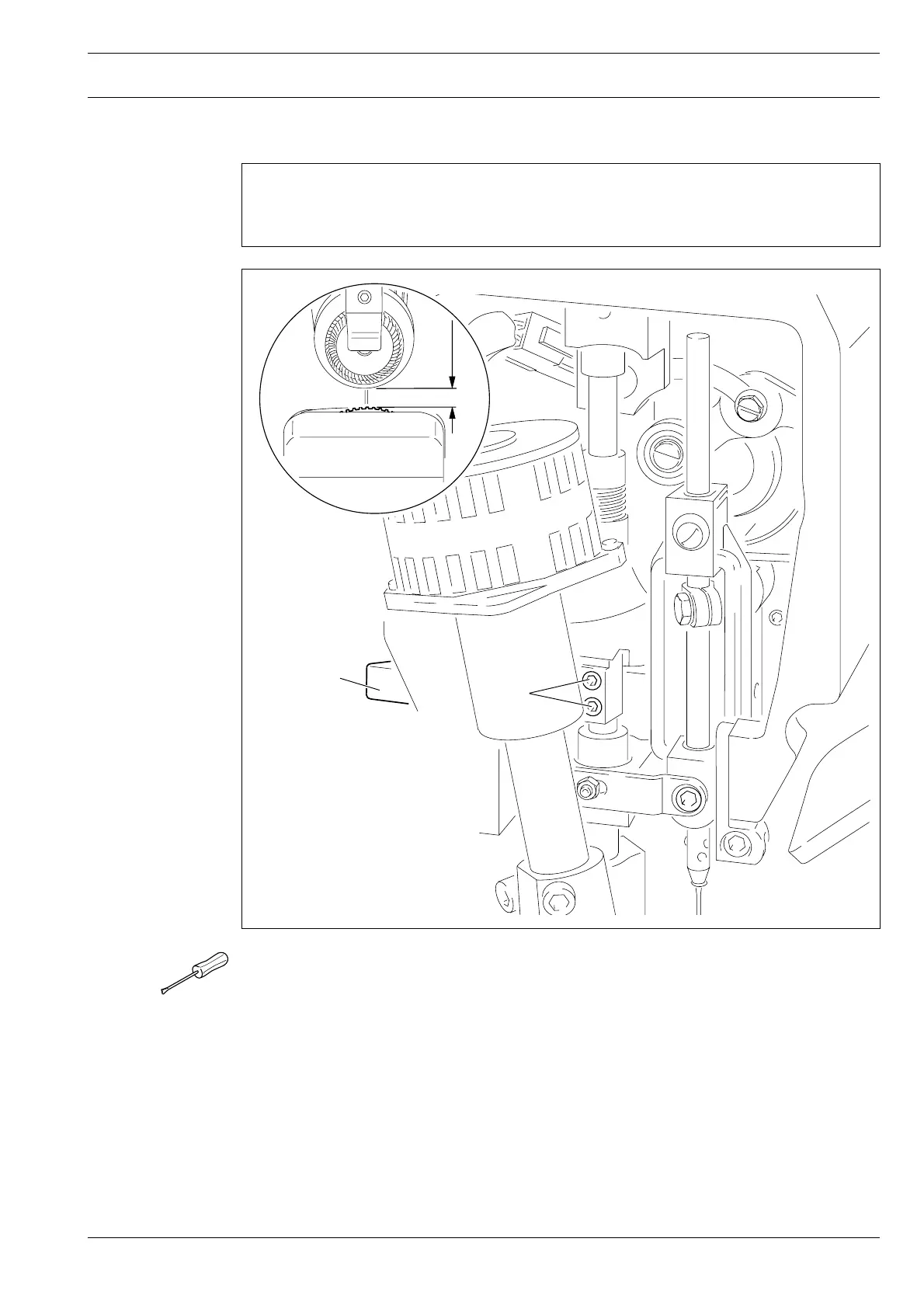

Fig. 13 - 15
61-040
7 mm
