Pfaff 1571 - Knife Stroke Adjustment (Model 1571)

13 - 33
Adjustment
3,5
61-053

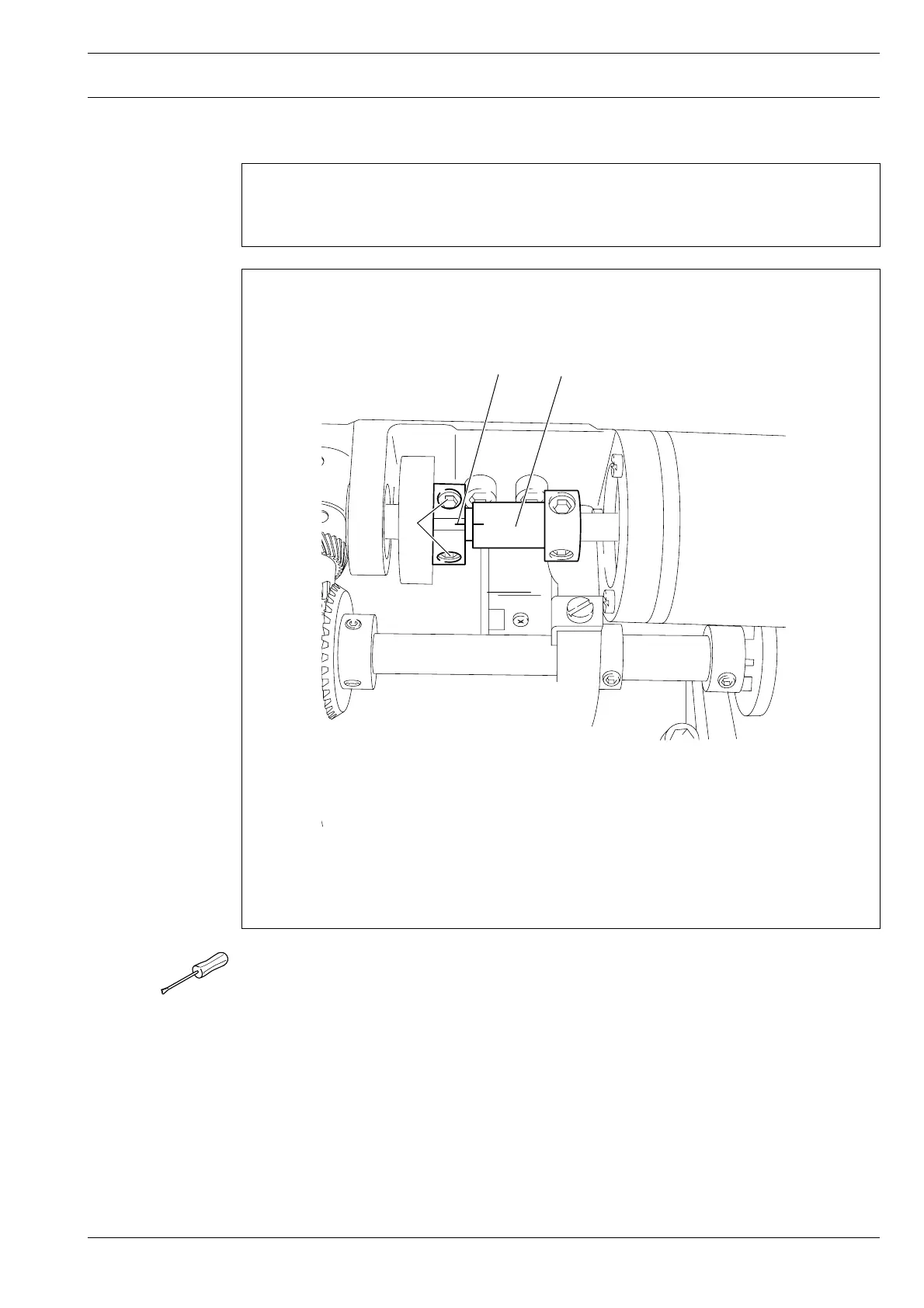

Fig. 13 - 29
● Turn eccentric 1 (screws 2) so that the marking of the desired cutting stroke is opposite
the marking on clamp collar 3.
13.05.03 Knife stroke on model 1571
Requirement
The knife stroke can be adjusted over a range from 1.0 to 3.5 mm, allowing the best
possible adaption to all materials used.
1
2
