Adjustment
86
-
023
13.07.04 Position of the thread catcher
Requirement
1. The bottom edge of the thread catcher 1 should be at a distance of 0.1 mm from the
positioning finger of the bobbin case 5.
2. When the thread trimmer is in its neutral position, the rear edge of thread catcher
should be positioned approx. 2.5 - 3 mm behind the edge of the knife.
● Move thread catcher 1 (screws 2, two screws) in accordance with requirement 1.
● Turn thread catcher 1 (screw 3) in accordance with requirement 2.
Thread catcher 1 must be parallel to the surface of the thread catcher holder 4.

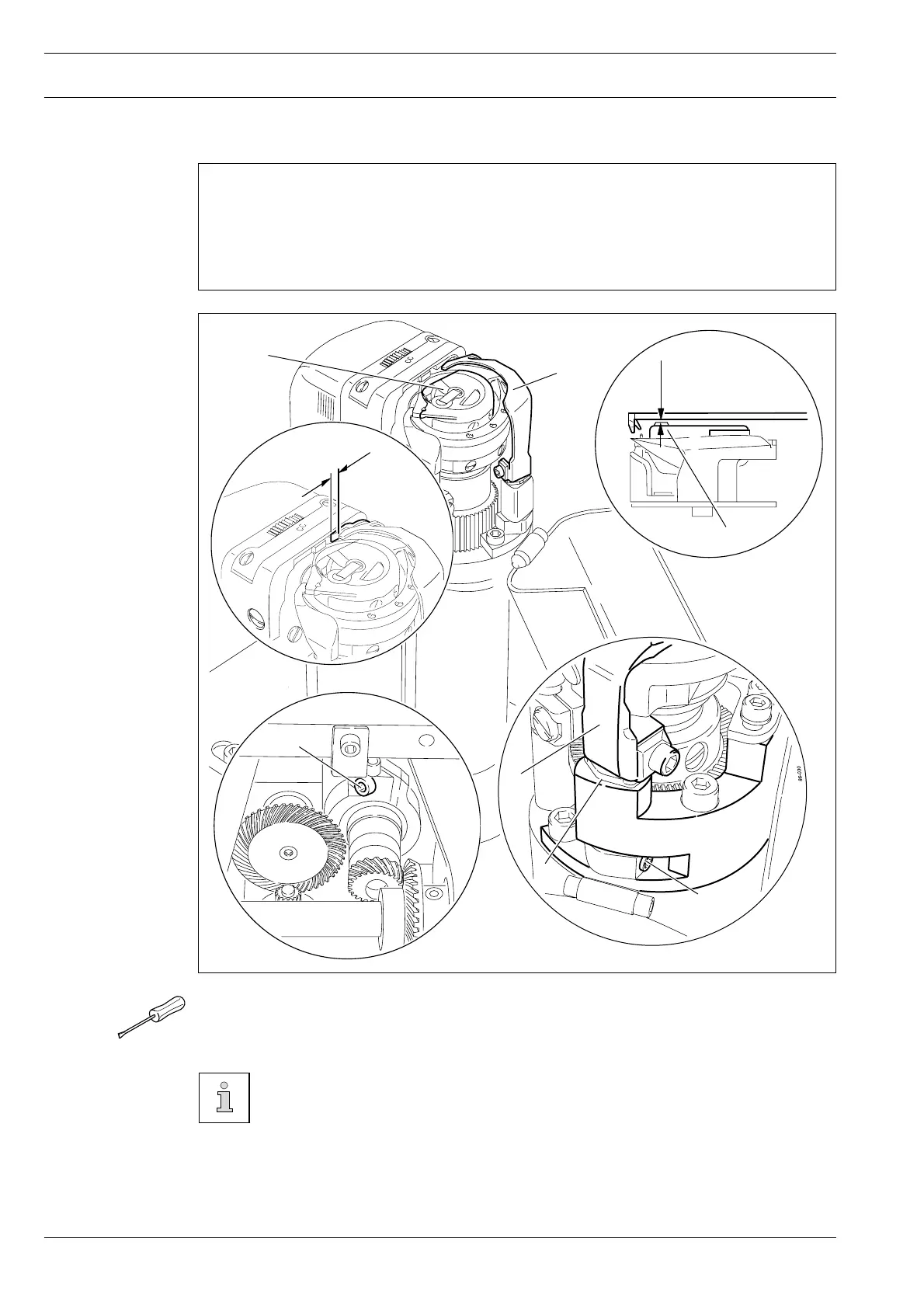

Fig. 13 - 42
1
5
0,1mm
5
86-022
2,5 - 3 mm
2
1
4
86-044
3
