13 - 30
Adjustment
13
.04.26
Re-engage safety coupling
The coupling
1
is set by the manufacturer. When the thread jams, the
coupling
1
disengages in order to avoid damage to the hooks.
A description of how to engage the coupling follows.

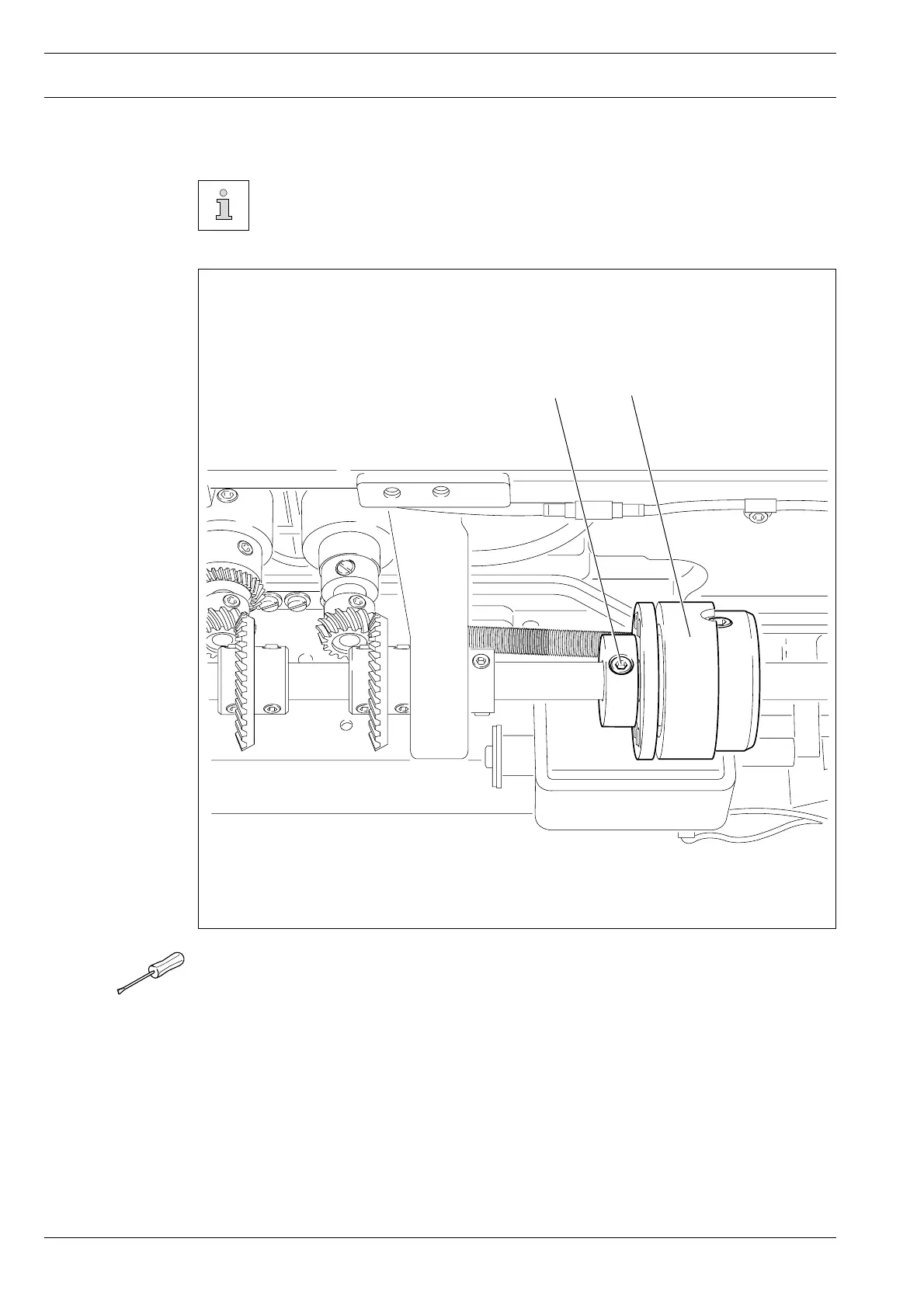

Fig. 13 - 26
●
Remove jammed thread.
●
Hold coupling
1
with screw
2
and turn the balance wheel, until you feel coupling
1
snap
back into place again.
2
1
105
107
