9 - 1
Setting up
9 Setting up
All instructions and regulations in this instruction manual must be observed.
Special attention must be paid to all safety regulations!
All setting-up work must only be carried out by personnel with the appropriate
training. For all setting-up work the machine must be disconnected from its po-
wer supply by turning off the on/off switch, or removing the plug from the
electric power socket.

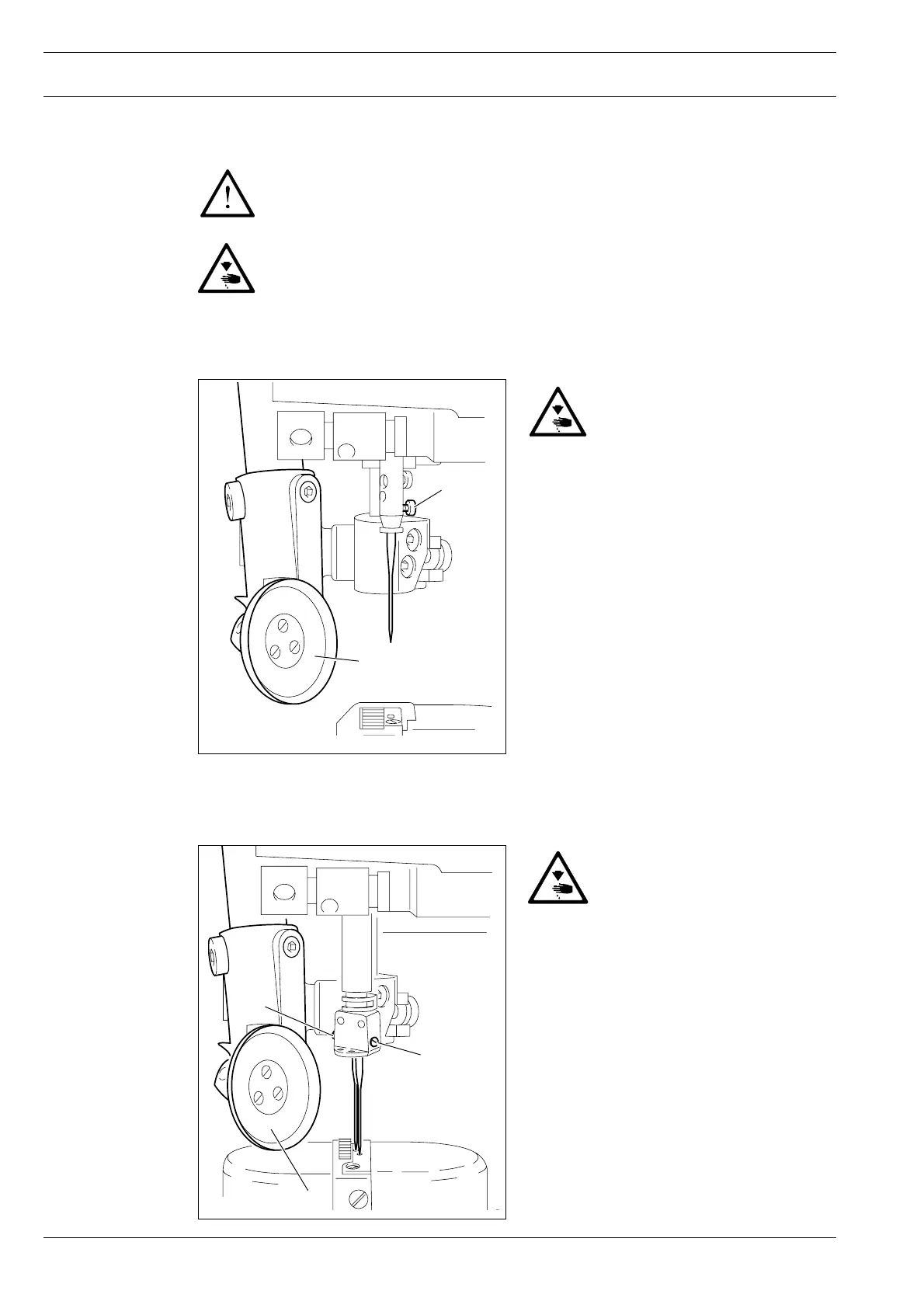

9.01 Inserting the needle on model PFAFF 1571 and 1591
Switch the machine off!
Danger of injury if the machine
is started accidentally!
Only use needles of system 134.
● Raise the roller presser 1 and swing it
out.
● Loosen screw 2 and insert the needle as
far as possible. The long groove must
face to the right on model 1571 and to
the left on model 1591.
● Tighten screw 2 and swing roller presser
1 back into position.
9.02 Inserting the needle on model 1574
Switch the machine off!
Danger of injury if the machine
is started accidentally!
Only use needles of system 134-35.
● Raise the roller presser 1 and swing it
out.
● Loosen screws 2 and insert the needles
so that the long groove of the left needle
is facing right, and that of the right
needle is facing left.
● Tighten screws 2 and swing roller
presser 1 back into position.
Fig. 9 - 01
2
1
6-001
1
2
2
Fig. 9 - 02
