Adjustment
6
3-032
13.04.17 Retainer (only on the PFAFF 1574)
Requirement
Retainer 1 should
1. Be as near to the needle as possible, seen in the direction of sewing, and
2. Centred to the needle, seen crosswise to the direction of sewing.
3. When the roller presser is lowered, the clearance between the retainer 1 and the
workpiece should be 0.2 - 0.3 mm.
● Adjust retainer 1 (screw 2) in accordance with requirement 3.
● Adjust holder 3 (screw 4) in accordance with requirement 1.
● Adjust holder 5 (screws 6) in accordance with requirement 2.

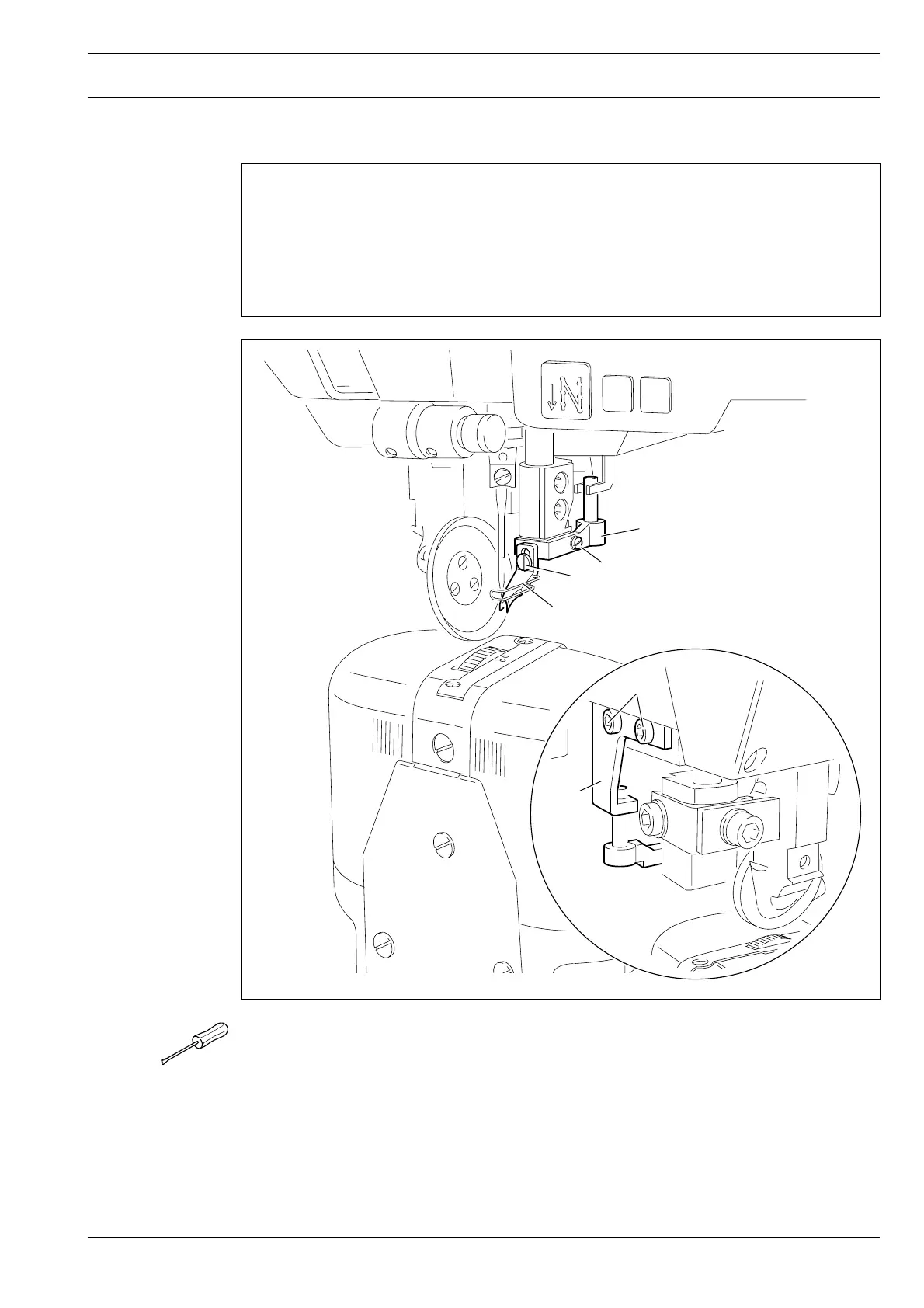

Fig. 13 - 17
1
2
3
4
6
5
