Position of the thread catcher holder
Requirement
1. There should be a minimum amount of play between toothed wheel 3 and toothed
segment 4.
2. Both in the neutral position and the foremost position of the catcher, the distance
between the toothed segment 4 and the outer edge of the thread catcher holder 1
should be the same (see arrow).

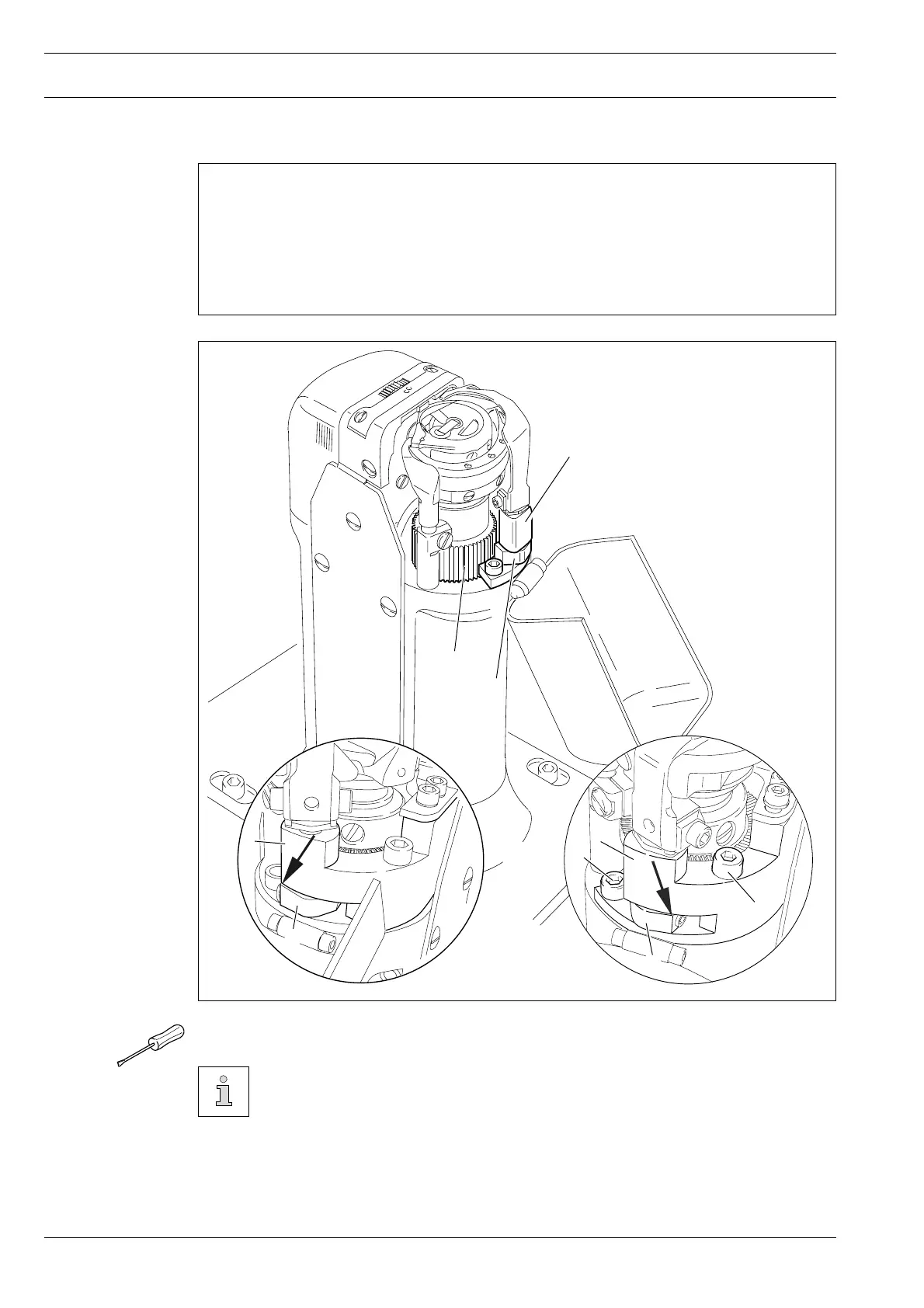

Fig. 13 - 40
● Adjust the thread catcher holder 1 (screws 2) according to the requirements.
If requirement 2 cannot be fulfilled, loosen screw 2 and move the toothed
segment 4 by one tooth.
