12 - 4
Care and maintenance
Switch the machine off!
Danger of injury if the machine is started accidentally!
All bevel gears must be supplied with new grease once a year.
Tilt the sewing head back onto the support.

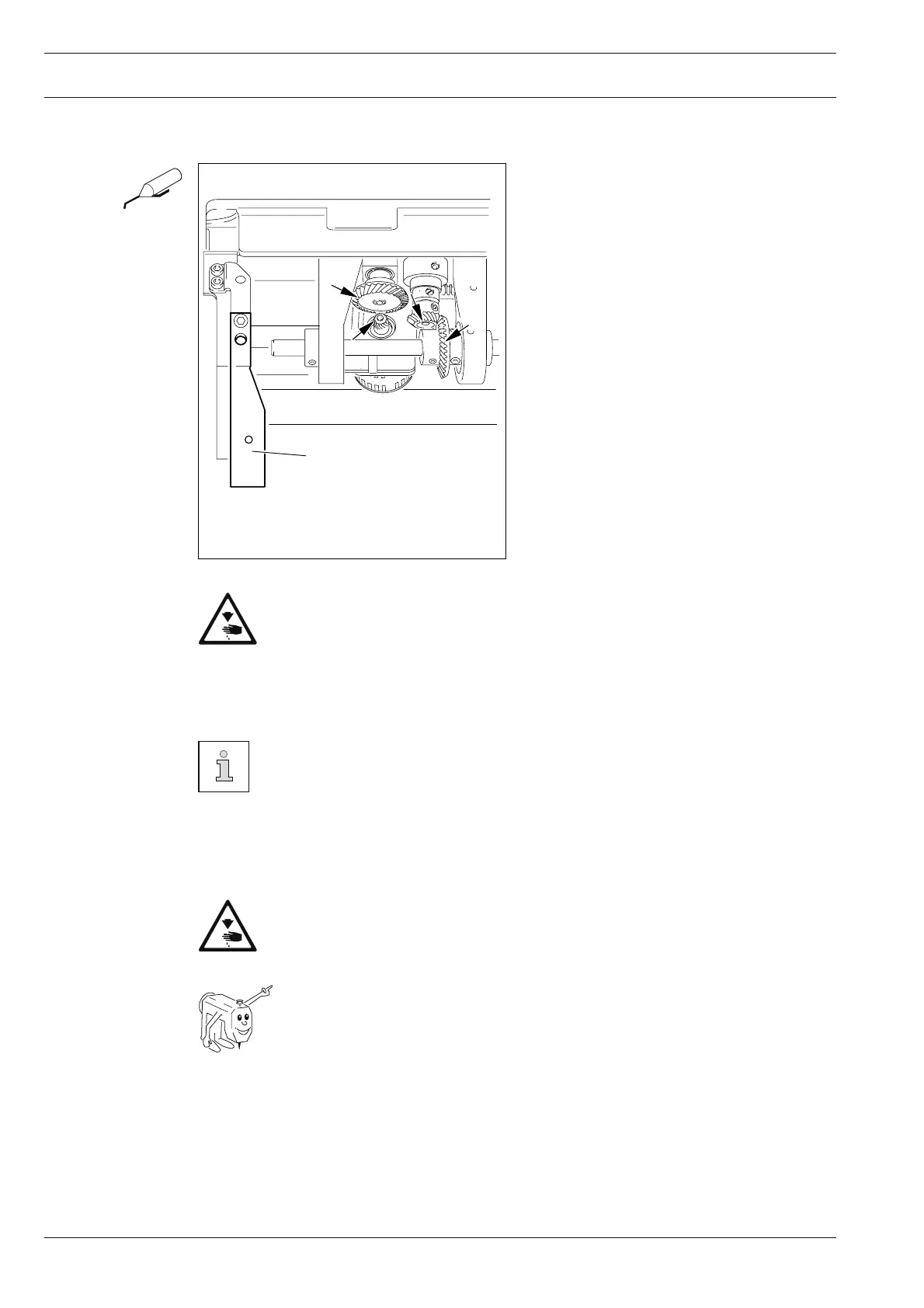

Fig. 12-06 shows the bevel gears of the 1591.
Apply grease to all the tooth flanks and the rack (see arrows).
To set the sewing head upright, press tilt lock 1 backwards and set the sewing head
upright using both hands.
Use both hands to set the sewing head upright!
Danger of crushing between the sewing head and the table top!
We recommend PFAFF sodium grease with a dripping point of approx. 150C,
Order No. 280-1-120 243.
Fig. 12 - 06
12.06 Lubricating the bevel gears
63-012
