Pfaff 1571 - Bobbin Threading and Tensioning

9 - 3
Setting up
86-002

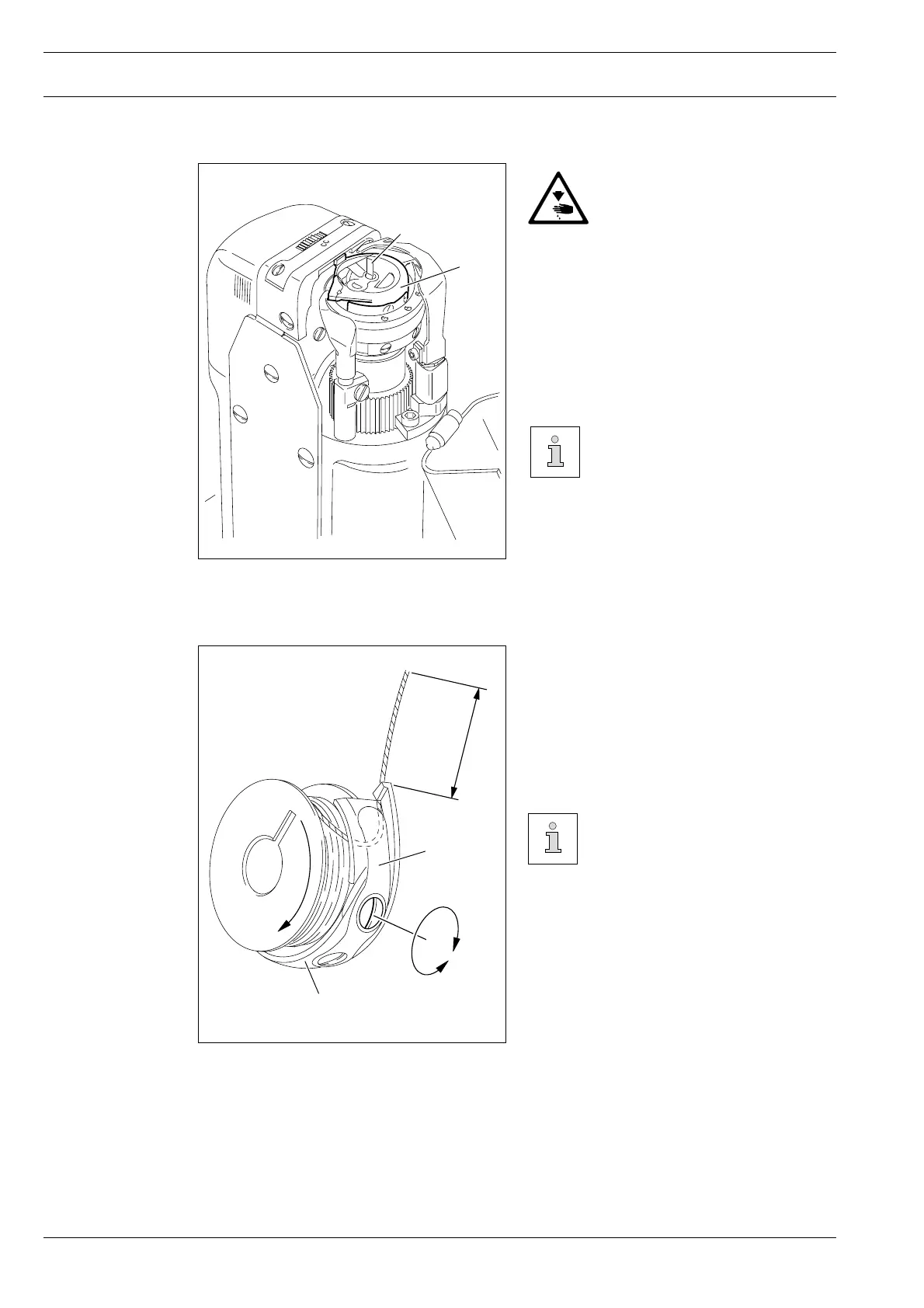

Fig. 9 - 04
Fig. 9 - 05
1
2
2
3
-
+
1
5 cm
9.04 Removing/Inserting the bobbin case
Switch the machine off!
Danger of injury if the machine
is started accidentally!
Removing the bobbin case:
● Open the post cap.
● Raise latch 1 and remove bobbin case 2.
Inserting the bobbin case:
● Insert bobbin case 2.
● Close the latch and close the post cap.
1574 is shown in Fig. 9 - 04.
9.05 Threading the bobbin case/Adjusting the bobbin thread tension
● Insert the bobbin into the bobbin case 1.
● Pass the thread through the slot under
spring 2.
● Pass the thread through the notch.
● Adjust the thread tension by turning
screw 3.
When the thread is pulled, the
bobbin must rotate in the
direction of the arrow.
