13 - 22
Adjustment
13.04.18 Automatic presser-foot lifter
Requirement
When solenoid 1 is activated, lever 3 for the roller-presser must drop automatically.
1
2

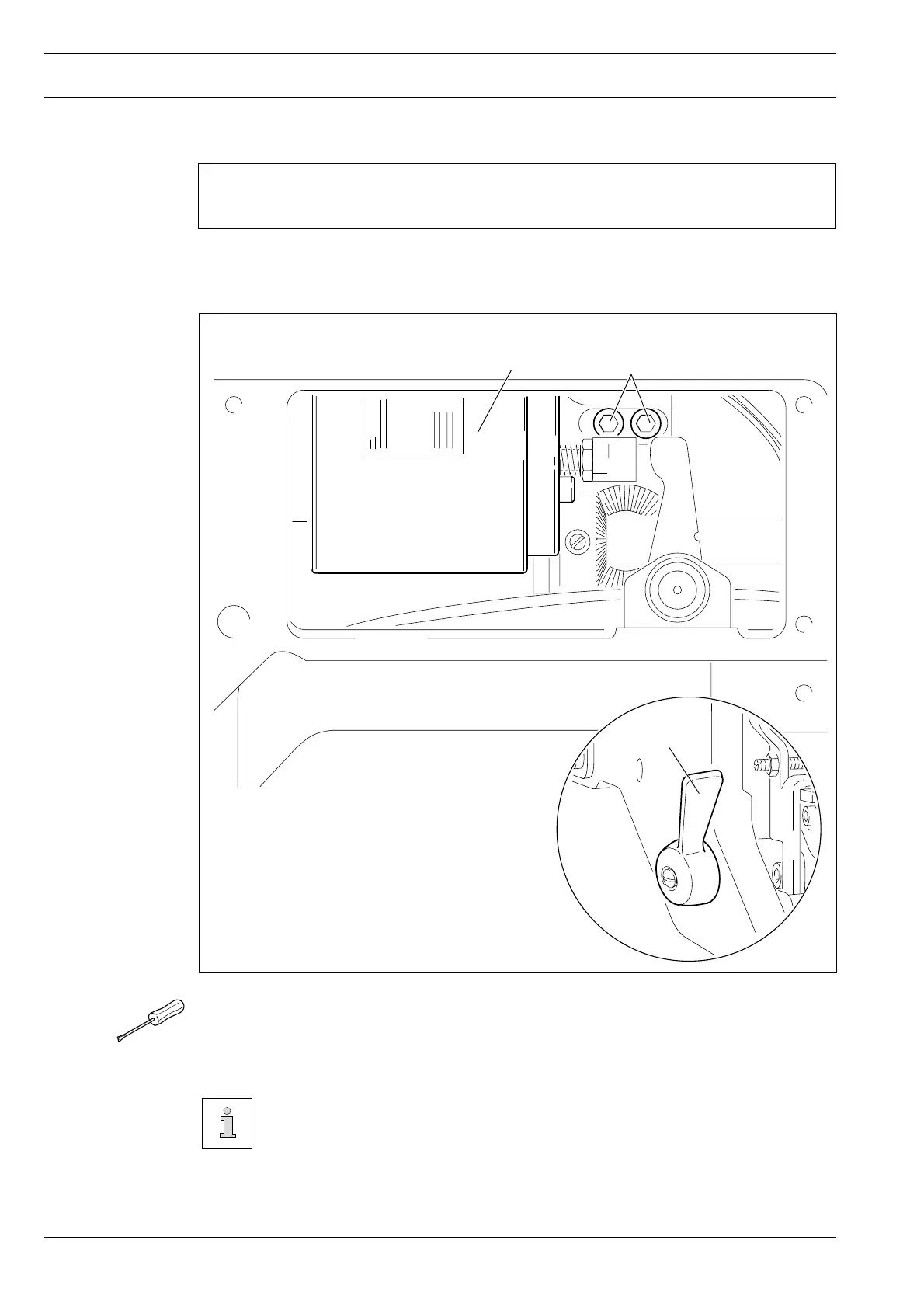

Fig. 13 - 18
● Move solenoid 1 ( screws 2 ) in accordance with the requirement.
● Turn the machine on and check the requirement.
● Turn the machine off.
Depending on the thickness of the material, the clearance between the roller-
presser and the feed wheel can be increased to a maximum of 10 mm by
moving the solenoid 1 to the right.
